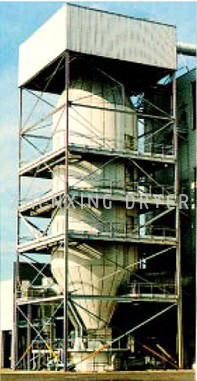

Electricity, Steam Pressure Type Spray Dryer Equipment Heat Sensitive Material Dryer For Sugar, Corn Syrup, Corn Starch
Electricity, Steam Pressure Type Spray Dryer Equipment Heat Sensitive Material Dryer For Sugar, Corn Syrup, Corn Starch
Electricity, Steam Pressure Type Spray Dryer Equipment Heat Sensitive Material Dryer For Sugar, Corn Syrup, Corn Starch
Electricity, Steam Pressure Type Spray Dryer Equipment Heat Sensitive Material Dryer For Sugar, Corn Syrup, Corn Starch
Specifications
Place of Origin :
CHANGZHOU,CHINA
Brand Name :
ZHENGAN
Certification :
ISO
MOQ :
1 set
Price :
As per request model
Packaging Details :
Wooden case or loose cargo in container
Delivery Time :
7-30 days as per order quantity
Payment Terms :
T/T,L/C
Supply Ability :
1-1000 set
Description

Electricity, Steam Pressure Type Spray Dryer Equipment Heat Sensitive Material Dryer For Sugar, Corn Syrup, Corn Starch

Description:

The material is sprayed into fine mist by nozzle on the top of tower. Follow the heat wind, the material is dried.

The machine's characteristic is high collection rate, no stick onto the wall, energy saving, high efficiency,

especially applicable for heat sensitive material. It's widely used in food, dyestuff, chemical industry and so on.

Applications:

Food Industry:Fatty milk powder, protein, cocoa milk powder, subsitute milk powder ,egg white (yolk),

food and plant ,oats ,chicken juice, coffee ,instant dissoluble tea ,seasoning meat ,protein ,soybean ,

peanut protein , hydrolysate and so forth .Sugar ,corn syrup ,corn starch ,glucose .pectin ,malt sugar ,

sorbic acid potassium and etc.

Medicine: Traditional Chinese medicine extract ,ointment ,yeast, vitamin ,antibiotic, amylase ,lipase and etc .

Plastics and resin : AB, ABS emulsion, uric acid resin, phenolic aldehyde resin, urea-formaldehyde resin,

formaldehyde resin, polythene, poly-chloroprene and etc.

Detergent :common washing powder ,advanced washing powder ,soap powder ,soda ash ,emulsifier ,

brightening agent ,orthophosphoric acid and etc.

Chemical industry :Sodium fluoride (potassium ), alkaline dyestuff and pigment ,dyestuff intermediate,

Mn3O4, compound fertilizer ,formic silicic acid ,catalyst, sulphuric acid agent ,amino acid ,white carbon

and so on .

Ceramic : aluminium oxide ,ceramic tile material ,magnesium oxide ,talcum and so on .

Other : Calmogastrin, hime chloride , stearic acid agent and the cooling spray .

Specifications:

TECHNICAL PARAMETERS

spec

50

100

150

200

300

500

1000

Water evaporation

capacity Kg/h

50

100

150

200

300

500

1000

Overall

dimension(ф*H) mm

1600×8900

2000×11500

2400×13500

2800×14800

3200×15400

3800×18800

4600×22500

High-pressure

pump pressure Mpa

2-10

Power Kw

8.5

14

22

24

30

82

30

Inlet air

temperature ℃

300-350

product water

contents %

less than 5 percent, and 5 percent can be achieved.

collection rate %

>97

electric heater Kw

75

120

　150

When the temperature is lower then 200, the parameters should

be calculated according to the practical condition.

electricity + steam

Mpa+Kw

0.5+54

0.6+90

0.6+108

hot air furnace

Kcal/h

100000

150000

200000

300000

400000

500000

1200000
