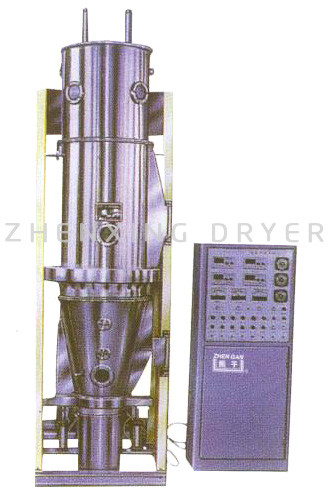

Integrated Spray Dryer Equipment And Fluid Granulating In A Body For Foodstuff PGL-200, 200kg/h, 24KW
Integrated Spray Dryer Equipment And Fluid Granulating In A Body For Foodstuff PGL-200, 200kg/h, 24KW
Integrated Spray Dryer Equipment And Fluid Granulating In A Body For Foodstuff PGL-200, 200kg/h, 24KW
Integrated Spray Dryer Equipment And Fluid Granulating In A Body For Foodstuff PGL-200, 200kg/h, 24KW
Specifications
Place of Origin :
CHANGZHOU,CHINA
Brand Name :
ZHENGAN
Certification :
ISO
MOQ :
1 set
Price :
As per request model
Packaging Details :
Wooden case or loose cargo in container
Delivery Time :
7-30 days as per order quantity
Payment Terms :
T/T,L/C
Supply Ability :
1-1000 set
Description

Integrated Spray Dryer Equipment And Fluid Granulating In A Body For Foodstuff PGL-200, 200kg/h, 24KW

Description:

1.Integrate spraying, drying/fluid granulating in a body and .realize granulating in one step.

2.Using the process of spraying, it is particularly suitable for micro auxiliary raw materials and

thermal sensitive raw materials. Its powder is 1-2 times that FL boiling granulating machine.

3.The final moisture of products can reach 0.1%.It is equipped twith powder returning device.

4.The rate of granulate forming is more than 95%, 0.2-2 mm of granule.

5.The improved inner roller multi-flow atomizing in design can treat the liquid extract with 1.3/cm3 of gravity.

Advantage:

1 Operation is simple and stable

2 control is simple and convenient

3 widely used

4 drying speed is fast

PGL-B atomizing dry granulator

Applications:

Pharmaceutical industry: tablet, capsule granule, granule of Chinese medicine with on or low sugar.

Foodstuff: cocoa, coffee, milk powder, juice of granule, flavoring and so on.

Other industries: pesticides, feed, chemical fertilizer, pigment, dyestuff and so on.

Specifications:

TECHNICAL PARAMETERS

Model

50

100

150

200

300

500

1000

water evaporation(kg/h)

50

100

150

200

300

500

1000

dimension(mm)ΦxH

1200x8900

1800x11500

2200x13500

2400x14800

2800x15400

3400x18800

4600x22500

power(KW)

8.5

14

22

24

30

40

82

Inlet temperature

(°C)

300-350

final moisture content(%)

<5(Min.0.5)

Product recovery rate(%)

>97

electric heater(KW)

75

120

steam+electricity(Mpa+KW)

0.5+54

0.6+90

0.6+108

airheater(Kcal/h)

150000

300000

300000

400000

600000

1000000

1500000
