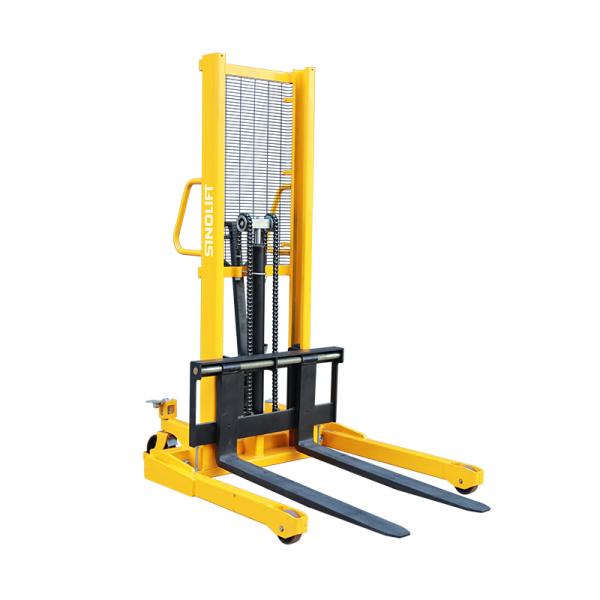

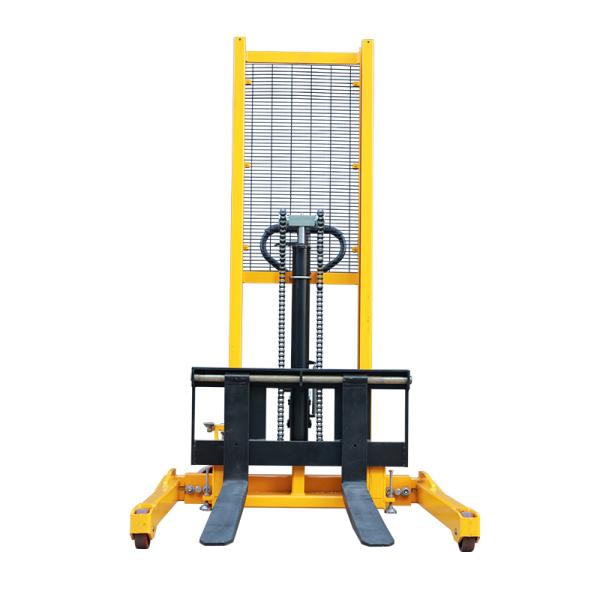

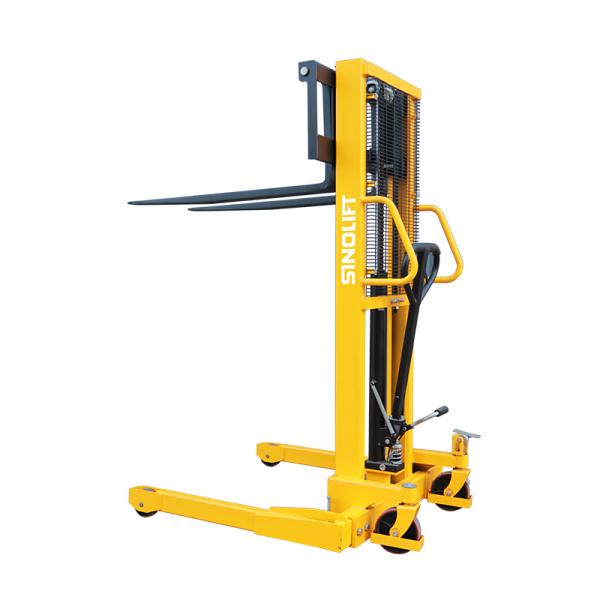

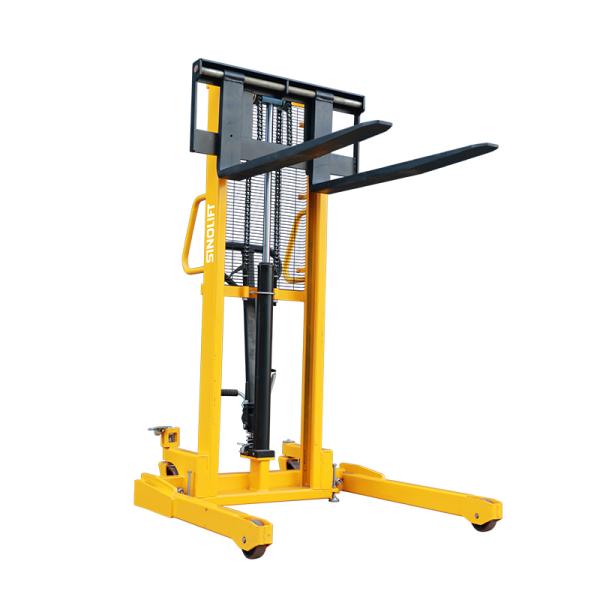

SFH22AG Manual Hydraulic Stacker with Adjustable Straddle Legs
SFH22AG Manual Hydraulic Stacker with Adjustable Straddle Legs
SFH22AG Manual Hydraulic Stacker with Adjustable Straddle Legs
SFH22AG Manual Hydraulic Stacker with Adjustable Straddle Legs
SFH22AG Manual Hydraulic Stacker with Adjustable Straddle Legs
SFH22AG Manual Hydraulic Stacker with Adjustable Straddle Legs
SFH22AG Manual Hydraulic Stacker with Adjustable Straddle Legs
SFH22AG Manual Hydraulic Stacker with Adjustable Straddle Legs
SFH22AG Manual Hydraulic Stacker with Adjustable Straddle Legs
SFH22AG Manual Hydraulic Stacker with Adjustable Straddle Legs
Specifications
Brand Name :
SINOLIFT
Model Number :
SFH22AG
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 sets/mouth
Delivery Time :
15 days
Packaging Details :
Sandard Export Package
Product name :
SFH22AG Manual Hydraulic Stacker with Adjustable Straddle Legs
Driving style :
Pedestrian
Load Capacity :
1000kg
Net weight :
386kg
Warranty :
1 year
After service :
on-line service,free spare parts
Description

Product Name

SFH22AG Manual Hydraulic Stacker with Adjustable Straddle Legs

This Manual Hydraulic Stacker delivers 1000 kg of robust lifting with a reinforced steel construction and export-grade durability. Its adjustable straddle legs adapt to diverse pallet types, while the compact design excels in narrow aisles and warehouses. Ideal for manufacturing, logistics, and storage facilities seeking efficient, space-saving material handling.

Key Features of SFH22AG Manual Hydraulic Stacker:

  • Heavy-Duty Construction: Built with 6-8mm reinforced steel and a straddle leg design for maximum stability and long-term durability under heavy loads.

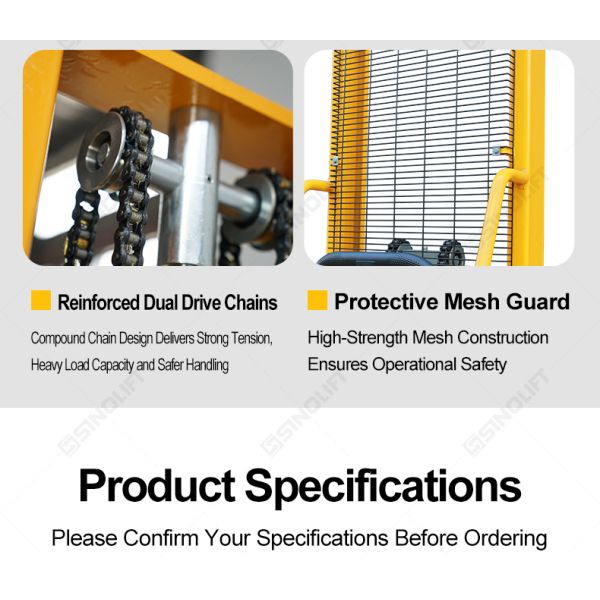

  • High Lifting Performance: Equipped with a sealed hydraulic cylinder and dual reinforcement chains, enabling smooth and reliable lifting up to 3 meters.
  • Excellent Adaptability: Features width-adjustable forged forks (215–850mm) compatible with various pallet types, including stringer, double-face, and nine-leg pallets.

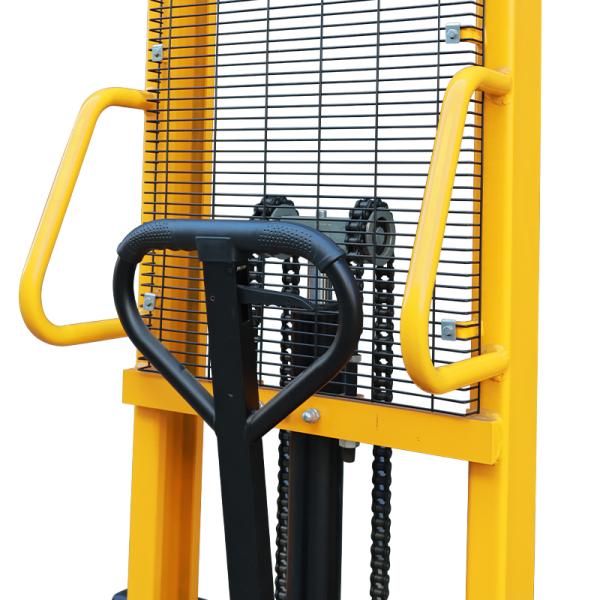

  • Operator-Friendly Design: Includes an ergonomic handle, foot pedal lifting, and PU swivel casters with a foot brake for effortless and safe operation.
  • Enhanced Safety: Designed with a protective mesh guard, anti-leak cylinder, and robust C-type steel mast to ensure safety in diverse working environments.

Product Specifications

SFH Series - Straddle Leg Stacker
Model SFH22-63 SFH22-98 SFH22-118
Load Capacity kg 1000 1000 1000
Load Center Distance mm 500 500 500
Max Lifting Height mm 1600 2500 3000
Mast Type 1 2 2
Lowered Height mm 70 70 70
Fork Length mm 920 920 920
Single Fork Width mm 100 100 100
Adjustable Fork Width mm 215~850 215~850 215~850
Inner Leg Width mm 915~1220 915~1220 915~1220
Outer Leg Width mm 1090~1370 1090~1370 1090~1370
Overall Length mm 1420 1420 1420
Overall Width mm 1370 1370 1370
Overall Height mm 2020 1770 2020
Front Wheels mm Φ125x50 Φ125x50 Φ125x50
Rear Wheels mm Φ180x50 Φ180x50 Φ180x50
Net Weight kg 320 360 386
