Specifications
Brand Name :
SINOLIFT
Model Number :
SH01
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 sets/mouth
Delivery Time :
15 days
Packaging Details :
Sandard Export Package
Product name :
SINOLIFT SH01 Smart Single Cantilever String Rod Loading Truck
Driving style :
Pedestrian
Rated Load :
500kg
Net weight :
230kg
Warranty :
1 year
After service :
on-line service,free spare parts
Description

Product Name

SINOLIFT SH01 Smart Single Cantilever String Rod Loading Truck

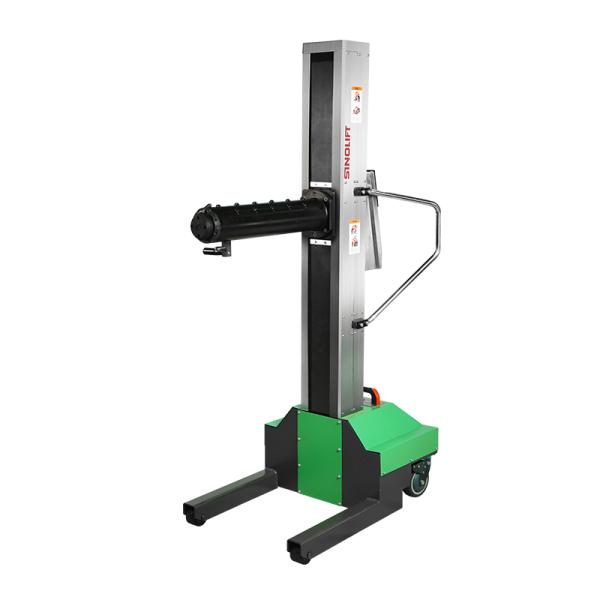

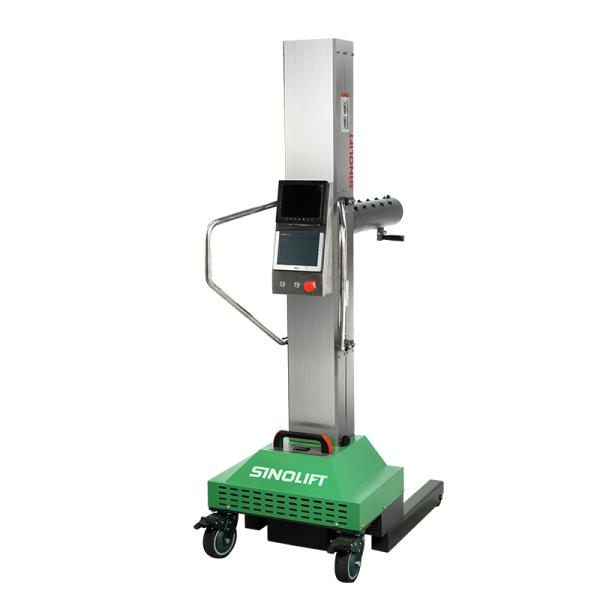

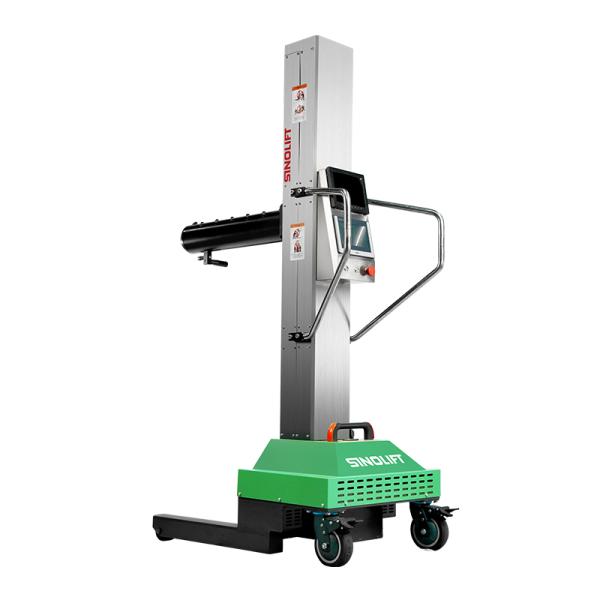

SINOLIFT SH01 Smart Single Cantilever String Rod Loading Truck is an automated guided vehicle (AGV) specifically designed for handling coil-type materials. Its core feature is a flexible lifting and movable single cantilever arm, along with a loading rod at the front end for carrying rolled materials. This equipment is engineered for efficient and precise transportation of coil-shaped loads—such as metal coils, paper rolls, or electrode rolls in the new energy industry—significantly enhancing logistics automation capabilities.

Key Features:

1. Smart & User-Friendly:

Electric lifting with manual fine-tuning and intuitive touchscreen control, supporting one-touch raising/lowering.

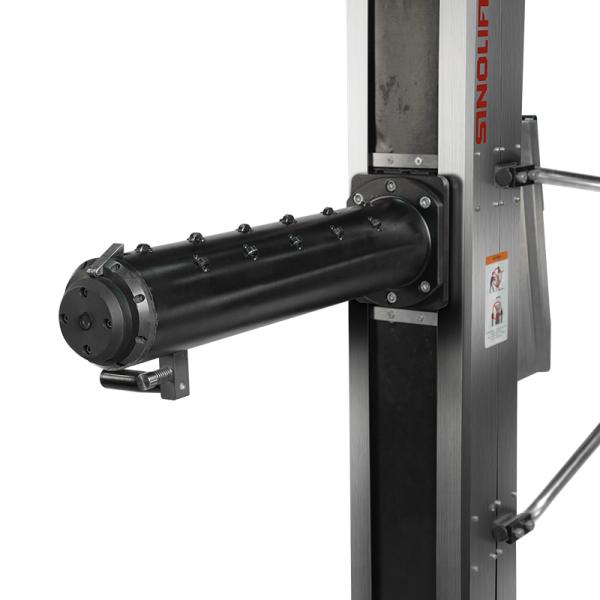

Quick-detachable loading rods to adapt to various roll inner diameters.

2. Safe & Reliable:

Four-wheel design (2 drive wheels + 2 swivel rear wheels with brakes) ensures a small turning radius for flexible movement in narrow workshops.

Stable chassis design with a low center of gravity and a wide base to minimize tipping risks.

3. Efficient Operation:

The electric pushing system operates at 25–30 mm/s, featuring a guide device at the rod tip for seamless roll alignment.

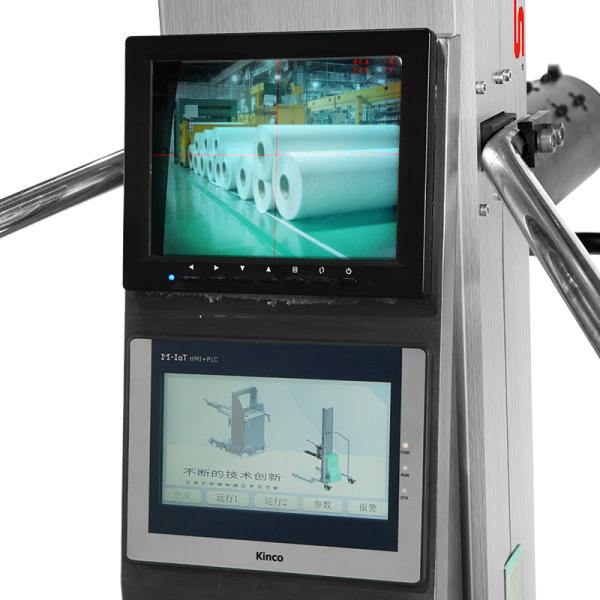

Intelligent control display enables auto-alignment and correction for precise positioning.

Product Specifications

Model SH01
Type Semi-Electric
Drive Method Ball Screw
Rated Load kg 500
Load Center mm 400
Min. Height mm 200
Max. Height mm 1600
Overall Length mm 1260
Overall Width mm 634
Overall Height mm 1965
Cantilever Specification mm 136×680
Front Wheel Specification mm Φ80x55-2
Rear Wheel Specification mm Φ150x50-2
Lifting Motor KW DC 0.75

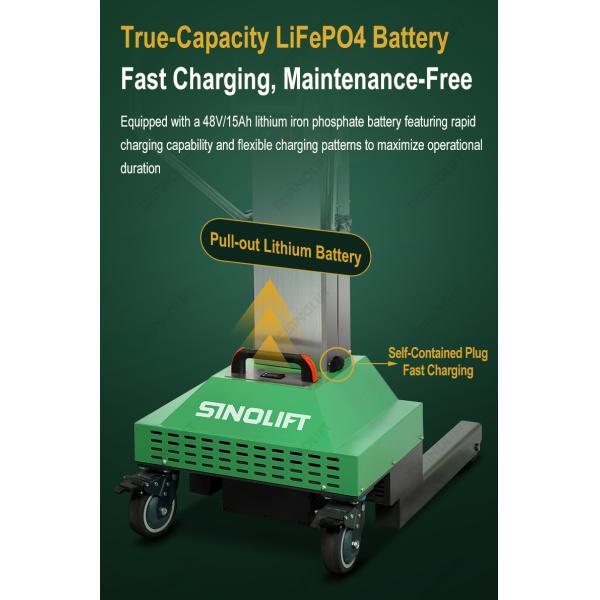

Battery specification V/Ah DC 48/15Ah
Min. Turning Radius mm 1060
Control Type PLC Control
Noise Level DB <70
Steering Type Mechanical
Braking System Dual Swivel AB Brake
Net Weight kg 230
