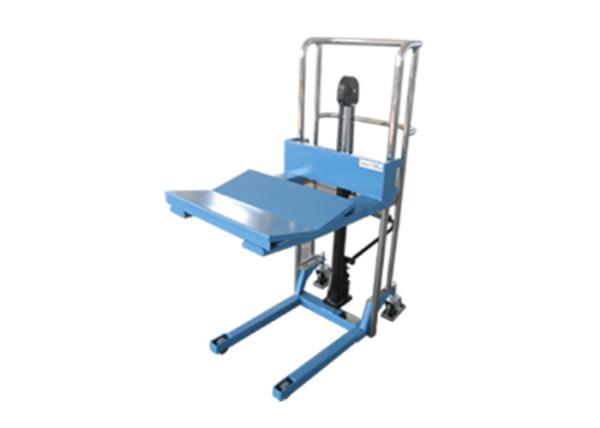

PFV V-shape Plate Handling Trolley Widely used with low leg and Optional Accessory Loading Capacity 400Kg
PFV V-shape Plate Handling Trolley Widely used with low leg and Optional Accessory Loading Capacity 400Kg
PFV V-shape Plate Handling Trolley Widely used with low leg and Optional Accessory Loading Capacity 400Kg
PFV V-shape Plate Handling Trolley Widely used with low leg and Optional Accessory Loading Capacity 400Kg
PFV V-shape Plate Handling Trolley Widely used with low leg and Optional Accessory Loading Capacity 400Kg
PFV V-shape Plate Handling Trolley Widely used with low leg and Optional Accessory Loading Capacity 400Kg
Specifications
Brand Name :
Sinolift
Model Number :
PFV
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
5000 Sets/mouth
Delivery Time :
15 days
Packaging Details :
Sandard Export Package
Product Name :
PFV V-shape Plate Handling Trolley Widely used with low leg and Optional Accessory Loading Capacity 400Kg
Load Capacity :
400kg
Max.Fork Height :
1800mm
Min.Fork Height :
85mm
Fork Size :
650X100mm
Fixed Fork Width :
550mm
Load Roller :
Ф75mm
Steering Wheel :
Ф125mm
Overall Dimension :
1080X560X1020mm
Net Weight :
55Kg
Warranty :
1 year
Description

Feature:

1.Robust construction.
2.Hard chromium plated frame.
3.Effortless Movement.
4.Polyurethane rollers with bearing
5.No-marking castor as standard.
6.Widely used with low leg and various accessories as option.
7.The V-Shaped plate is suitable for printing work, flexible package industry.
8.Conforms to EN 1757-1.

Specification:

Model (Fixed Fork) PF2085V PF2120V PF4085V PF4120V PF4150V PF4180V
Capacity (kg) 200 400
Max.Fork Height (mm) 850 1200 850 1200 1500 1800
Min.Fork Height (mm) 85 85
Fork Size LxW (mm) 600x100 650x100
Fixed Fork Width PF (mm) 500 550
Load Roller (mm) Ф75 Ф75
Steering Wheel (mm) Ф125 Ф125
Pump strokes to Max.Height 19 26 35 50 63 76
Battery (Ah/V) Dec-60 Dec-70
Overall Height (mm) 1080 1435 1060 1410 1710 1710
Overall Width (mm) 560 590
Overall Length PF/PJ(mm) 1020 1100
Net Weight PF (kg) 55 62 70 76 82 82
Option Platform LP10 LP20
