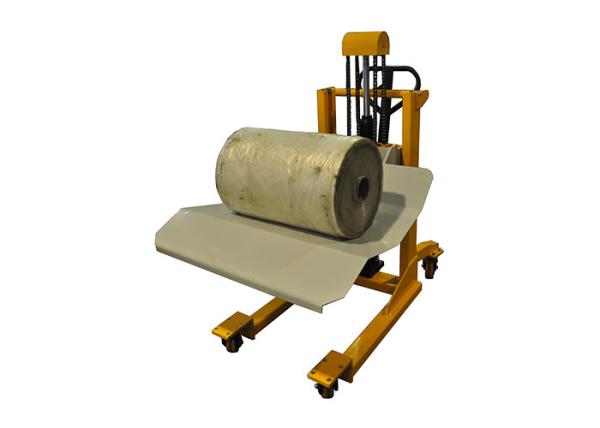

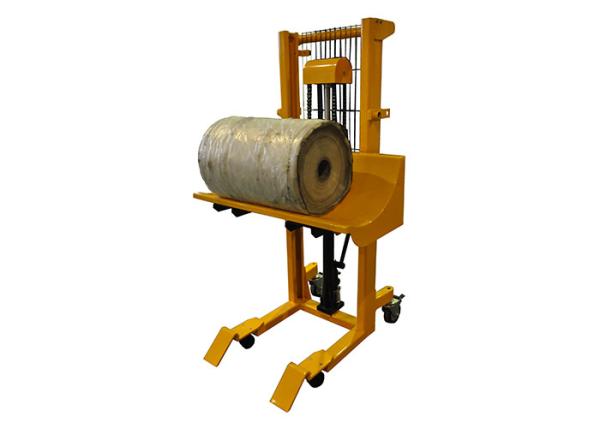

PFZ Arc Panel Roll Handling Trolley Loading Capacity 600kg
PFZ Arc Panel Roll Handling Trolley Loading Capacity 600kg
PFZ Arc Panel Roll Handling Trolley Loading Capacity 600kg
PFZ Arc Panel Roll Handling Trolley Loading Capacity 600kg
Specifications
Brand Name :
Sinolift
Model Number :
PFZ
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
5000 sets/mouth
Delivery Time :
15 days
Packaging Details :
Sandard Export Package
Product Name :
PFZ Arc Panel Roll Handling Trolley Loading Capacity 600kg
Operation Mode :
Manual
Capacity :
600Kg
Load Centre :
300mm
Max.Fork Height :
1200mm
Min.Fork Height :
90mm
Fork Size :
700X120mm
Front Wheel Diameter :
Φ80mm
Rear Wheel Diameter :
Φ150mm
Overall Size :
980X600X1500mm
Net Weight :
115Kg
Warranty :
1 year
Description

Feature:

▲Easy to operate lifts are available in steel or aluminum construction for long life.
▲Lift and transport loads from delivery trucks, to docks, maintenance work or use in inventory items.

Smooth rolling on 6" x 2" mold-on-rubber wheels on the back of the lift and 2" dia. semi-steel wheels, suffix (-FW). Four swivel front wheels and floor lock are standard on units with suffix (-4SFL). Wheels are also at the top of each truck to allow for easy accessibility into delivery trucks. Low Profile units have 1/4" thick platform with 2"H. side lips. Horizontal load center is 10". FOB Shipping Point.

Specification:

Model PFZ6150 PFZ8150
Max.Capacity kg 600 600
Operation mode Manual
Load Centre mm 300
Max.Fork Height mm 1200(1500)
Min.Fork Height mm 90(universal front wheel)
Fork Size(L×W) mm 700×120
Front Wheel Diameter mm Φ80 Φ80
Rear Wheel Diameter mm Φ150 Φ150
Overall Size(L×W×H) mm 980×600×1500 980×620×1580
Net Weight kg 115 128
