Specifications
Place of Origin :
Guangdong, China
Brand Name :
PandaRC
Product name :
VT5804 2.5W VTX
Function :
PAL ELRS IRC accessories
MOQ :
2 pieces
Price :
CN¥264.22/pieces 2-99 pieces
Description
Pandarc Vt5804bat 40CH Pandarc 2.5W 1.3W 25mW 400mW 800mW 1500mW 2500mW 7 Inch FPV Transmitter Long Range VTX Drone Rc Kits
1. With its own power self-check function
7: Working current: Less than or equal to 450mA@12V, 800mW
2. Frequency lock function
8:Less than or equal to 850mA@12V, 2500mW
3. It has 30.5*30.5 and 20*20 mounting holes
9:Output frequency: 40CH (A-B-E-F-R)
4. 0-2.5W power-adjustable

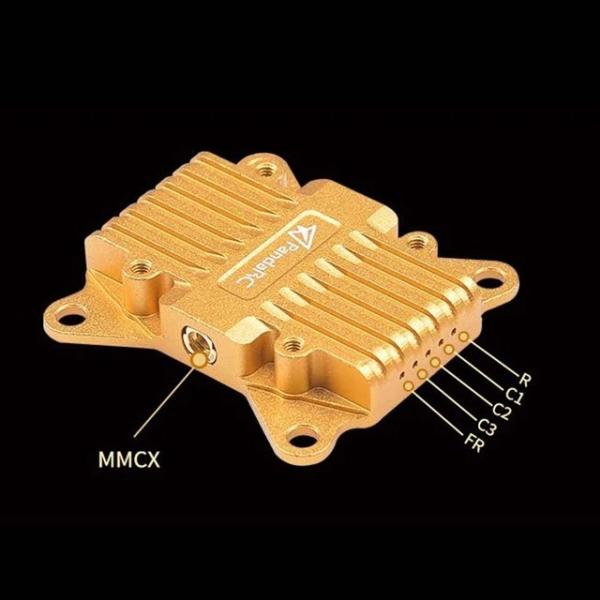

10:Antenna interface: MMCX
5:Output power: 0-25-400-800-1500-2500mW
11:Installation hole: 30.5*30.5mm-20*20mm
6:Input voltage: 6-36V
12:Video format: NTSC/PAL automatic detection
Pandarc Vt5804bat 40CH Pandarc 2.5W 1.3W 25mW 400mW 800mW 1500mW 2500mW 7 Inch FPV Transmitter Long Range VTX Drone Rc Kits
Features:
1. With its own power self-check function, you can quickly check whether the image transmission is working normally
2. Frequency lock function, no interference with companions when power on
3. It has 30.5*30.5 and 20*20 mounting holes at the same time to improve the compatibility of rack
4. 0-2.5W power-adjustable, allowing you to switch seamlessly in different environments
Pandarc Vt5804bat 40CH Pandarc 2.5W 1.3W 25mW 400mW 800mW 1500mW 2500mW 7 Inch FPV Transmitter Long Range VTX Drone Rc Kits
Pandarc Vt5804bat 40CH Pandarc 2.5W 1.3W 25mW 400mW 800mW 1500mW 2500mW 7 Inch FPV Transmitter Long Range VTX Drone Rc Kits
Pandarc Vt5804bat 40CH Pandarc 2.5W 1.3W 25mW 400mW 800mW 1500mW 2500mW 7 Inch FPV Transmitter Long Range VTX Drone Rc Kits
Frequency and Power Control Methods METHODS Adjust video transmission frequency and power by pressing the button Button frequency point control: short press the button once to switch 1CH-8CH cycle; button frequency group control: long press the button for 3 seconds, when the frequency group light RF flashes, other lights go out and enter the frequency group switching, short press the button again Switch frequency group A-R cycle; button power control: long press the button for 6 seconds, when the power light R flashes, other lights go out and enter the power adjustment, short press the button again to switch the power 0-2.5W cycle The bones are frequently displayed, the lining is sweeping the torch, and the torch is showing itself. Connect the RX white wire of the image transmission to the TX signal wire of the spare UART port of the flight controller;
Pandarc Vt5804bat 40CH Pandarc 2.5W 1.3W 25mW 400mW 800mW 1500mW 2500mW 7 Inch FPV Transmitter Long Range VTX Drone Rc Kits
Pandarc Vt5804bat 40CH Pandarc 2.5W 1.3W 25mW 400mW 800mW 1500mW 2500mW 7 Inch FPV Transmitter Long Range VTX Drone Rc Kits
