Specifications
Place of Origin :
Guangdong, China
Brand Name :
Flyingto
Weight :
32g
Color :
black
Product name :
video transimission
MOQ :
2 pieces
Price :
CN¥357.15/pieces 2-49 pieces
Description
BLITZ Whoop 5.8G 2.5W VTX with 40 Channels Output Power RC FPV Accessories New Video Transmission Security Protection Product
Specification
item
value
Input voltage
7V～34V
Interface
MMCX
Power levels
PIT/25mW/400mW/1000mW/2500mW
Channels
40 (including Raceband)
Mounting pattern
25.5x25.5mm/Φ1.6
Lightweight
32g (excluding antenna)
VTX telemetry
IRC Tramp
Betaflight IRC Tramp Configuration
Please download the attached VTX table for Betaflight
RC Tramp VTX table values
25mW/400mW/1000mW/2500mW
BLITZ Whoop 5.8G 2.5W VTX with 40 Channels Output Power RC FPV Accessories New Video Transmission Security Protection Product
BLITZ Whoop 5.8G 2.5W VTX with 40 Channels Output Power RC FPV Accessories New Video Transmission Security Protection Product

Features

Built-in microphone
4 Power levels up to 2500mW;
40 Channels (including Raceband)
Fast frequency lock, no startup interference with other pilots
Built-in output power self-check functionality
The CNC cooling casing, along with an integrated cooling fan, offers a dual heat dissipation effect.

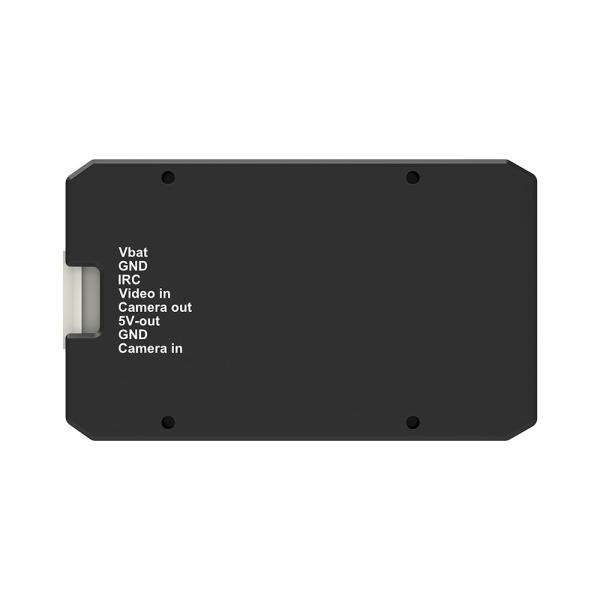

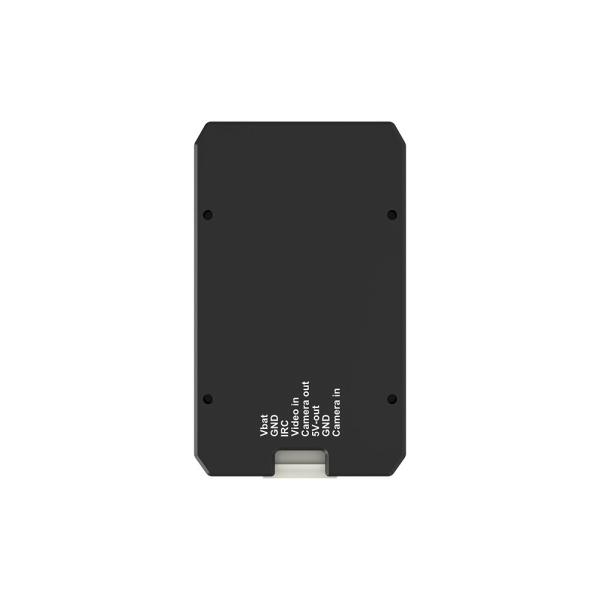

Ports

VBAT
2-8S，7-34V DC Positive Input
GND
Negative
5v out
5v Voltage Output
IRC
IRC Tramp Signal Input
GND
Negative
Video in
Video Signal Input
Camera in
Camera video Input
Camera out
Camera video output
BLITZ Whoop 5.8G 2.5W VTX with 40 Channels Output Power RC FPV Accessories New Video Transmission Security Protection Product
BLITZ Whoop 5.8G 2.5W VTX with 40 Channels Output Power RC FPV Accessories New Video Transmission Security Protection Product
BLITZ Whoop 5.8G 2.5W VTX with 40 Channels Output Power RC FPV Accessories New Video Transmission Security Protection Product

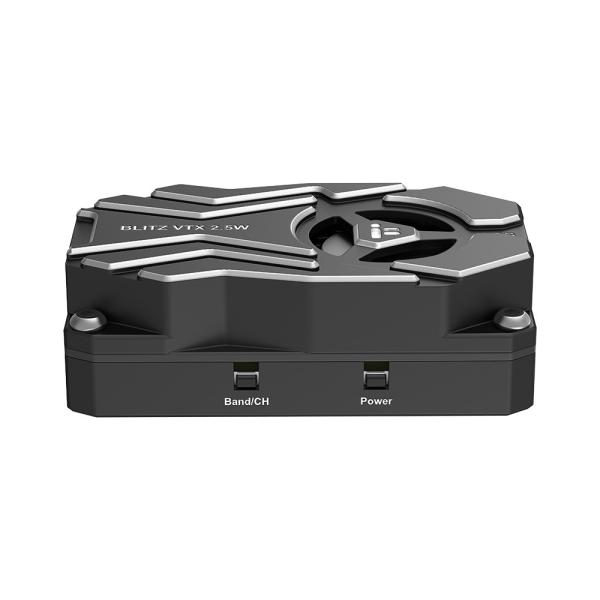

LED Indicator and Function Button

Power Button:
Press and hole for 2s: Enter or exit PIT mode, solid green light indicates entering PIT mode
Short press: Green light (output power): The number of LED flashing indicates the VTX output power. 1 flash=25mW, 2 flashes=400mW,3
flashes=1000mW, 4 flashes=2500mW. Short press to change output power.
Band and Channel Button
Press and hole for 2s: Red(BAND): The number of LED flashing indicates the BAND A-R. Press and hold for 2s to switch Band.
Short press: Blue(CH): The number of LED flashing indicate the channel 1 to 8. Short press to switch the Channel.

Attention

Please read the instructions for proper wiring before use.
It is recommended that before switching on the power, make sure that the antenna has been installed, it can extend the life of the module.
It is recommended to ensure the correct voltage range and the correct positive and negative polarity before switching on the power to avoid burning the components.
Please keep enough space when you install the VTX to ensure air convection around the module for heat dissipation. Otherwise, the module will enable overheat protection and the power transmission will be reduced or even switched off
