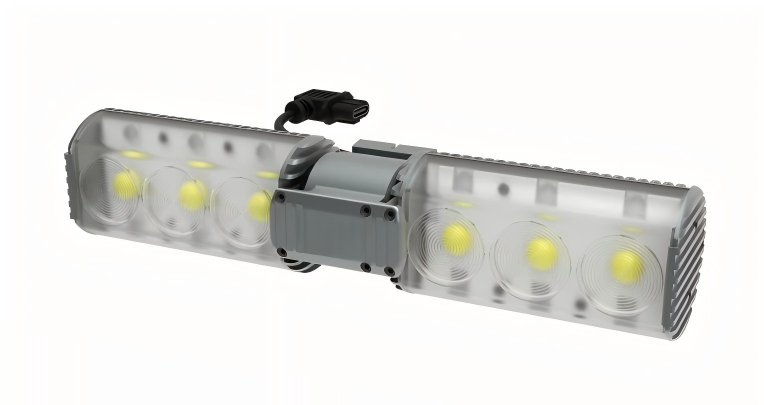

T80 Combined Searchlight with 80W High Power LED, 1-Axis Brushless Gimbal, and 12 RGB Strobe Lights for DJI M300/M350 RTK
T80 Combined Searchlight with 80W High Power LED, 1-Axis Brushless Gimbal, and 12 RGB Strobe Lights for DJI M300/M350 RTK
Specifications
Brand Name :
AOISUN
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T
Delivery Time :
2 weeks
Product Model :
T80 Combined Searchlight
Electrical Interface :
DJI SDK
Dimensions :
172 x 60 x 40 mm
Weight :
220g
Protection Rating :
IP4X
Compatible Models :
DJI M300 RTK, DJI M350 RTK
Maximum Power Consumption :
80W
80W :
6200 Im
Illumination Mode :
Combined Illumination (Brightness Adjustment, High-Light Strobe Supported)
Illumination Angle :
16°
Illumination Distance :
50m, 100m, 150m (≥150m total)
Illumination Area :
150m² (50m), 620m² (100m), 1400m² (150m)
Central Illuminance :
80Lux (50m), 20Lux (100m), 8Lux (150m)
Gimbal System :
1-Axis Brushless Gimbal (Light-Camera Dual Gimbal Linkage Supported)
Strobe Colors :
Red, Green, Blue, Yellow, White
Angle Jitter :
±0.1°
Pitch Angle Range :
-110° ~ +90°
Operating Temperature :
-10℃ to 50℃
Storage Temperature :
-20℃ to 60℃
Description
The T80 Combined Searchlight is a professional-grade UAV lighting accessory, featuring a 6-LED array design and 80W high-power white light illumination, delivering an effective lighting distance of over 150 meters. With a maximum luminous flux of 6200 lumens and 16° illumination angle, it provides exceptional brightness and coverage, meeting the demands of long-distance and high-brightness mission scenarios.
Equipped with a 1-axis brushless gimbal, the T80 supports dual gimbal linkage between light and camera, with a controllable pitch range of -110° to +90° and an angle jitter of only ±0.1°, ensuring ultra-stable illumination without jitter during UAV movement. It integrates 12 high-brightness RGB lamp beads, supporting multi-color strobe in red, green, blue, yellow, and white, along with multiple working modes such as brightness adjustment and high-light strobe. Specifically compatible with DJI M300 RTK and M350 RTK, the T80 boasts an IP4X protection rating and wide temperature adaptability, serving as a reliable solution for industrial inspection, emergency rescue, and public security patrol.

Key Features & Capabilities

  • High-Power LED Illumination: 6-LED array with 80W maximum power and 6200lm luminous flux; 16° angle, 3-level distances (50m/100m/150m) with 80Lux/20Lux/8Lux central illuminance, covering 150m²/620m²/1400m² areas.
  • Precise 1-Axis Brushless Gimbal: ±0.1° ultra-low angle jitter, -110° to +90° controllable pitch, supports light-camera dual gimbal linkage for stable illumination on dynamic targets.
  • Multi-Color RGB Strobe: 12 high-brightness RGB beads, supporting red/green/blue/yellow/white colors; multiple modes including high-light strobe for flexible warning and marking.
  • Versatile Working Modes: Adjustable brightness to adapt to different lighting needs; various operation modes switch seamlessly via control system, enhancing mission flexibility.
  • Professional Compatibility: Exclusively fits DJI M300 RTK and M350 RTK; DJI SDK interface ensures stable connection and integration with UAV control workflows.
  • Durable & Reliable: 220g weight balances performance and payload; IP4X dust-proof and splash-proof, operates at -10℃ to 50℃, suitable for harsh outdoor environments.

Applications

  • Long-Distance Industrial Inspection: 80W power and 150m+ illumination enable clear night inspection of high-voltage lines, wind turbines, and large bridges; 80Lux high illuminance at 50m captures fine defects, and stable gimbal ensures sharp imaging.
  • Emergency Rescue Missions: -110° to +90° gimbal range adjusts lighting flexibly for searching stranded individuals; multi-color strobe marks rescue zones and sends signals, while brightness adjustment adapts to night vision needs.
  • Public Security & Tactical Patrol: Suitable for large-area night patrols; high-light strobe deters potential threats, RGB colors distinguish different alert levels, and compatibility with M300/M350 RTK fits professional law enforcement workflows.
  • Large-Scale Infrastructure Maintenance: 1400m² wide illumination area covers tunnels, dams, and industrial plants; IP4X protection resists dust, ensuring reliability during prolonged outdoor maintenance.
  • Disaster Scene Response: Ultra-stable illumination supports post-disaster investigation and documentation; multi-color strobe marks safe zones, hazard areas, and rescue routes for efficient on-site coordination.
  • Maritime & Coastal Patrol: 80W high brightness penetrates low-light environments; stable gimbal compensates for UAV sway at sea, and strobe lights issue warnings to vessels or mark search areas.

Why Choose T80 Combined Searchlight?

The T80 Combined Searchlight stands out as a high-performance lighting solution for DJI M300/M350 RTK UAVs, integrating a 6-LED array, 80W power, and 1-axis brushless gimbal to deliver superior brightness and stability. Its ±0.1° ultra-low jitter and dual gimbal linkage outperform traditional gimbal systems, ensuring precise illumination for professional missions.
With 12 RGB strobe beads, multiple working modes, and wide compatibility, it adapts to diverse scenarios from inspection to rescue. The 220g lightweight design minimizes payload burden, while IP4X protection and wide temperature adaptability guarantee durability in harsh conditions. The T80 is an indispensable accessory that upgrades the night operational capabilities of professional UAVs, balancing power, stability, and versatility.
