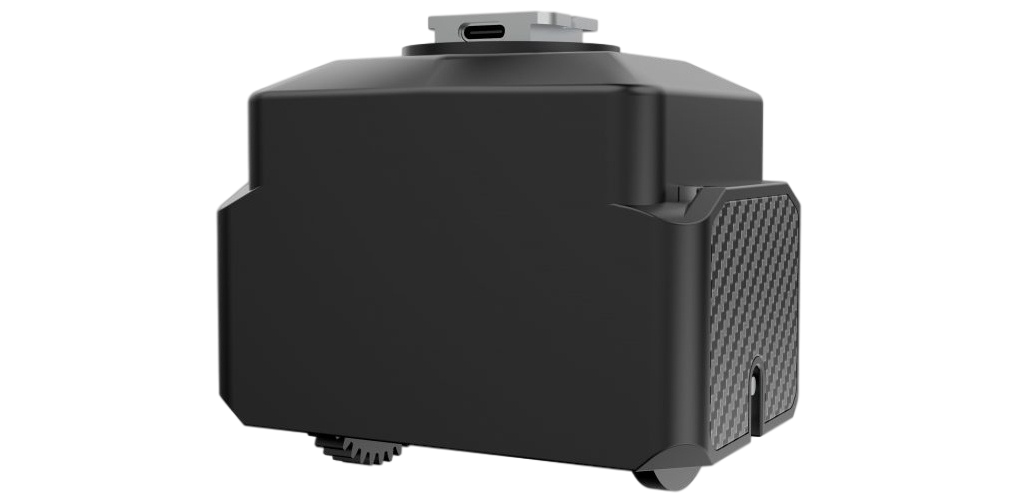

10W Drone Payload Drop Mechanism IP4X Drone Release And Drop Device With 10M Cable
10W Drone Payload Drop Mechanism IP4X Drone Release And Drop Device With 10M Cable
Specifications
Brand Name :
AOISUN
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T
Delivery Time :
2 week
Packaging Details :
case
Name :
Drone Payload Drop Mechanism
Electrical interface :
T-Port
Size :
88.8 x 88 x 70 mm
Weight :
230g
Degree protection :
IP4X
Power :
10W
Mount Hooks :
2
Max load weight :
5kg
Total weight :
10kg
Description
DJI Matrice 300 Drone Air Payload Drop Release System Hook With 10M Cable

The DJI M300 payload drop release mechanism is built on the DJI Onboard SDK, enabling precise payload airdrop control directly through DJI Pilot. Featuring a high-strength and lightweight quick-release mounting bracket, it integrates five independent release hooks, each with a maximum load capacity of 5kg.

Key Features:
  • DJI OSDK Integration – Seamless compatibility with the DJI Matrice 300 RTK, fully operated via DJI Pilot.
  • Lightweight & Durable Construction – Main body crafted from aviation-grade aluminum and carbon fiber, providing strong rigidity while maintaining easy assembly and disassembly.
  • Optimized Center of Gravity – Mounted at the center bottom of the drone to maintain flight balance and maximize operational stability and safety.
  • Fast & Secure Mounting Design – Sliding card slot combined with a spring-lock mechanism enables rapid installation. Simply push the spring lock to securely mount the dispenser with dual safety protection. To disassemble, press the spring lock and gently push to remove the unit.
  • Compatible with Non-DJI Multi-Rotor Drones – Can also be used on other multi-rotor platforms via PWM control.
10W Drone Payload Drop Mechanism IP4X Drone Release And Drop Device With 10M Cable
ProductsDJI Matrice 300 drone drop kits built in winch motor with 10M cable
Electrical interfaceT-Port
Size88.8 x 88 x 70 mm
Weight230g
Degree protectionIP4X
Supported modelsMatrice 300 RTK,Matrice 200 V2
Power10W
Mount Hooks2
Max load weight5kg
Total weight10kg
Delivery functionPoint release, one key full release
Installation modeQuick-release type
Cable length10M
Winch functionOne key take-up and release
Emergency dropOne-click discard
Working temperature-10 ℃ ~ 50 ℃
