Replaceable Sleeve Stabilizer Body Diameter 5 1/4 (in) Bottom Neck O.D 4 1/2 (in)
Replaceable Sleeve Stabilizer Body Diameter 5 1/4 (in) Bottom Neck O.D 4 1/2 (in)
Specifications
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
L/C,T/T
Supply Ability :
10 PIECES PER MONTH
Delivery Time :
10-15 WORK DAYS
Packaging Details :
WOODEN BOX
Sleeve Length :
24 in
Fishing Neck Range :
9 1/2 in
Bottom Neck O.D :
9 in
Overall Length :
20-28 in
Description

Replaceable Sleeve Stabilizer Body Diameter 5 1/4 (in) Bottom Neck O.D 4 1/2 (in)


Descriptions of Replaceable Sleeve Stabilizer Body Diameter 5 1/4 (in) Bottom Neck O.D 4 1/2 (in):

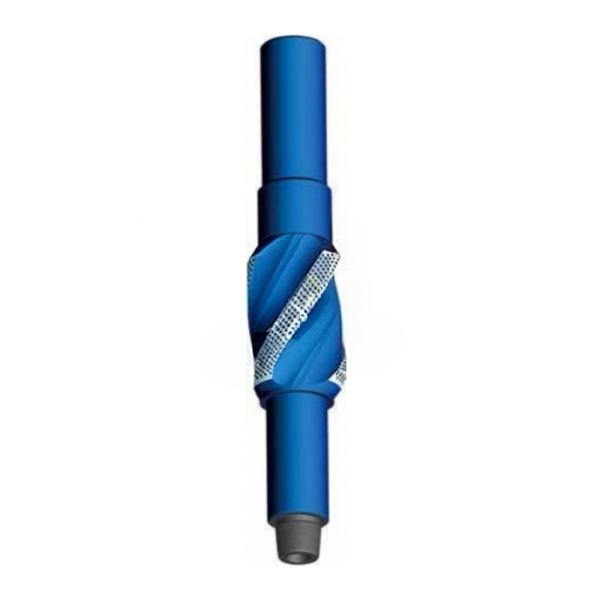

Replaceable sleeve stabilizer consists of an integral mandrel and a sleeve. One mandrel series can be equipped with different sizes of sleeve for several hole sizes. In order to match the drilling conditions, the sleeves can be easily changed on the rig floor during changing of hole size or wear surface.


Specifications:


Hole size (in) Mandrel Series Sleeve Body Connection
Body Diameter (in) Sleeve Length (in) Fishing Neck Range (in) pset O.D (in) Bottom Neck O.D (in) Overall Length (in) Fishing Neck Length (in)
6 41 5 1/4 10 4 3/4 5 1/8 4 1/2 20 48 NC38
8 1/2 62 7 1/2 19 6 3/4 7 1/2 6 1/4 22 65 NC50
12 1/4 77 9 1/2 20 8 9 1/4 7 3/4 22 70 6 5/8 REG
16 96 11 1/2 24 9 1/2 11 9 28 82 3/4 7 5/8 REG
17 1/2 96 11 1/2 24 9 1/2 11 9 28 82 3/4 7 5/8 REG
22 96 14 1/4 27 1/2 9 1/2 11 9 28 82 3/4 7 5/8 REG
24 96 14 1/4 27 1/2 9 1/2 11 9 28 82 3/4 7 5/8 REG
26 96 17 27 1/2 9 1/2 11 9 28 82 3/4 7 5/8 REG
28 96 17 1/4 27 1/2 9 1/2 11 9 28 82 3/4 7 5/8 REG
