Integral Blade Stabilizer Fishing Neck length 660-772 Mn Crown Length 254-508 Mm
Integral Blade Stabilizer Fishing Neck length 660-772 Mn Crown Length 254-508 Mm
Specifications
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
L/C,T/T
Supply Ability :
10 OIECES PER MONTH
Delivery Time :
10-15 WORK DAYS
Packaging Details :
WOODEN BOX
Fishing neck length :
660-772 mn
Crown length :
254-508 mm
String type :
1480-2610 mm
Near bit type :
1370-2460 mm
Description

Integral Blade Stabilizer Fishing neck length 660-772 mn Crown length 254-508 mm


Descriptions of Integral Blade Stabilizer Fishing neck length 660-772 mn Crown length 254-508 mm:

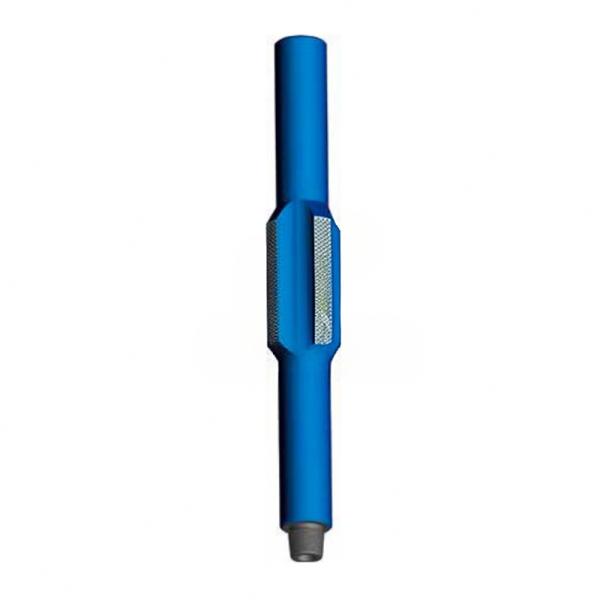

Integral Blade Stabilizer (IBS) is a one piece rotating stabilizer which can be placed near bit or higher in the drill string. It is a one piece construction manufactured from high strength alloy steel (non-magnet steel optional), that prevents differential sticking of the drillstring by stabilizing the BHA and keeping drill collars and drill pipes away from the borehole wall. This reduces vibration, drill pipe whirl, and wellbore tortuosity; furthermore, the stabilization maintains drilling trajectory whether drilling straight, horizontal, or directional wells.


Specifications:


OD stab Body OD mm ID mm Fishing neck length mn Crown length mm Blade taper angle Overall length Connection
in mm Top Bottom String type
(mm)		 Near bit type (mm) String type Near bit type lower box connection
3 3/4″ 95.3 79.4 31.8 660 254 30° 15° 1480 1370 NC23 23/8REG
4 1/2″ 114.3 88.9 38.1 660 254 30° 15° 1500 1400 NC26 23/8REG
6″ 152.4 120.7 50.8 762 305 30° 30° 1760 1600 NC38 31/2REG
7 1/2″ 190.5 165.1 71.4 762 406 30° 30° 1860 1700 NC46 41/2REG
8″ 203.2 171.5 71.4 762 406 30° 30° 1860 1700 NC50 41/2REG
8 1/2″ 215.9 171.5 71.4 762 406 30° 30° 1880 1730 NC50 41/2REG
9 1/2″ 241.3 171.5 71.4 762 406 30° 30° 1930 1780 NC50 41I2REG
12 1/4″ 311 203.2 71.4 762 457 30° 30° 2030 1880 65/8REG 65/8REG
14 3/4″ 374.7 203.2 71.4 762 457 30° 30° 2140 1990 65/8REG 65/8REG
16″ 406.4 241.3 76.2 762 508 30° 30° 2180 2030 75/8REG 75/8REG
17 1/2″ 444.5 241.3 76.2 762 508 30° 30° 2260 2110 75/8REG 75/8REG
20″ 508 241.3 76.2 762 508 30°/45° 30°/45° 2200 2050 75/8REG 75/8REG
22″ 558.8 241.3 76.2 762 508 30°/45° 30°/45° 2250 2100 75/8REG 75/8REG
24″ 609.6 241.3 76.2 762 508 30°/45° 30°/45° 2310 2160 75/8REG 75/8REG
26″ 660 241.3 76.2 762 508 30°/45° 30°/45° 2360 2210 75/8REG 75/8REG
28″ 711 241.3 76.2 762 508 30°/45° 30°/45° 2410 2260 75/8REG 75/8REG
30″ 762 241.3 76.2 762 508 30°/45° 30°/45° 2460 2310 75/8REG 75/8REG
32″ 812.8 241.3 76.2 762 508 30°/45° 30°/45° 2510 2360 75/8REG 75/8REG
34″ 863.6 241.3 76.2 762 508 30°/45° 30°/45° 2560 2410 75/8REG 75/8REG
36″ 914 241.3 76.2 762 508 30°/45° 30°/45° 2610 2460 75/8REG 75/8REG
