IBOP Drilling BOP 35 Mpa Working Pressure 27 in OAL
IBOP Drilling BOP 35 Mpa Working Pressure 27 in OAL
Specifications
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
L/C,T/T
Supply Ability :
10 PIECES PER MOMTH
Delivery Time :
10-15 WORK DAYS
Packaging Details :
WOODEN BOX
O.D. :
3-1/2 in
I.D. :
1-1/4 in
OAL :
27 in
Working pressure :
35 Mpa
Description

IBOP Working pressure 70 (35) (Mpa) OAL mm 711 (28) (inch)


Descriptions of IBOP Working pressure 70 (35) (Mpa) OAL mm 711 (28) (inch):

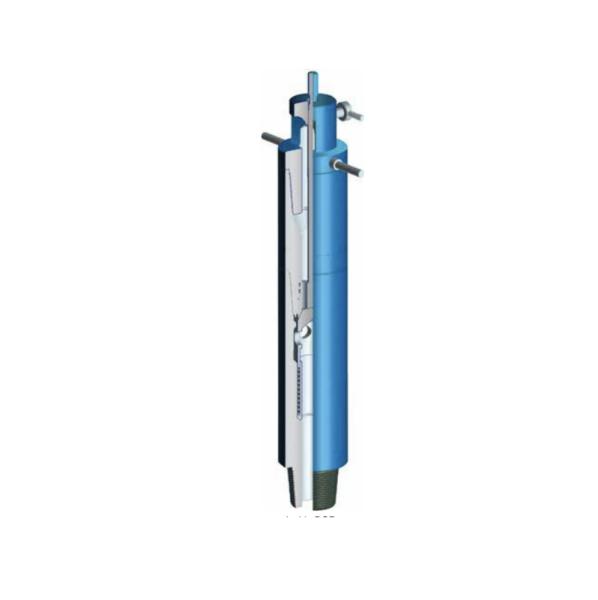

The IBOP is a non-return valve (check valve), also called Gray Valve or BVR, is a back pressure valve used in the drill string to prevent the well from flowing uncontrollably up the drill string. When the blowout occurs during lifting operations, the IBOP have many advantages in situation such as, high pressure rating, reliable seal, easy application and operation.

When the drill tool is lifted out of the hole, a blowout could happen due to suction. In event of a blowout, the open position of the IBOP valve allows backflow, easing the installation process. Upon successful installation, the valve can be promptly closed with a relief rod to prevent further backflow. Fluid can then be pumped in from the surface to discharge the IBOP and drill string. The purpose of blowout prevention can be achieved by the following generic steps: discharging the relief sub; regulation of fluid; commence pump circulation.


Specifications:


Thread connection O.D. mm(inch) I.D. mm(inch) OAL mm(inch) Working pressure (Mpa)
NC26 88.9 (3-1/2) 31.75 (1-1/4) 686 (27) 70 (35)
NC26 95 (3-3/4) 35 (1-3/8) 660 (26) 70 (35)
NC31 104.8 (4-1/8) 41.3 (1-5/8) 711 (28) 70 (35)
NC31 111 (4-3/8) 35 (1-3/8) 670 (26-3/8) 70 (35)
NC38 120.1 (4-3/4) 50 (2) 462 (30) 70 (35)
NC38 121 (4-3/4) 45 (1-49/64) 685 (26-31/32) 70 (35)
NC46 158.75 (6-1/4) 61.9 (2-7/16) 838 (33) 70 (35)
NC50 159 (6-1/4) 57.2 (2-1/4) 760 (29-59/64) 70 (35)
NC50 165 (6-1/2) 57.2 (2-1/4) 760 (29-59/64) 70 (35)
NC50 168.28 (6-5/8) 71.4 (2 13/16) 838 (33) 70 (35)
5 1/2FH 177.8 (7) 76.2 (3) 889 (35) 70 (35)
HT55 177.8 (7) 57.2 (2-1/4) 998 (38-57/64) 70 (35)
6-5/8REG 203.2 (8) 76.2 (3) 965 (38) 70 (35)
6-5/8REG 203.2 (8) 71.4 (2-13/16) 998 (38-57/64) 70 (35)
7-5/8REG 241(9-1/2) 71.4 (2-13/16) 998 (38-57/64) 70 (35)
7-5/8REG 241(9-1/2) 76.2 (3) 965 (38) 70 (35)
