Specifications
Place of Origin :
China
Material :
Carbon Steel,Stainless Steel,High Manganese Steel,alloy steel,
Packaging Details :
Wooden case
Payment Terms :
L/C,T/T
Advantage :
High Performance,Oil well milling tools,Wear Resistant,Safe and reliable working,drillability
MOQ :
1
Application :
mining,Oil,for oil well downhole tool,Oilfield Cementing Tools,Oil drilling rig parts
Certification :
API
Processing type :
Forging,Casting,Assemply,Other
Description

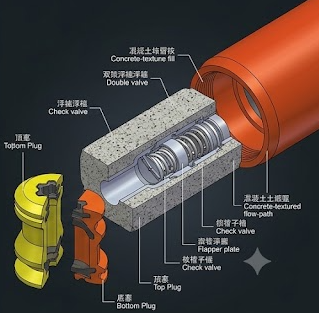

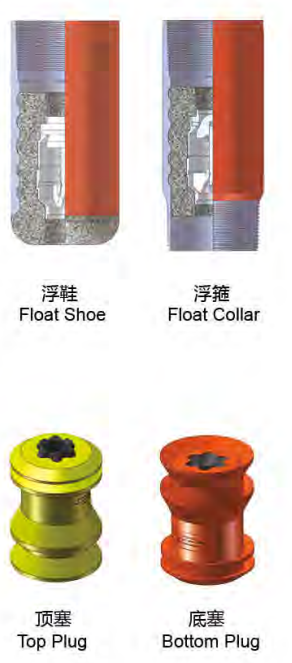

Downhole Tools Float Shoe, Float Collar & Cementing Plug with Anti-Rotation Flower Petal Structure

Float shoes and float collars feature high temperature resistance, excellent sealing properties, drillability, and easy connectivity, making them ideal replacements for guide shoes and casing shoes. These tools are suitable for general technical casing, oil-string casing, deep wells, ultra-deep wells, and special process wells.

Cementing plugs play a crucial role in isolating drilling fluid from cement paste and managing bump pressure during cementing operations. Available as top plugs and bottom plugs, both feature raised anti-rotation flower petal structures at the front end with corresponding concave flower petal structures. The bottom plug is distinguished by its inclusion of a blasting disc.

Float Shoe & Float Collar Specifications
Float Shoe Model Float Shoe OD mm (inch) Float Shoe OAL mm (inch) Float Collar Model Float Collar OD mm (inch) Float Collar OAL mm (inch) Casing Size (inch) Connection
FX4-1/2 127 (5) 370 (14-9/16) FG4-1/2 127 (5) 455 (17-29/32) 4-1/2 4-1/2 BTC
FX5 142.38 (5-39/64) 415 (16-11/32) FG5 142.38 (5-39/64) 500 (19-11/16) 5 5 BTC
FX5-1/2 154 (6-1/16) 400 (15-3/4) FG5-1/2 154 (6-1/16) 470 (18-1/2) 5-1/2 5-1/2 BTC
FX6-5/8 187.7 (7-25/64) 500 (19-11/16) FG6-5/8 187.7 (7-25/64) 550 (21-21/32) 6-5/8 6-5/8 BTC
FX7 194.5 (7-21/32) 535 (21-1/16) FG7 194.5 (7-21/32) 586 (23-1/16) 7 7 BTC
FX9-5/8 270 (10-5/8) 550 (21-21/32) FG9-5/8 270 (10-5/8) 720 (28-11/32) 9-5/8 9-5/8 BTC
FX13-3/8 365 (14-3/8) 550 (21-21/32) FG13-3/8 365 (14-3/8) 720 (28-11/32) 13-3/8 13-3/8 BTC
Cementing Plug Specifications
Top Plug Model Top Plug OD mm (inch) Bottom Plug Model Bottom Plug OD mm (inch) Casing Size (inch) Temperature (°C)
PGT7 170 (6-11/16) PGB7 170 (6-11/16) 7 120°C
PGT245 232 (9-1/8) PGB245 232 (9-1/8) 9-5/8 120°C
PGT339 325 (12-51/64) PGB339 325 (12-51/64) 13-3/8 120°C
Key Features
  • High temperature resistance for demanding well conditions
  • Superior sealing performance and drillability
  • Easy connection and installation
  • Anti-rotation flower petal structure for enhanced stability
  • Suitable for deep wells, ultra-deep wells, and special process applications
  • Bottom plugs include blasting disc for operational control
