Description

Advantages

It can realize special operations such as plugging without tripping out, shorten drilling cycle and reduce well control risk;

The bypass valve automatically closes when the pump stops, reducing the possible U-tube effect or well control problems;

It is not limited by downhole tools, instruments and bit waterholes, and can realize large displacement well flushing;

Effectively remove cuttings bed in directional and horizontal well sections;

Multiple downhole switching operations can be realized, and our products can be switched 6 times.

Application fields

1) High concentration and large particle plugging materials and cement squeezing plugging construction shall be carried out without tripping out;

2) Special construction of pumping other corrosive liquids;

3) High displacement well flushing in directional wells, horizontal wells and highly deviated wells;

4) Clean casing and BOP stack;

Basic structure

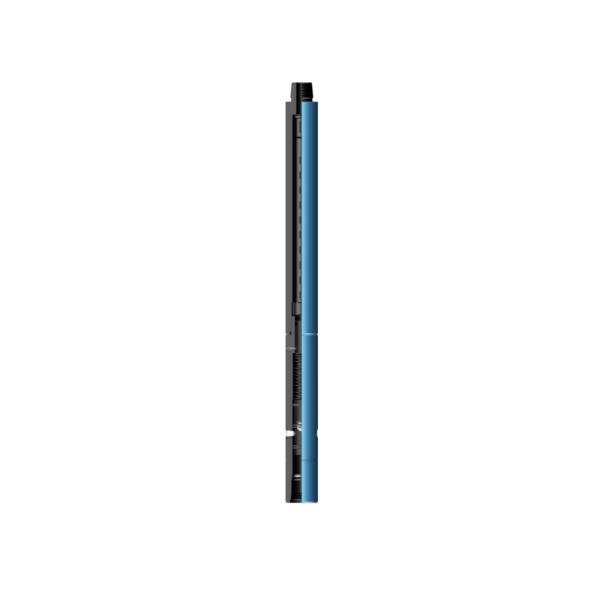

The multiple activation bypass valve is mainly composed of three parts: by-pass nipple, ball blue nipple and switch ball set. A switch ball group comprises an activation ball, two closing balls and a locking ball. The activation ball and locking ball are made of a new type of engineering plastics, and the closed ball is made of standard bearing steel ball.

Size(in) 4 3/4" 6 1/4" 6 1/2" 6 3/4" 8" 8 1/4" 9 1/2"
O.D.(mm) 121 159 165 172 203 210 241
I.D.(mm) 30 30 30 30 38 38 38
Connection NC38 NC46 NX50 NC50 6 5/8 REG 6 5/8 REG 7 5/8 REG
Diameter of by-pass port(mm) 28.2 28.2 28.2 28.2 34.35 34.35 34.35
Amount of by-pass port 2 2 2 2 2 2 2
Diameter of avtivationball(mm) 38.1 50.8 50.8 50.8 63.5 63.5 63.5
Amount of activation ball 6 6 6 6 6 6 6
Diameter of locking ball(mm) 28.6 28.6 28.6 28.6 35 35 35
Amount of locking ball 6 6 6 6 6 6 6
Diameter of closing ball(mm) 35 35 35 35 44.45 44.45 44.45
Amount of closing ball 12 12 12 12 12 12 12
Switching times 6 6 6 6 6 6 6
Total length(mm) 2033 2586 26.6 2586 2803 2803 2817
Total weight(kg) 124 292 308 345 514 565 791
Makeup Torque(KN-m) 13.5 30.4 40.2 43.8 62.9 62.9 107.8

Industrial Multiple Activation Bypass Valve for Optimal Performance
