30 Meter Impact Soil Sampling Drilling Rig For Small Scale Engineering Survey
30 Meter Impact Soil Sampling Drilling Rig For Small Scale Engineering Survey
30 Meter Impact Soil Sampling Drilling Rig For Small Scale Engineering Survey
30 Meter Impact Soil Sampling Drilling Rig For Small Scale Engineering Survey
Specifications
Brand Name :
JINZHOU SHITAN
Model Number :
ST30
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
1000-9000
Payment Terms :
T/T, Western Union
Supply Ability :
20000 sets per year
Delivery Time :
7-12 days
Packaging Details :
Standard Export Package
Product Name :
Soil Testing Drilling Rig
Drilling Depth :
30m
Drilling Diameter :
75-150mm
Power Type :
Diesel
Usage :
Soil Testing Drilling Rigs
Voltage :
380V
Power(W) :
18HP
Dimension(L*W*H) :
3.5m×1.7m×1.8m
Description

30 Meter Impact Soil Sampling Drilling Rig For Small-Scale Engineering Survey

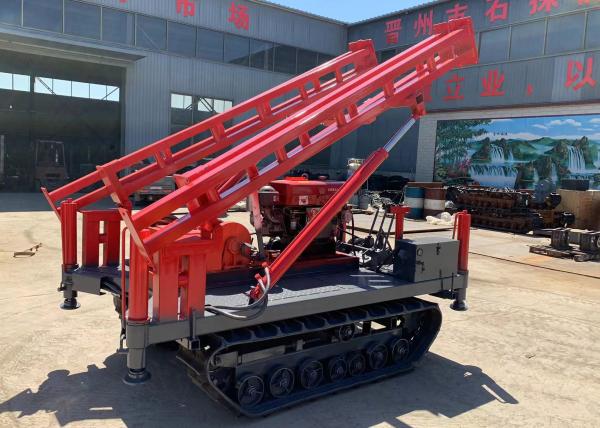

ST30 impact drill rubber track drilling rig

The type of engineering survey drilling rig has two drilling methods: impact drilling and rotary drilling. Therefore, the drilling tools of this drilling rig are divided into impact tools and rotary tools. To meet the personalized needs of customers, please equip them as needed when ordering. The standard configuration does not include rotary drilling function.

ST30 Borehole Drilling Machine Technical Data:

Technical Parameter Details
Drilling Diameter 42-146mm
Drill Depth 30m
Maximum Lifting Capacity 1500kg
Tower Height 6m
Average Speed of Winch 0.24m/s, 0.57m/s, 1.48m/s
Rotary Table Diameter 150mm
Rotary Speed 18r/min, 44r/min, 110r/min
Drilling Rig Diesel Engine Power 18HP
Weight 1.3T
Dimensions (Length×Width×Height) 3.5m×1.7m×1.8m

Performance characteristics

It can be applied to environmental monitoring and protection, and can use impact drilling and spiral drilling techniques to quickly obtain reliable underground information without damaging the underground soil structure. It is possible to obtain undisturbed soil samples from the surface to deep layers, and different drill rods and drilling tools can also be used to set up small-diameter groundwater observation wells. During the drilling process, mud and other cleaning media are not used, and the waste generated during drilling is 70% -80% less than conventional drilling. It has the characteristics of high construction efficiency, good fidelity of rock and soil samples, less environmental pollution, compact structure, good maneuverability, and construction safety.

30 Meter Impact Soil Sampling Drilling Rig For Small Scale Engineering Survey30 Meter Impact Soil Sampling Drilling Rig For Small Scale Engineering Survey

30 Meter Impact Soil Sampling Drilling Rig For Small Scale Engineering Survey30 Meter Impact Soil Sampling Drilling Rig For Small Scale Engineering Survey30 Meter Impact Soil Sampling Drilling Rig For Small Scale Engineering Survey30 Meter Impact Soil Sampling Drilling Rig For Small Scale Engineering Survey30 Meter Impact Soil Sampling Drilling Rig For Small Scale Engineering Survey​30 Meter Impact Soil Sampling Drilling Rig For Small Scale Engineering Survey
