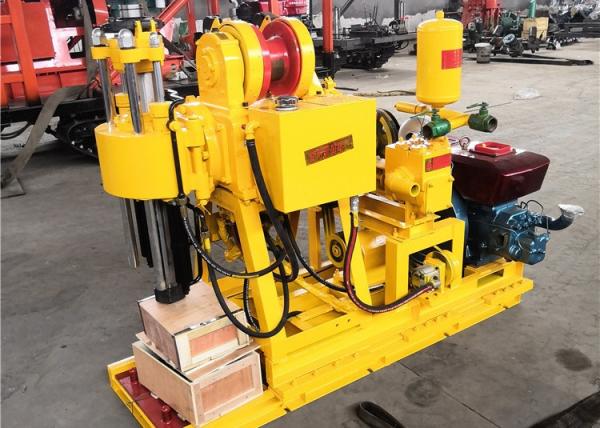

200 Meter Water Borehole Drilling Machine Used For Coal Mine Drilling
200 Meter Water Borehole Drilling Machine Used For Coal Mine Drilling
200 Meter Water Borehole Drilling Machine Used For Coal Mine Drilling
200 Meter Water Borehole Drilling Machine Used For Coal Mine Drilling
Specifications
Brand Name :
JINZHOU SHITAN
Model Number :
ST-200
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
2000 sets per year
Delivery Time :
7-12 days
Packaging Details :
Standard Export Package
Condition :
New
Type :
Core Drilling Rig
Drilling depth :
100-200 meter
Voltage :
220V/380V
Dimension(L*W*H) :
2220x900x1800mm
Weight :
1200kg without power unit
Engine :
Diesel / Motor
Drilling rod :
42/50 mm
Description
200 Meter Water Borehole Drilling Machine for Coal Mine Drilling
Product Specifications
Attribute Value
Condition New
Type Core Drilling Rig
Drilling depth 100-200 meter
Voltage 220V/380V
Dimension (L×W×H) 2220×900×1800mm
Weight 1200kg without power unit
Engine Diesel / Motor
Drilling rod 42/50 mm
Product Description

100-200 Meter Depth Soil Testing Drilling Rig for Borehole Sample Collection

Product Applications
  • Suitable for drilling in reconnaissance, geophysical exploration, road and building exploration, blasting holes and other drilling engineering
  • Coal mining exploration and core exploration
  • Small hole diameter or shallow depth water well drilling
  • Geothermal pipe-installing for heat pump
  • Small-diameter hole foundation piling drilling
  • Core drilling for soil sampling
Technical Parameters
Parameter Value
Drilling capacity (m)
AQ wire-line rod 560
BQ wire-line rod 350
NQ wire-line rod 250
42 rod 530
Spindle speed (r/min)
Forward 65;114;180;248;310;538;849;1172
Reverse 51;242
Max torque (Nm) 2760
Angle range 0-90°
Spindle max pull force (KN) 60
Spindle stroke (mm) 600
Hoist max life capacity with single rope (KN) 30
Spindle inner dia (mm) 76
Oil pump SCB32/12
Power unit
Electric motor Y180L-4,22Kw
Diesel engine 395K2,19.85Kw
Inner dia of spindle (mm) 2150×900×1690
Drill body weight (excluding power)(kg) 950

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180, ST-200, ST-260, ST-300, ST-350, ST-400, ST450, ST-450, ST-500, ST-600, ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B, GK180, GK200, GY150, GY200 and 30 impact drill rig, ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

OEM / ODM can accept. Good quality, professional after-sales service, welcome to order
