Specifications
Brand Name :
JINZHOU SHITAN
Model Number :
ST30
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
20000 sets per year
Delivery Time :
7-12 days
Packaging Details :
Standard Export Package
Product Name :
Soil Testing Drilling Rig
Drilling Depth :
30m
Drilling Diameter :
75-150mm
Type :
Borehole Drilling Machine
Power Type :
Diesel
Usage :
Soil Testing Drilling Rigs
Voltage :
380V
Power(W) :
18HP
Dimension(L*W*H) :
3.5m×1.7m×1.8m
Weight :
2.5T
Description

China Supplier Of Soil Testing Drilling Rigs For Environmental Sampling

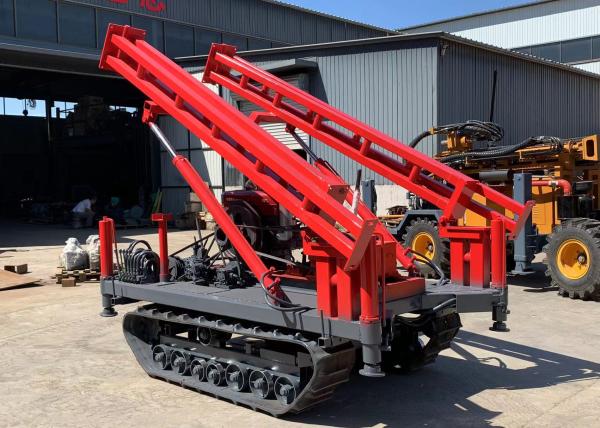

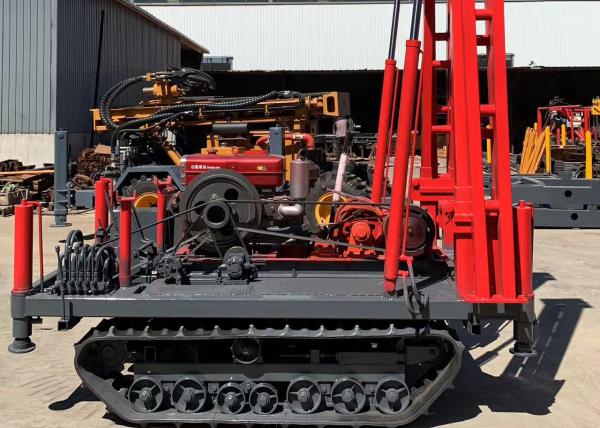

ST30 impact drill rubber track drilling rig

The ST30 impact drilling rubber track drilling rig is a drilling equipment that uses a rubber track walking mechanism and is widely used in mining, geological exploration, engineering construction and other fields. Compared to traditional steel tracked or wheeled drilling machines

ST30 Borehole Drilling Machine Technical Data:

Technical Parameter Details
Drilling Diameter 42-146mm
Drill Depth 30m
Maximum Lifting Capacity 1500kg
Tower Height 6m
Average Speed of Winch 0.24m/s, 0.57m/s, 1.48m/s
Rotary Table Diameter 150mm
Rotary Speed 18r/min, 44r/min, 110r/min
Drilling Rig Diesel Engine Power 18HP
Weight 1.3T
Dimensions (Length×Width×Height) 3.5m×1.7m×1.8m

Widely applicable scenarios


The comprehensive performance of rubber track drilling rig makes it suitable for various working conditions:

Mining: Blast hole drilling in open-pit mines, especially suitable for small and medium-sized mines with complex terrain.
Geological exploration: field geological drilling, hydrological survey, suitable for unpaved road surfaces such as mountains and jungles.
Engineering construction: urban engineering projects such as foundation pit support, slope anchoring, and advanced tunnel support, balancing efficiency and environmental protection.
Emergency rescue: Rapid drilling operations at disaster sites such as earthquakes and landslides, relying on flexible mobility to reach the disaster area.

FAQ

Q 1: What kind of drilling rig do you have?

A: We mainly produce small hydraulic drilling rig, water well drilling rig, core drilling rig, engineering drilling rig, geological exploration drilling rig, etc., and we will recommend the suitable model according to your exact requirement .

Q 2: Where is the address of your company?

A: Our factory is in Jinzhou, Shijiazhuang City, Hebei Province, China

Q 3: Are you a manufacturer or a trading company?

A:We are a 20 years professional manufacturer with ISO certificate. We have a large modern drilling rig plant in Hebei, China.

Q 4: How long is your delivery time?

A: Small hydraulic drilling rigs generally take 5-7 days, and large pneumatic water well drilling rigs generally take 7-15 days. If there is an urgent order, please contact our sales in advance.

Q 5: How long is the warranty of your well drilling rig?

A: Except for consumable spare parts, the whole machine shall be one year.

Q6: How long can your air compressor be used?

A: Normally more than 10 years.

Q 7: What are the terms of payment?

A: TT, Western Union transfer.

Q8, Can you provide us with the documents for customs clearance?

A: Of course. We will send you commercial invoice, sales contract, packing list, bill of lading (FOB or CFR, CIF terms), insurance policy (if CIF terms), and certificate of origin if you need it

Q9: How is your customer service?

A: 24-hour online service. The 48 hour problem was solved (except in special cases).

Q10: How about your after-sales service?

A: 1. Provide customers with online installation and commissioning instructions.

2. Well trained engineers can serve overseas. (non epidemic impact)
