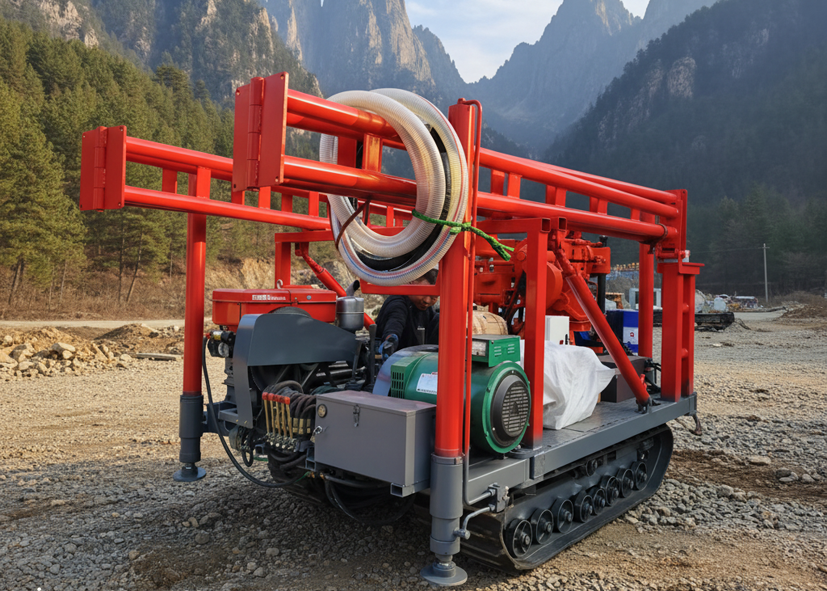

200 Meters Tracked Hydraulic Drilling Rig More Convenient Movement
200 Meters Tracked Hydraulic Drilling Rig More Convenient Movement
200 Meters Tracked Hydraulic Drilling Rig More Convenient Movement
200 Meters Tracked Hydraulic Drilling Rig More Convenient Movement
Specifications
Brand Name :
JINZHOU SHITAN
Model Number :
GK200
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T,Western Union
Supply Ability :
Negotiation
Delivery Time :
7-12 days
Packaging Details :
Standard Export Package
Product Name :
GK 200 Drilling Rigs
Keyword :
Geological exploration drilling rig
Drilling Diameter :
91mm,110mm,130mm,150mm,300mm
Drilling Depth :
200 meters
Spindle Speed :
115, 230, 505, 790, 1010 r/min
Diesel engine power model :
1115
TypeDrilling rig size :
1433*697*1273mm
weight :
980KG
Condition :
New
Warranty :
1 Year
Description
200 Meters Tracked Hydraulic Drilling Rig More Convenient Movement
Lightweight, fully hydraulic track-type core exploration equipment designed for 200-meter level geological sampling of medium and shallow holes. This rig balances maneuverability, reliability, and economy, making it widely suitable for engineering exploration, mineral surveys, and hydrogeological investigations.
Technical Specifications
Component Specification
Drilling Depth 200m
Drilling Diameter 75-300mm
Spindle Speed 115-1010 r/min
Diesel Engine 1115 Diesel Engine
Dimensions 1750×850×1300 mm
Weight 9800kg
Drilling Angle 90°-75°
Spindle Stroke 450mm
Spindle Diameter Φ59mmx53mmx4350mm Kelly rod
Spindle Pull-Down Max 15KN
Spindle Lifting Capacity Max 25KN
Vertical Maximum Output Torque 1.5KN.m
Max. Lifting Capacity (single rope) 20KN.m
Lifting Rotating Speed 20; 40; 90; 168r/min
Wire Rope Diameter 9.3mm
Key Features
  • Specialized for geological core drilling and exploration
  • Capable of small grouting, blast hole, and water well drilling
  • Hydraulic feeding mechanism improves efficiency and reduces labor intensity
  • Upper spherical jaw holding mechanism enables rod replacement without shutdown
  • Hole-bottom pressure gauge for precise operation control
  • Centralized controls for convenient operation
  • Compact structure with high mobility for various terrains
Performance Advantages
  • Strong terrain compatibility: Operates effectively in low-bearing ground conditions including swamps, paddy fields, wetlands, and deserts without sinking issues
  • Urban operation friendly: Free paving steel plates for urban/park operations with climbing capability up to 25-30° slopes and flexible in-place turning
  • Environmentally conscious: Significantly lower noise and vibration than steel tracks with minimal surface damage and reduced environmental compliance costs
  • Rapid deployment: Fast transition between sites, ideal for census projects with small hole spacing and frequent relocation requirements
  • Versatile coring capabilities: Supports diamond rope coring, impact rotation, and directional drilling with pressure/depressurization drilling suitable for soft-hard interlayers and fractured zones
Considerations
  • Heavy load capacity is optimized for medium and shallow holes (typically under 800m), not suitable for ultra-deep hole heavy-duty applications
  • Rubber tracks may be susceptible to damage from sharp rock/gravel pavement, requiring additional protection measures
  • Extreme high/low temperature environments necessitate weather-resistant rubber materials with slightly higher maintenance costs compared to steel tracks
Typical Applications
  • Urban engineering survey and geological sampling along roads, bridges, and subways
  • Hydrogeological and geothermal surveys in farmland and protected areas
  • General survey of medium and shallow pore metal/non-metal minerals (sand and gravel mines, shallow gold mines)
  • Emergency sampling in geological hazard areas including landslides and mudslides
  • Construction of encrypted holes and slope monitoring holes in small mining operations
Product Images
200 Meters Tracked Hydraulic Drilling Rig More Convenient Movement
200 Meters Tracked Hydraulic Drilling Rig More Convenient Movement
200 Meters Tracked Hydraulic Drilling Rig More Convenient Movement
200 Meters Tracked Hydraulic Drilling Rig More Convenient Movement
200 Meters Tracked Hydraulic Drilling Rig More Convenient Movement
200 Meters Tracked Hydraulic Drilling Rig More Convenient Movement
200 Meters Tracked Hydraulic Drilling Rig More Convenient Movement
