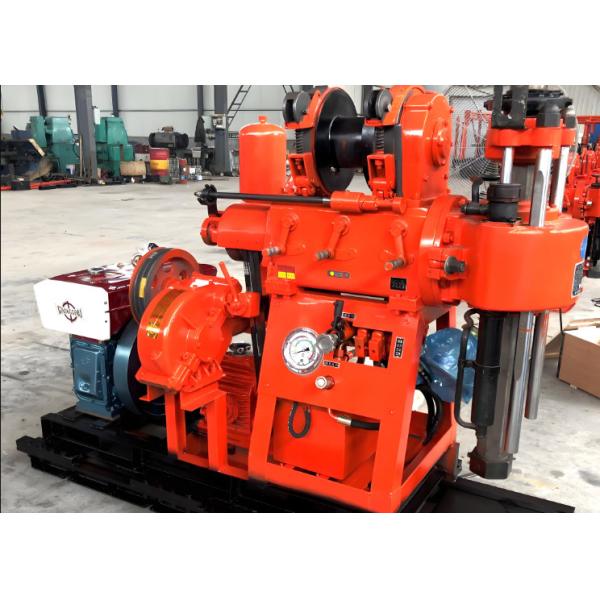

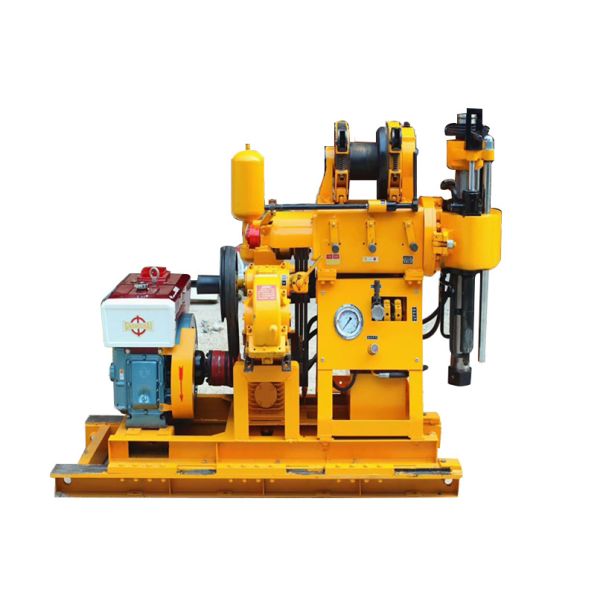

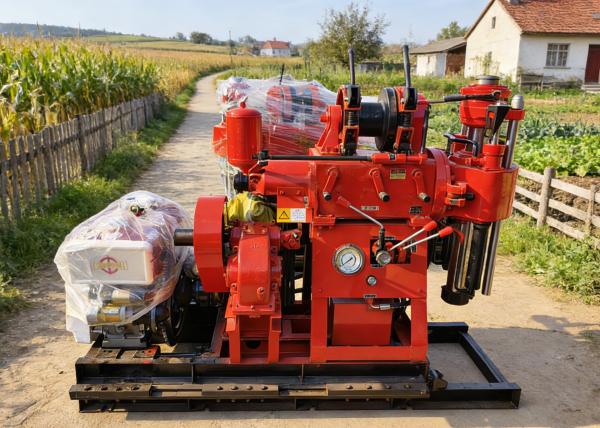

Geological Exploration GK 200 Drilling Rig With Fast Drilling Speed
Geological Exploration GK 200 Drilling Rig With Fast Drilling Speed
Geological Exploration GK 200 Drilling Rig With Fast Drilling Speed
Geological Exploration GK 200 Drilling Rig With Fast Drilling Speed
Specifications
Brand Name :
JINZHOU SHITAN
Model Number :
GK200
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T,Western Union
Supply Ability :
Negotiation
Delivery Time :
7-12 days
Packaging Details :
Standard Export Package
Product Name :
GK 200 Trailer Mounted Drilling Rigs
Keyword :
Geological exploration drilling rig
Drilling Diameter :
91mm,110mm,130mm,150mm,300mm
Drilling Depth :
200 meters
Diesel engine power :
Changchai 1115 diesel engine power
Spindle Speed :
115, 230, 505, 790, 1010 r/min
Drilling rod diameter :
50mm
Lifting rotating speed :
20; 40; 90; 168r/min
TypeDrilling rig size :
1433*697*1273mm
weight :
525KG
Description
GK200 Drilling Rig for Geological Exploration

The GK200 drilling rig delivers fast drilling speeds with exceptional maneuverability and high efficiency, specifically engineered for geological exploration and water well drilling up to 200 meters depth.

Product Overview

GK200 is a lightweight, hydraulic core drilling rig featuring compact structure and easy disassembly/assembly. Designed for optimal placement and rapid drilling in both mountainous terrain and construction sites.

Technical Specifications
Attribute Value
Product Name GK 200 Trailer Mounted Drilling Rigs
Drilling Diameter 91mm, 110mm, 130mm, 150mm, 300mm
Drilling Depth 200 meters
Diesel Engine Power Changchai 1115 diesel engine
Spindle Speed 115, 230, 505, 790, 1010 r/min
Drilling Rod Diameter 50mm
Lifting Rotating Speed 20; 40; 90; 168r/min
Drilling Rig Size 1433*697*1273mm
Weight 525KG
Swivel Head Specifications
Parameter Value
Spindle Speed 115, 230, 505, 790, 1010 r/min
Spindle Stroke 450mm
Spindle Diameter Φ59mmx53mmx4350mm Kelly rod
Upward Displacement Speed 0.05m/s
Downward Displacement Speed 0.067m/s
Spindle Pull-down Max 15KN
Spindle Lifting Capacity Max 25KN
Vertical Maximum Output Torque 1.5KN.m
Hoist Specifications
Parameter Value
Max. Lifting Capacity (single rope) 20KN.m
Lifting Rotating Speed 20; 40; 90; 168r/min
Hoisting Drum Linear Velocity (two levels) 0.17; 0.35; 0.73; 1.5m/s
Drum Diameter 140mm
Wire Rope Diameter 9.3mm
Wire Rope Capability 40m
Application Scope
  • Engineering Infrastructure: Geological survey, foundation reinforcement, oil and gas exploration
  • Livelihood Water Wells: Civilian well drilling, irrigation water wells, hydrological monitoring
  • Research & Environmental Protection: Geological research, soil remediation, groundwater monitoring
  • Mining Development: Mineral survey, mining construction, ventilation and water injection holes
Core Advantages
  • High Efficiency & Cost-Effective: 200-meter drilling depth covers mainstream scenarios with lower investment and faster payback
  • Flexible & Adaptable: Compact structure with modular design for easy transportation to challenging terrain
  • Intelligent Operation: Hydraulic feeding system with pressure gauge for easy operation and real-time monitoring
  • Multi-Purpose Capability: Suitable for water wells, geological coring, foundation reinforcement with diesel/electric dual power
Potential Limitations
  • Depth Limitations: Maximum 200-meter depth unsuitable for deep geothermal or mineral exploration beyond 300 meters
  • Large Diameter Constraints: Limited efficiency and torque for boreholes over Φ800mm compared to heavy-duty rigs
  • Outdoor Durability: May experience faster wear in extreme conditions or complex hard rock formations
Product Images
Geological Exploration GK 200 Drilling Rig With Fast Drilling Speed Geological Exploration GK 200 Drilling Rig With Fast Drilling Speed Geological Exploration GK 200 Drilling Rig With Fast Drilling Speed Geological Exploration GK 200 Drilling Rig With Fast Drilling Speed Geological Exploration GK 200 Drilling Rig With Fast Drilling Speed Geological Exploration GK 200 Drilling Rig With Fast Drilling Speed Geological Exploration GK 200 Drilling Rig With Fast Drilling Speed
