Diesel Hand Push Core Drilling Machine Motor Fully Hydraulic System For Asphalt Pavement Concrete
Diesel Hand Push Core Drilling Machine Motor Fully Hydraulic System For Asphalt Pavement Concrete
Diesel Hand Push Core Drilling Machine Motor Fully Hydraulic System For Asphalt Pavement Concrete
Diesel Hand Push Core Drilling Machine Motor Fully Hydraulic System For Asphalt Pavement Concrete
Specifications
Brand Name :
JINZHOU SHITAN
Model Number :
GK200
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T,Western Union
Supply Ability :
Negotiation
Delivery Time :
7-12 days
Packaging Details :
Standard Export Package
Product Name :
GK 200 Trailer Mounted Drilling Rigs
Keyword :
Geological exploration drilling rig
Drilling Diameter :
91mm,110mm,130mm,150mm,300mm
Drilling Depth :
200 meters
Diesel engine power :
1115 diesel
Spindle Speed :
115, 230, 505, 790, 1010 r/min
Drilling rod diameter :
50mm
Lifting rotating speed :
20; 40; 90; 168r/min
TypeDrilling rig size :
1433*697*1273mm
weight :
980KG
Description

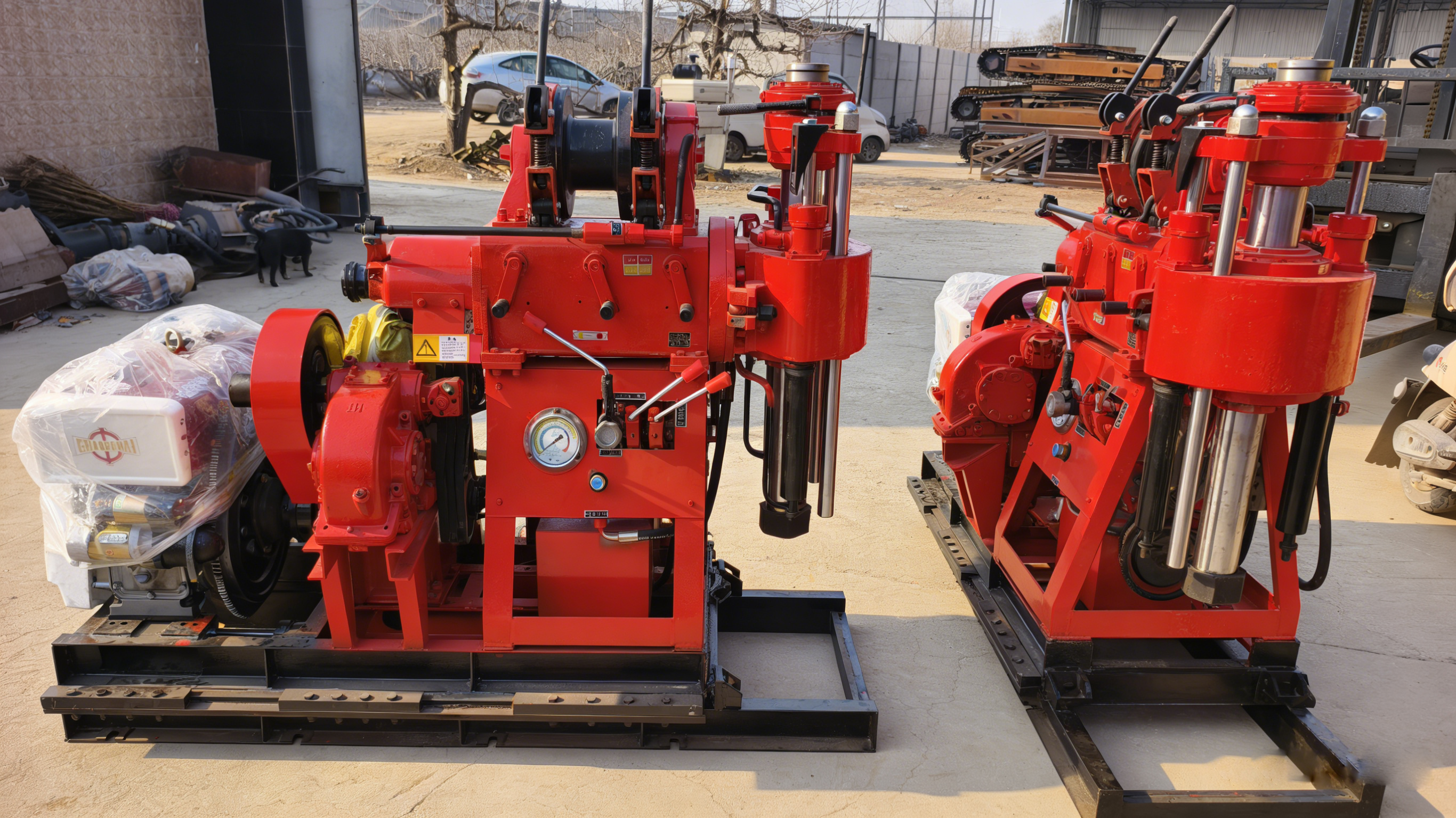

GK200 Hydraulic Core Drilling Rig
The GK200 geological exploration drilling rig is a lightweight, highly adaptable, and high-precision professional exploration equipment designed for shallow geological surveys, engineering exploration, and geothermal/water well exploration. Featuring fast disassembly, accurate precision, and high efficiency, it serves as the cost-effective first choice for field exploration teams.
Technical Specifications
Product Name GK 200 Trailer Mounted Drilling Rigs
Drilling Diameter 91mm, 110mm, 130mm, 150mm, 300mm
Drilling Depth 200 meters
Diesel Engine Power Changchai 1115 diesel engine
Spindle Speed 115, 230, 505, 790, 1010 r/min
Drilling Rod Diameter 50mm
Lifting Rotating Speed 20; 40; 90; 168r/min
Drilling Rig Size 1433*697*1273mm
Weight 980KG
Key Advantages
  • High Precision Coring: Customized drilling tool combinations and stable hydraulic feeding systems ensure undisturbed, unbroken core sampling with ≥95% columnar core integrity, meeting geological survey and mineral exploration requirements.
  • Modular & Lightweight Design: Disassembles into 6 core modules (≤70kg each) for quick transport by 2 explorers. Steel track chassis with low grounding ratio enables easy navigation through mountainous, swampy, and Gobi terrains.
  • Dual Power Adaptation: Diesel/electric dual power options available - diesel for remote areas without electricity, electric motor for low-noise urban engineering and farmland exploration scenarios.
  • Low Maintenance Cost: Original hydraulic core components and simplified transmission structure minimize fault points. Core components are wear-resistant and durable, supporting 8-hour continuous operation with 30% reduced long-term maintenance costs.
Applicable Scenarios
  • Geological Survey: Metal/non-metal mineral resources exploration, geothermal resource survey, shallow oil and gas resource exploration
  • Engineering Survey: Geological survey for railways, highways, bridges, high-rise buildings, and pre-excavation of foundation pile holes
  • Livelihood Exploration: Rural/mountainous water well exploration, shallow geothermal well exploration, farmland irrigation well exploration
  • Scientific Research & Teaching: Field internships for geological majors in universities, shallow geological experiments in research institutions
