200m Hydraulic Core Drilling Rig Multi-Functional For Mineral Exploration Engineering Investigation
200m Hydraulic Core Drilling Rig Multi-Functional For Mineral Exploration Engineering Investigation
200m Hydraulic Core Drilling Rig Multi-Functional For Mineral Exploration Engineering Investigation
200m Hydraulic Core Drilling Rig Multi-Functional For Mineral Exploration Engineering Investigation
Specifications
Brand Name :
JINZHOU SHITAN
Model Number :
GK200
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T,Western Union
Supply Ability :
Negotiation
Delivery Time :
7-12 days
Packaging Details :
Standard Export Package
Product Name :
GK 200 Trailer Mounted Drilling Rigs
Keyword :
Geological exploration drilling rig
Drilling Diameter :
91mm,110mm,130mm,150mm,300mm
Drilling Depth :
200 meters
Diesel engine power :
1115 diesel
Spindle Speed :
115, 230, 505, 790, 1010 r/min
Drilling rod diameter :
50mm
Lifting rotating speed :
20; 40; 90; 168r/min
TypeDrilling rig size :
1433*697*1273mm
weight :
980KG
Description
GK200 Hydraulic Core Drilling Rig
A lightweight, multi-functional hydraulic core drilling rig designed for mineral exploration and engineering investigation with compact structure and easy disassembly/assembly.
Technical Specifications
Product Name GK 200 Trailer Mounted Drilling Rigs
Drilling Diameter 91mm, 110mm, 130mm, 150mm, 300mm
Drilling Depth 200 meters
Diesel Engine Power Changchai 1115 diesel engine
Spindle Speed 115, 230, 505, 790, 1010 r/min
Drilling Rod Diameter 50mm
Lifting Rotating Speed 20; 40; 90; 168r/min
Drilling Rig Size 1433*697*1273mm
Weight 980KG
Key Features
200m hydraulic core drilling rig with strong power & stable drilling performance for mineral exploration, engineering investigation, and water well drilling applications.
Multi-functional integrated design allows quick switching between drilling scenarios to improve utilization rates.
High-quality core components and solid structure adapt to complex geological conditions with low failure rates.
Complies with export-grade production standards with full-process inspection for quality assurance.
Core Advantages
  • High Efficiency & Cost-Effective: 200-meter drilling depth covers mainstream scenarios with lower investment and faster payback
  • Flexible & Adaptable: Compact structure with modular design for easy transportation to challenging terrain

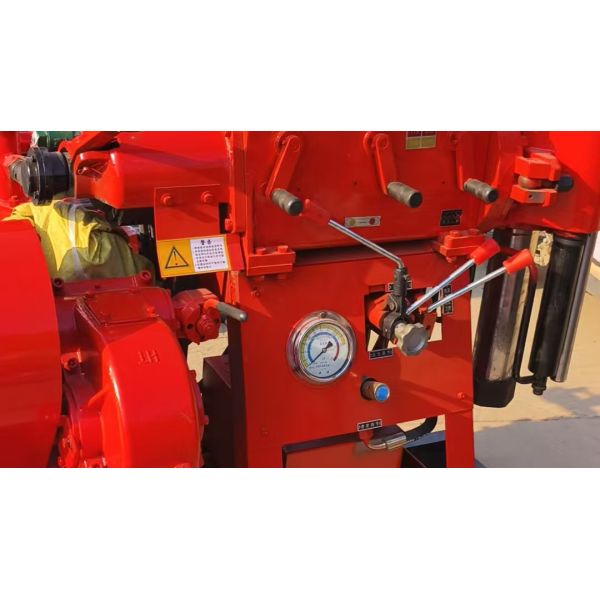

  • Intelligent Operation: Hydraulic feeding system with pressure gauge for easy operation and real-time monitoring
  • Multi-Purpose Capability: Suitable for water wells, geological coring, foundation reinforcement with diesel/electric dual power
Considerations
Maximum 200-meter depth may be unsuitable for deep geothermal or mineral exploration beyond 300 meters. Limited efficiency and torque for boreholes over Φ800mm compared to heavy-duty rigs. May experience faster wear in extreme conditions or complex hard rock formations.

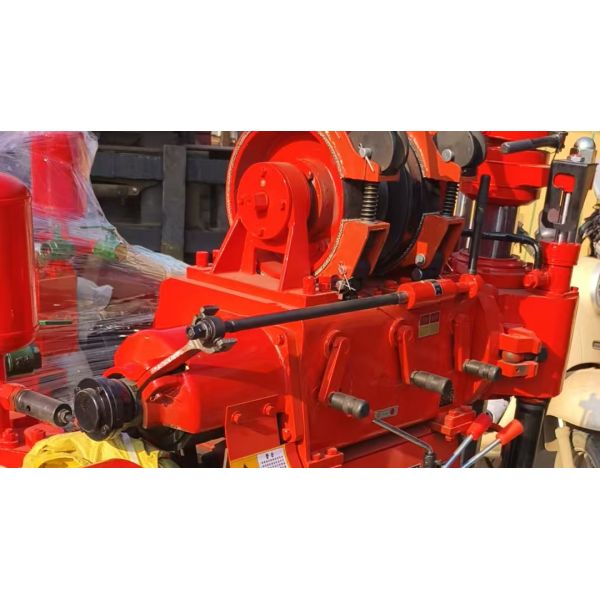

Product Images
200m Hydraulic Core Drilling Rig Multi-Functional For Mineral Exploration Engineering Investigation 200m Hydraulic Core Drilling Rig Multi-Functional For Mineral Exploration Engineering Investigation
