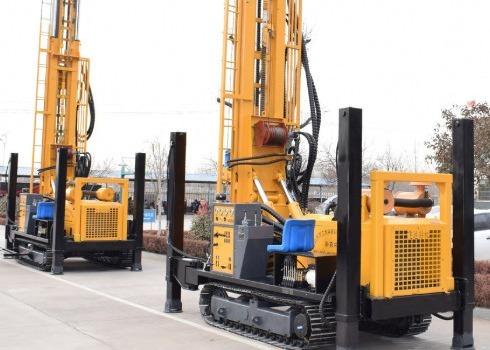

180meters Depth Customized Drilling 2.5km/H Pneumatic Borewell Machine
180meters Depth Customized Drilling 2.5km/H Pneumatic Borewell Machine
180meters Depth Customized Drilling 2.5km/H Pneumatic Borewell Machine
180meters Depth Customized Drilling 2.5km/H Pneumatic Borewell Machine
Specifications
Brand Name :
ST
Model Number :
ST-180
Certification :
ISO 9001
Place of Origin :
Hebei ,China
MOQ :
1set
Price :
20000-35000 USD
Payment Terms :
T/T, Western Union,
Supply Ability :
2000 sets/month
Delivery Time :
5 -10 days
Packaging Details :
Wooden Package
Product Name :
ST 180 Meters Customized Water Well Drilling Equipment Pneumatic Borewell Machine
Weight :
4.5T
Drilling depth :
180m
Dimension(L*W*H) :
3800*1500*2200mm
Drilling hole diameter :
105-180mm
Walking speed :
2.5km/h
Climbing angles (Max.) :
30
Equipped capacitor :
55KW
Drill pipe diameter :
76/89mm
Condition :
New
Description
ST 180 Meters Depth Customized Drilling Equipment Borewell Machine For Water Well Drilling

ST 180 Meters Pneumatic Borewell Machine Information

ST180 Pneumatic Borewell Machine is mainly applicable to industrial and civil drilling, geothermal drilling, has the advantages of compact structure, fast advancing, mobile and flexible wide application region etc.. Pneumatic well drill is especially suitable for water intake in mountainous and rocky strata

ST 180 Pneumatic Borewell Machine Techical Data

Model
ST 180 drilling rig
Drilling hole diameter
140-254mm
Drilling depth
180m
One-time advance length
3.3m
Walking speed
2.5km/h
Climbing angles (Max.)
30
Equipped capacitor
55kw
Using air pressure
1.7-2.5mpa
Air consumption
17-31m³/min
Drill pipe length
1.5m, 2.0m, 3.0m
Drill pipe diameter
76mm, 89mm
Rig lifting force
12t
Swing speed
45-65rpm
Swing torque
3200-4600(N.m)
Dimension
3800*1500*2200mm
Weight
4500kg

ST180 Pneumatic Borewell Machine Fetures

This series of drilling rigs features compact fuselage. The fuselage is only 1.35 meters wide. It is suitable for drilling wells in farmyards or other narrow conditions. Drilling depth can reach 240 meters.Our rigs are engineered specifically with the customer in mind: combining low maintenance, high dependability, and advanced high-pressure hydraulics systems means that our rigs are unsurpassed in the market today.

ST180 Pneumatic Borewell Machine FAQ

Q: Are you a manufacturer or trading company?

A: We are a professional drilling rig manufacturer.
Q: What are your main products, and used for?
A: Our products include core barrel, casing, drill rod, drill rig and other drilling parts.
They are used for mineral exploration, geological drilling.
Q: If the tool joint the buckle, the screw is not how to do?
A: You can tap and screw, this tool joint is not easy to take over tripping in use.
Q: How about the delivery terms?
A: 1.Payment: T/T,30% deposit advance and the rest before delivery
