ST-350 Civil Geothermal 18T Pneumatic Borewell Machine
ST-350 Civil Geothermal 18T Pneumatic Borewell Machine
ST-350 Civil Geothermal 18T Pneumatic Borewell Machine
ST-350 Civil Geothermal 18T Pneumatic Borewell Machine
Specifications
Condition :
mow
Power Type :
Diesel
Lifting force :
18T
Rotation speed :
5700-7500N.m
Dimension :
4100*1950*2600mm
Certification :
ISO
Brand Name :
shitan
Model Number :
ST-350
Place of Origin :
hebei china
MOQ :
1set
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
sets/month
Delivery Time :
5days
Packaging Details :
no packing
Description

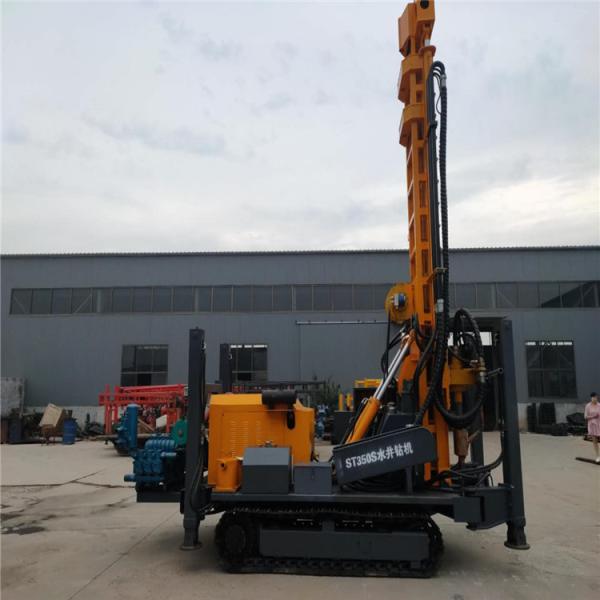

350 M Steel Crawler Water Well Pneumatically Drilling Rig

Pneumatic Water Well Drilling Rig Brief Introduction

ST-350series water well drilling rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools with very high drilling efficiency.There are 180, 200, 300, 350, 400, 500, 600, 800 and other series of water well drilling rigs.

This series of water well drilling machine has the characteristics of standardized configuration, compact and reasonable structure, fast drilling speed, economical and durable, low failure rate, etc. It has been recognized by the market once it is launched, and has been widely used in mining engineering construction, civil drilling, geothermal drilling and other fields.

The Main Parameters

Model & Name
ST350
Travelling speed
2.5km/h
Weight
9000 kg
Gradeability
30%
Dimensions(mm)
5900*2000*2850mm
Rated pressure
1.7-3.3MPa
Power Oil
Diesel
Air consumption
17-35 m³/min
Engine Model
YUCHAI
Drill rod diameter
Φ89 / Φ102 mm
Rated Power
92 kW
Drill rod length
1.5m, 2.0m, 3.0m, 6.0m
Travelling System
Steel Crawler
Elevating capacity
24 Ton
Drilling depth
350m
Swing speed
55-115rpm
Bore diameter
140-325mm
Swing torque
6200-8500 N.m
Drive Head Stroke
6.6m

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180, ST-200, ST-260, ST-300, ST-350, ST-400, ST450, ST-450, ST-500, ST-600, ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B, GK180, GK200, GY150, GY200 and 30 impact drill rig, ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

OEM / ODM can accept. Good quality, professional after-sales service, welcome to order
