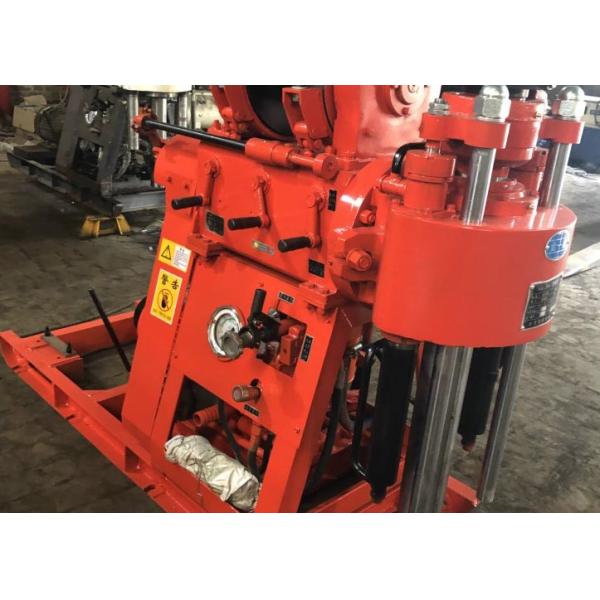

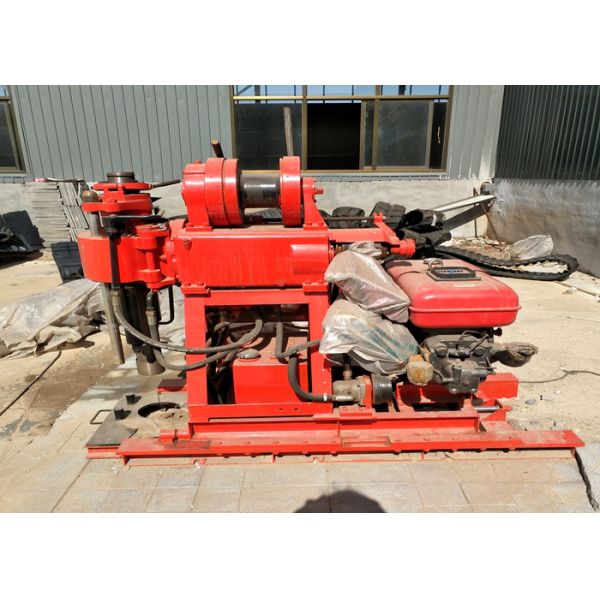

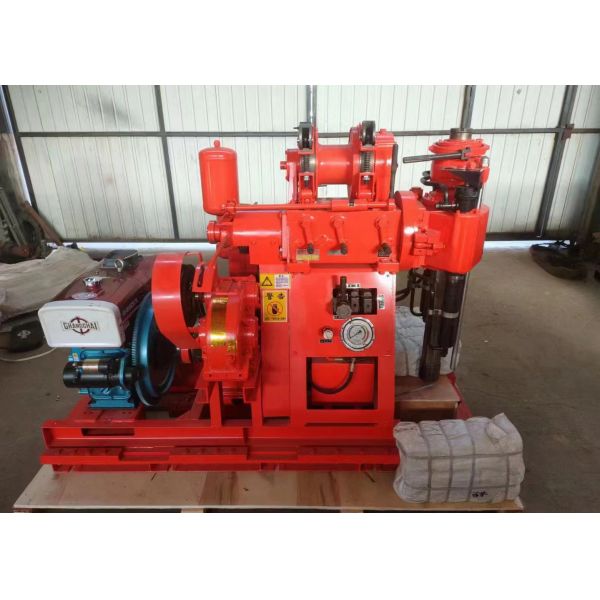

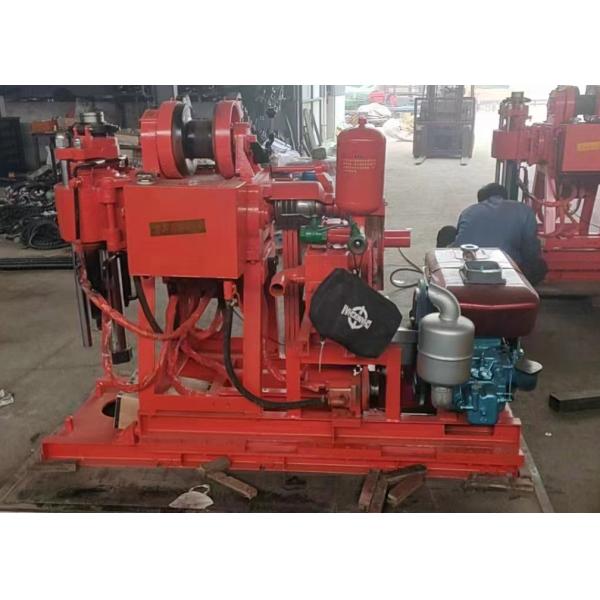

20m Height ST-150 Diamond Geological Drilling Rig
20m Height ST-150 Diamond Geological Drilling Rig
20m Height ST-150 Diamond Geological Drilling Rig
20m Height ST-150 Diamond Geological Drilling Rig
Specifications
Brand Name :
JINZHOU SHITAN
Model Number :
ST-150
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
2000 sets per year
Delivery Time :
7-10days
Type :
Rotary Drilling Rig
Power Type :
Diesel
Drilling Depth :
25 135 175m
Drilling Rod Diameter :
42mm
Description
20m Height ST-150 Diamond Geological Drilling Rig
Geophysical Survey Non-stop Geological Drilling Rig

A versatile portable engineering drill designed for comprehensive geological exploration and foundation work.

Application

The ST-150 drill is a multi-use portable engineering drill primarily used for engineering geological exploration and pile foundation work in railway, bridge, traffic, hydroelectricity, and industrial/civil construction projects. It can also be used for small diameter water well drilling.

Detailed Specifications
Basic Parameters
Drilling Depth 150 / 100 / 20 m
Drilling Hole Diameter 46 / 76 / 300 mm
Drill Pipe Diameter 42 mm
Gross Weight 450 kg
Dimensions (L×W×H) 1580 × 1080 × 1200 mm
Revolving Plate
Rated Speed 48 / 100 / 200 / 350 / 650 r/min
Maximum Torque 2000 N·m
Maximum Cylinder Driving Force 20,000 N
Maximum Cylinder Lifting Force 30,000 N
Lifter
Lifting Capacity (Single Pipe, Low Speed) 15,000 N
Bobbin Line Speed 0.32 / 0.66 / 1.24 / 2.58 m/s
Bobbin Diameter 140 mm
Rope Diameter 11 mm
Rope Capacity 24 m
Drilling Tower
Type Staircase Tower (or Steel Pipe Tower)
Height 6 m
Power Machine
Type Changchai ZS1100 Diesel Engine
Rated Power 12.1 kW (16 HP)
Weight 150 kg
Main Features
  • Exceptional performance in soil, sand, hard rock, and various land conditions
  • Three drill bit options available: three-wing bit, alloy bit, and diamond bit - suitable for both soft and hard ground, with diamond bits particularly effective for hard rock drilling
  • Hydraulic control system significantly improves working efficiency and reduces labor requirements
  • Mounted wheels or trailer for easy transportation by car or tractor
  • Power options: diesel engine or electric motor available per customer request
Rig Applications
  • Mineral deposit survey and exploration, particularly for nonferrous and rare metals - used for tracing deposits, exploring geological structures, delineating ore bodies, sampling, and verification
  • Mine excavation applications including underground observation holes, ventilation holes, drainage holes, gas drainage holes, grouting holes, blasting holes, anchor holes, and pilot holes for tunnel digging
  • Geotechnical engineering construction including slope reinforcement of dam foundations, geological disaster treatment, deep foundation pit support, and underground engineering for industrial, commercial, and traffic projects
  • Construction of building foundations, workshop foundations, high-speed railway foundations, highway foundations, and other rock foundation work
20m Height ST-150 Diamond Geological Drilling Rig
