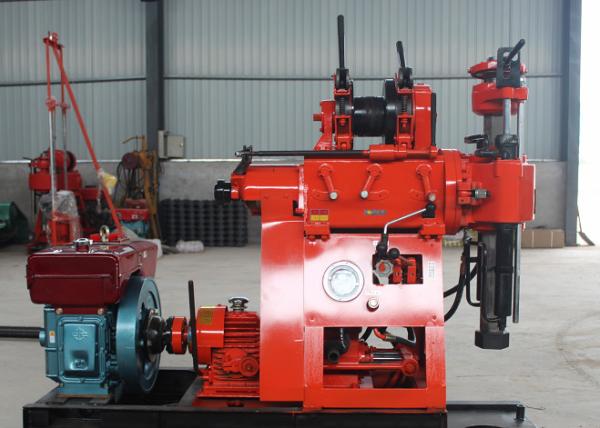

Water Well Railways GK180 Mining Core Drilling Equipment
Water Well Railways GK180 Mining Core Drilling Equipment
Water Well Railways GK180 Mining Core Drilling Equipment
Water Well Railways GK180 Mining Core Drilling Equipment
Specifications
Type :
Core Drilling rig
Color :
Customer Required
Dimension(L*W*H) :
1750*780*1273
Voltage :
220V/380V
Usage :
water well / railways
Model Number :
GK180
Weight :
513kg
Application :
Mining
Brand Name :
ShiTan
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, D/A, T/T, Western Union
Supply Ability :
2000Set
Delivery Time :
Within 7-12 days
Packaging Details :
Standard export transportation package
Description

GK180 Color Customized Core Drill Rig / Mining Core Drilling Equipment

Brief Introduction

The drilling rig is equipped with a ball mounted card blessing mechanism with six side active drill rods. The utility model can perform no stopping and falling rod. And it has the advantages of high work efficiency, convenient operation, safety and reliability. It is compact, small in size, light in weight, strong in decomposition and easy to remove .

product parameter
Drilling Rig
Drilling diameter(mm) 75,91,110,130,150,300
Drilling depth (m) 180,150,100,70,50,30
Drill pipe diameter (mm) 42,50
Drilling angle(°) 90~75
Equipment size(L * B * H) 1750 * 780 * 1273 (mm)
Rig weight (except engine) 595
Gyrator
Spindle speed (four gear) (r/min) 71,182,310,790
Spindle maximum feed pressure(KN) 15
Spindle maximum lifting force(KN) 25
Spindle maximum output torque(KN• m) 1.5
Winch assembly
Winch maximum lifting force (single rope) 20
Reel speed (r/min) 20,39,85,170
Reel circumferential speed(m/s) 0.172,0.345,0.738,1.476
Reel diameter(mm) 140
Wire rope diameter(mm) 9.3
Wire rope density (m) 40
Brake diameter(mm) 278
Brake band width (mm) 50
Water pump
Pump type Horizontal single cylinder double acting
Maximum displacement (motor)(L/min) 95(77)
Work pressure (Mpa) 1.2
Cylinder diameter (mm) 80
Piston stroke(mm) 100
The maximum allowable pressure (Mpa) 1.2
Oil pump
Oil pump type YBC -20/125
Nominal pressure (Mpa) 12.5
Rated flow(ml/r) 20
Rated speed(r/min) 800-1500
Diesel engine or motor
Diesel engine ZS 1115
Rated power (KW) 16.2
Rated speed (r/min) 2200
Rated pressure(Mpa) 11
Motor type Y160 - 4
Application

Name: GK-180 core drill

GK-180 drilling rig is developed to synthesize the advantages of various drilling rigs. The new kind of shallow hole drilling rig is mainly used in engineering geological survey and secondly used in core drilling.

apply to of use of drilling rigs

1.1 Engineering geological investigation of railways, hydropower, traffic, bridges, dam foundations and other buildings.

1.2 Geological core drilling, physical prospecting.

1.3 Small grout Confucius, drill hole drilling.

1.4 Small well drilling.

How to avoid contamination of hydraulic system of water well drilling rig?
As the working medium of hydraulic system, hydraulic oil plays the role of power, lubrication and heat dissipation. Therefore, the hydraulic oil is directly related to the normal operation of the hydraulic system of the drilling platform. In the hydraulic system, most faults are caused by dirty hydraulic oil. Therefore, in the research, development, design, manufacture and use of hydraulic system, the pollution of hydraulic oil in the system should be actively controlled. So, how to avoid the pollution of the hydraulic system of the drilling platform and avoid the pollution of the hydraulic system of the drilling platform, we need to pay attention to the following points: (1) try to select hydraulic accessories and components with low pollution sensitivity. (2) Correctly select and reasonably arrange the oil filter device of the system to make the filtration efficiency, filtration accuracy and pollution capacity of the system meet the design requirements, and ensure that the system has sufficient pollution degree, steady-state cycle and pollution self purification capacity. (3) In the system structure design, reduce and eliminate pollution sources as much as possible (that is, reduce the pollution generation rate) to reduce the intrusion pollution when the system works. If the design of isolated oil tank and closed system is adopted, reliable anti pollution measures shall be taken for the oil drainage and exhaust device to avoid dead corners and blind ends of the pipeline

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180, ST-200, ST-260, ST-300, ST-350, ST-400, ST450, ST-450, ST-500, ST-600, ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B, GK180, GK200, GY150, GY200 and 30 impact drill rig, ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

OEM / ODM can accept. Good quality, professional after-sales service, welcome to order
