Mines 600m 2200rpm Borehole Drilling Equipment
Mines 600m 2200rpm Borehole Drilling Equipment
Mines 600m 2200rpm Borehole Drilling Equipment
Mines 600m 2200rpm Borehole Drilling Equipment
Specifications
name :
hydraulic core drilling machine
Power Type :
Diesel
Usage :
Water Well
Dimension(L*W*H) :
2500*900 *1800mm
Voltage :
220V/380V
Drilling depth :
600m
Water inlet caliber :
75mm
Brand Name :
ShiTan
Model Number :
XY-3
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, D/A, T/T, Western Union
Supply Ability :
2000set/year
Delivery Time :
Within 7-12 days
Packaging Details :
Standard Export package
Description
Mines 600m 2200rpm Borehole Drilling Equipment
Product Specifications
Attribute Value
Name Hydraulic core drilling machine
Power Type Diesel
Usage Water Well
Dimension (L×W×H) 2500×900×1800mm
Voltage 220V/380V
Drilling depth 600m
Water inlet caliber 75mm
Product Overview

The hydraulic drilling rig is a specialized core drilling machine developed for various drilling processes, primarily diamond drilling. Available with either electric motor or diesel engine power options.

Key Features
  • Supports multiple high-efficiency drilling processes including diamond cable, percussion turning, orientation drilling, and reverse circulation core-drilling
  • High reliability operation with large engine power
  • Dual reverse rotation gears for effective accident resolution
  • Ergonomically arranged control handles for operator convenience
  • Equipped with normally closed hydraulic chuck for flexible, reliable operation
  • Independent operation of spindle and hoist
  • Large spindle inner diameter accommodates big hexagonal drilling rods
Technical Specifications
Specification Value
Structural style Spindle
Power 4TNV88-BSBKC 27.1kW 2200rpm
Dimension (mm) 2600×900×1750
Weight (kg) 700 (power unit not included)
Drilling depth (m) 600
Maximum drilling diameter (mm) 219
Kelly bar (mm) 46×51×4200 / Ø50
Drill bit (mm) Ø75-Ø220
Rotating speed (r/min) 57/157/470/942
Reel caliber (mm) 200
Single line lifting speed (m/s) 0.3-1.9
Single line hoisting capacity (t) 2.5
Wire rope length (m) 50
Wire rope diameter (mm) Ø12.5
Rated load (T) 3
Effective height (m) 6
Tower leg specifications (mm) Ø73

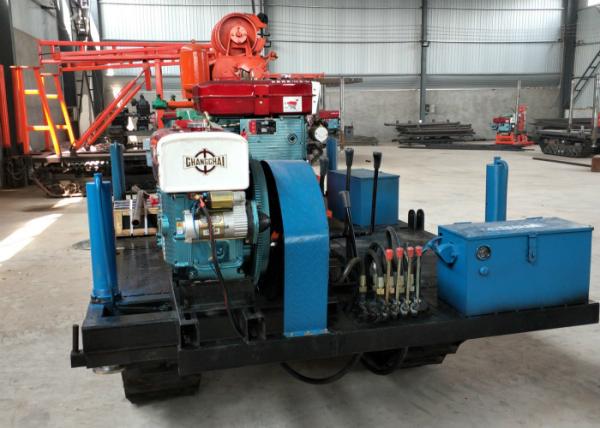

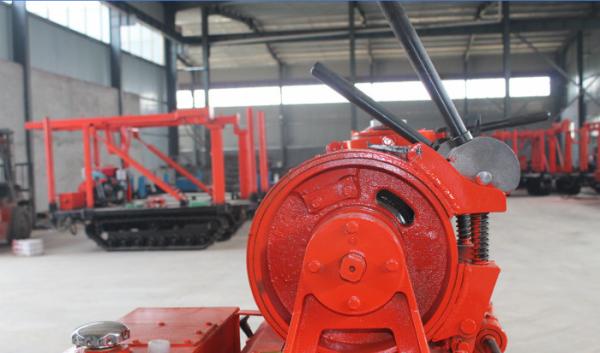

Product Images

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180, ST-200, ST-260, ST-300, ST-350, ST-400, ST450, ST-450, ST-500, ST-600, ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B, GK180, GK200, GY150, GY200 and 30 impact drill rig, ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

OEM / ODM can accept. Good quality, professional after-sales service, welcome to order
