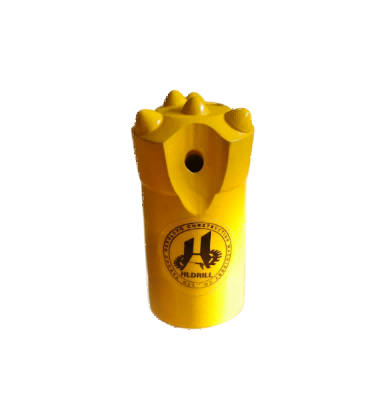

5 Tooth Layout 11° Taper Angle 64mm Compact Height Button Bit For Medium Duty Rock Drilling
5 Tooth Layout 11° Taper Angle 64mm Compact Height Button Bit For Medium Duty Rock Drilling
5 Tooth Layout 11° Taper Angle 64mm Compact Height Button Bit For Medium Duty Rock Drilling
5 Tooth Layout 11° Taper Angle 64mm Compact Height Button Bit For Medium Duty Rock Drilling
5 Tooth Layout 11° Taper Angle 64mm Compact Height Button Bit For Medium Duty Rock Drilling
5 Tooth Layout 11° Taper Angle 64mm Compact Height Button Bit For Medium Duty Rock Drilling
5 Tooth Layout 11° Taper Angle 64mm Compact Height Button Bit For Medium Duty Rock Drilling
5 Tooth Layout 11° Taper Angle 64mm Compact Height Button Bit For Medium Duty Rock Drilling
Specifications
Material :
Tungsten Carbide
Face :
flat、drop center 、New drop center
Wearresistance :
High
Application :
Drilling
Usageenvironment :
Mining, Construction, Quarrying
Threadtype :
R、T、S、SR、ST
Packaging Details :
Wooden Boxes, Cardboard Boxes
Diameterrange :
34mm
Delivery Time :
7-15 days
Compatibility :
Compatible with most drilling rigs
Payment Terms :
T/T
Certification :
ISO 9001 Certified
Weight :
0.25 kg
Brand Name :
10PCS
Place of Origin :
CHINA
MOQ :
HLDRILL
Price :
Please contact us
Supply Ability :
3000 PCS Per month
Name :
Button Bit
Description
5-tooth layout 11° taper angle 64mm compact height button bit for medium-duty rock drilling
Product Specifications

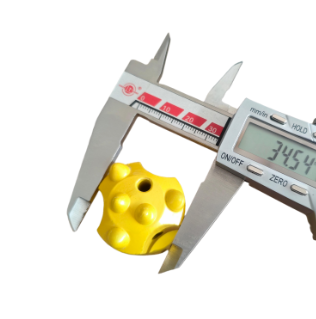

Diameter 34mm

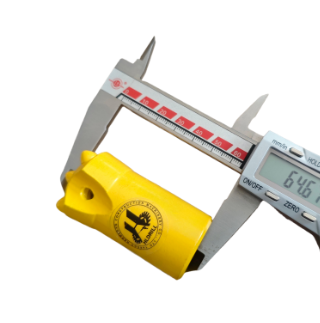

Body Length 64mm
Tapered Degree 11°
Carbide Size 2 × 7mm, 3 × 8mm
Carbide Brand and Grade ZCC/YK05/YG9C/YG10C
Steel Grade 45CrNiMoVA/42CrMo
Weight 0.25 kg
Product Overview
Our 5-tooth, 34mm diameter ball-shaped drill bit is engineered for medium-duty rock drilling applications in mixed formations. With its compact 64mm height and 11° tapered design, this drill bit delivers targeted rock-breaking performance while maintaining excellent drilling accuracy. Ideal for small-scale mining operations, construction anchoring, and geotechnical sampling, this tool ensures consistent hole quality, reduces operator fatigue, and provides extended service life. Perfectly suited for use with handheld or lightweight drilling rigs.
Key Features & Benefits
  • Five-Tooth Layout: Balanced force distribution enables fast and stable drilling performance
  • 11° Taper Angle: Provides excellent centering capability and superior drilling accuracy
  • 64mm Compact Height: Designed for operation in confined spaces and limited clearance applications
  • Advanced Material Construction:
    • Wear-Resistant Buttons: YG10C tungsten carbide buttons feature high hardness (HRA ≥88) and exceptional impact toughness
    • Reinforced Steel Body: Heat-treated alloy steel through quenching and tempering enhances bending strength and prevents breakage in hard rock layers
    • Corrosion-Resistant Coating: Galvanized surface protection extends service life by 25% compared to uncoated drill bits in mine water or damp conditions
Product Images
5 Tooth Layout 11° Taper Angle 64mm Compact Height Button Bit For Medium Duty Rock Drilling5 Tooth Layout 11° Taper Angle 64mm Compact Height Button Bit For Medium Duty Rock Drilling
