High Hardness Alloy 32mm X 65mm Tapered Button Bit For Small Scale Mine Slope Support
High Hardness Alloy 32mm X 65mm Tapered Button Bit For Small Scale Mine Slope Support
High Hardness Alloy 32mm X 65mm Tapered Button Bit For Small Scale Mine Slope Support
High Hardness Alloy 32mm X 65mm Tapered Button Bit For Small Scale Mine Slope Support
High Hardness Alloy 32mm X 65mm Tapered Button Bit For Small Scale Mine Slope Support
High Hardness Alloy 32mm X 65mm Tapered Button Bit For Small Scale Mine Slope Support
High Hardness Alloy 32mm X 65mm Tapered Button Bit For Small Scale Mine Slope Support
High Hardness Alloy 32mm X 65mm Tapered Button Bit For Small Scale Mine Slope Support
Specifications
Brand Name :
HLDRILL
Place of Origin :
CHINA
MOQ :
10PCS
Price :
Please contact us
Payment Terms :
T/T
Supply Ability :
3000 PCS Per month
Delivery Time :
7-15 Days
Certification :
ISO 9001 Certified
Packaging Details :
Wooden Boxes, Cardboard Boxes
Face :
flat、drop center 、New drop center
Material :
Tungsten Carbide
Threadtype :
R、T、S、SR、ST
Weight :
Varies by size
Wearresistance :
High
Diameter :
32mm
Usageenvironment :
Mining, Construction, Quarrying
Compatibility :
Compatible with most drilling rigs
Application :
Drilling
Name :
Button Bit
Description
High-Hardness Alloy 32mm x 65mm Tapered Button Bit for Small-Scale Mine Slope Support
This Henglong 32mm x 65mm tapered button drill bit is engineered with high-quality, high-hardness tungsten carbide alloy specifically for the demanding requirements of small-scale mining and slope support drilling. The precisely machined button inserts and tapered shank design ensure perfect compatibility with most lightweight rock drills.
Product Specifications
Diameter: 32mm
Body Length: 65mm
Tapered Degree: 11°
Carbide Size: 2*7mm, 5*7mm
Carbide Brand/Grade: YK05
Steel Grade: 45CrNiMoVA
Hardness: HRC45-48
Weight: 0.2kgs
Key Features
Excellent Wear Resistance: The high-hardness alloy matrix resists abrasion from rough rock formations and reduces tool replacement downtime in slope reinforcement projects.
Stable Drilling Accuracy: The 32mm drilling diameter and 65mm working length ensure consistent hole diameter required for anchor bolt installation, which is crucial for maintaining the structural integrity of small mine slopes.
Impact Resistance: The heat-treated drill bit body and reinforced button welding structure can withstand intermittent impact loads, preventing premature chipping or breakage in mixed rock and soil layers commonly found in mine slopes.

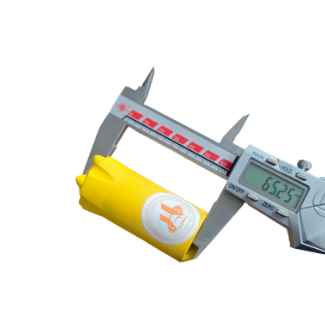

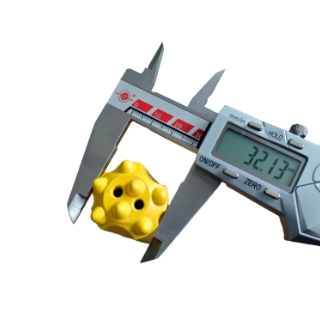

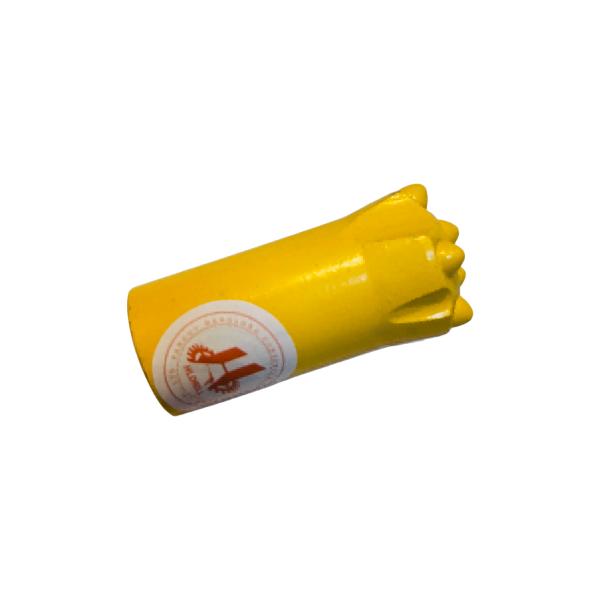

Product Images
High Hardness Alloy 32mm X 65mm Tapered Button Bit For Small Scale Mine Slope SupportHigh Hardness Alloy 32mm X 65mm Tapered Button Bit For Small Scale Mine Slope Support
Technical Support Available : If you have any requirements, please contact our technical team immediately, and we will provide you with the best solution.
