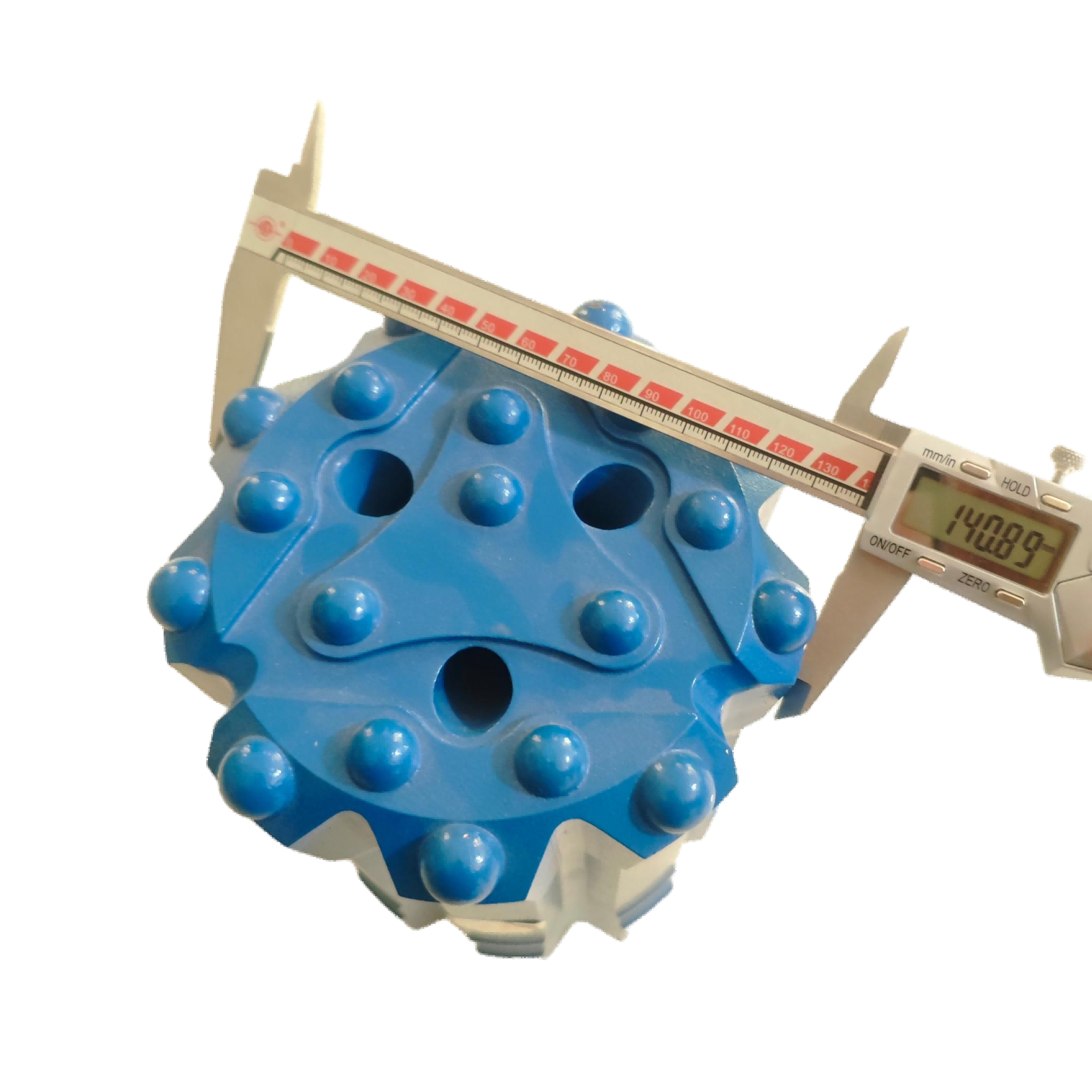

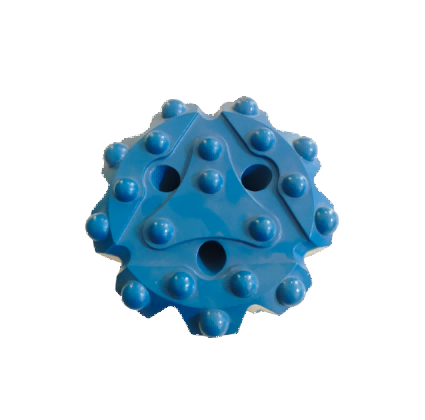

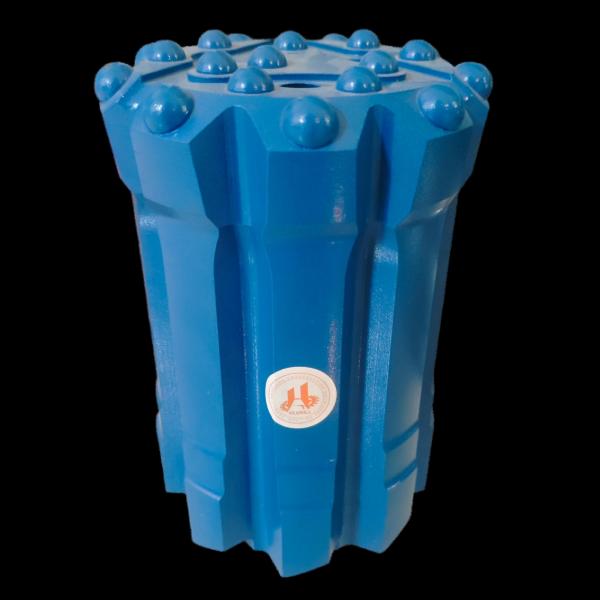

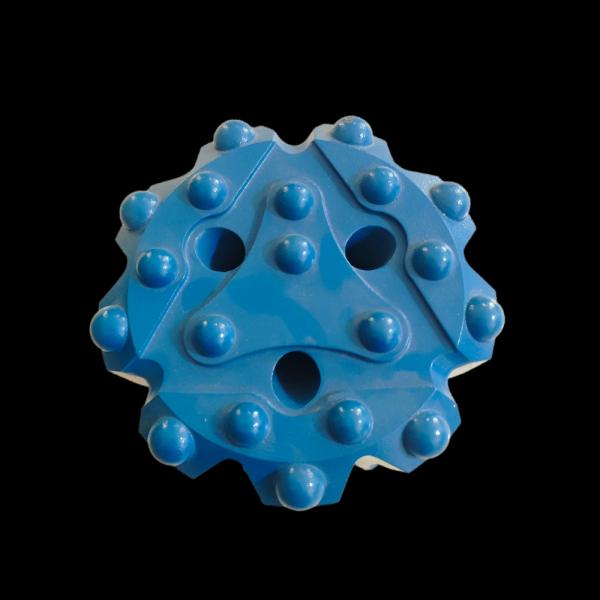

Gt60 Threaded Button Bit Heavy Duty Top Hammer Drill Bits 140mm Diameter
Gt60 Threaded Button Bit Heavy Duty Top Hammer Drill Bits 140mm Diameter
Gt60 Threaded Button Bit Heavy Duty Top Hammer Drill Bits 140mm Diameter
Gt60 Threaded Button Bit Heavy Duty Top Hammer Drill Bits 140mm Diameter
Gt60 Threaded Button Bit Heavy Duty Top Hammer Drill Bits 140mm Diameter
Gt60 Threaded Button Bit Heavy Duty Top Hammer Drill Bits 140mm Diameter
Gt60 Threaded Button Bit Heavy Duty Top Hammer Drill Bits 140mm Diameter
Gt60 Threaded Button Bit Heavy Duty Top Hammer Drill Bits 140mm Diameter
Gt60 Threaded Button Bit Heavy Duty Top Hammer Drill Bits 140mm Diameter
Gt60 Threaded Button Bit Heavy Duty Top Hammer Drill Bits 140mm Diameter
Gt60 Threaded Button Bit Heavy Duty Top Hammer Drill Bits 140mm Diameter
Gt60 Threaded Button Bit Heavy Duty Top Hammer Drill Bits 140mm Diameter
Specifications
Face :
Flat / Drop Center / New Drop Center
Wearresistance :
High
Compatibility :
Compatible with most drilling rigs
Threadtype :
R、T、S、SR、ST、GT
Material :
Tungsten Carbide
Delivery Time :
7-15 days
Name :
Top Hammer Drill Bits
Certification :
ISO 9001 Certified
Diameter :
140mm
Usageenvironment :
Mining, Construction, Quarrying
Brand Name :
HLDRILL
Model Number :
Q14-140-GT45
Place of Origin :
CHINA
MOQ :
10PCS
Price :
Please contact us
Payment Terms :
T/T
Supply Ability :
Over 3000 per month
Packaging Details :
Wooden box / Cardboard box
Weight :
16.2 kg
Application :
Drilling
Description
GT60 Threaded Button Bit Heavy Duty Top Hammer Drill Bit for Hard Rock Drilling
Product Specifications
Product Name Q14-140-GT45 Retrac Button Bit
Code Number 1531-140GT60-1014 / 916-45-31
Thread Type GT60
Diameter 140mm
Carbide Tungsten 10×14mm, 9×16mm
Skirt Design Retract
Weight 16.2 kg
Carbide Design Spherical Buttons
Face Design Flat
Material Alloy Steel Bar 45CrNiMoV and Tungsten Carbide Tips YK05
Product Overview

The GT60 Threaded Button Bit is a heavy duty drill bit from the Sandv system, engineered specifically for top hammer drilling applications. Designed for compatibility with large diameter, high power top hammer drilling equipment, this robust tool excels in demanding operations including deep hole drilling in mines and tunnel excavation.

Key Features
  • Extended Service Life: High hardness tungsten steel ball teeth with surface hardening provide superior wear and fatigue resistance, delivering 20%-40% longer lifespan compared to standard T threaded drill bits
  • Optimized Hard Rock Performance: Flat face design ensures effective drilling in hard rock formations
  • Enhanced Deep Hole Operation: Retrac skirt design facilitates smooth entry and exit in deep holes while preventing drill bit jamming
  • Superior Cutting Removal: Large-diameter central flushing hole enables high pressure airflow/water flow to quickly remove rock cuttings, reducing borehole blockage and drill bit wear
  • Maximum Efficiency: High energy transfer efficiency and improved drilling performance in challenging conditions
