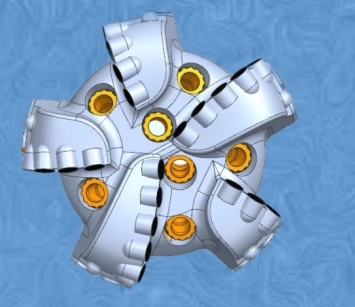

8 1/2 (216mm) Steel Body PDC Directional Drilling Bit API 7-1 Standard Compliant for Mining Wells
8 1/2 (216mm) Steel Body PDC Directional Drilling Bit API 7-1 Standard Compliant for Mining Wells
8 1/2 (216mm) Steel Body PDC Directional Drilling Bit API 7-1 Standard Compliant for Mining Wells
8 1/2 (216mm) Steel Body PDC Directional Drilling Bit API 7-1 Standard Compliant for Mining Wells
Specifications
Updrill :
5
Make-Up TQ :
16-24KN.m
Approximate Shipping Weight :
36kg
Nozzle type & count :
L*7
API Connection :
4-1/2 REG.pin
Price :
Negotiable
IADC code :
S324
Supply Ability :
Stable supply and support for bulk customization.
Face :
26
Junk slot area (sq mm) :
10812
Gauge :
25
Gauge Length :
62mm
Make-Up length :
227mm
Normalized Face Volume :
65.4%
Cutter Type :
GI
Body type :
STEEL Body
MOQ :
1 Piece（MOQ）
Total Cutter Coun :
56
Brand Name :
XINGTONG
Model Number :
8 1/2″ 216mm XD 5163
Certification :
API 、ISO 9001
Place of Origin :
CHINA
Payment Terms :
L/C,D/P,T/T,
Delivery Time :
15-45 Days
Packaging Details :
Standard Exported Package
Description
Factory Promotion: Mining Well PDC Directional Drilling Bit 8 1/2" (216mm) XD5163
API 7-1 Standard Compliant Steel Body PDC Bit
XD Series Features
  • Suitable for improving the steerability and overall drilling efficiency for both RSS and bent motor
  • Shank-less design reduces make-up length by 40% compared to conventional bits, significantly improving steerability
  • Unique depth of cut control design provides excellent tool face control, even under higher than normal WOB conditions
  • Drilling with bent motor: maximum DLS ≥30°/30m
  • Drilling with RSS: maximum DLS ≥15°/30m
Product Features
  • 0.8mm Relieved Gauge
  • Up-Drill Cutters on Gauge Pads
  • All-in-one design
Important Notes
The recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G.
The technical performance of the drill bits sold by Xingtong will be fully implemented in accordance with the terms agreed between Xingtong and the customer.
The pictures are for reference only. Please contact Skycom engineers for detailed technical parameters.
