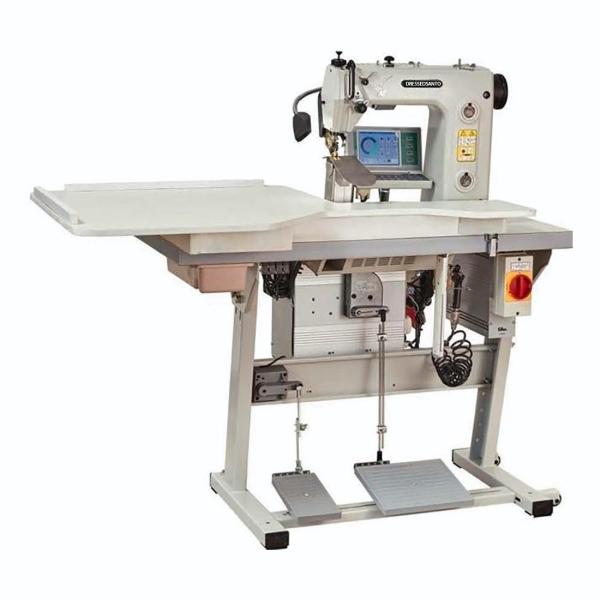

Semi Automated Sleeve Setting Machine With Gathering Function
Semi Automated Sleeve Setting Machine With Gathering Function
Semi Automated Sleeve Setting Machine With Gathering Function
Semi Automated Sleeve Setting Machine With Gathering Function
Specifications
Brand Name :
Dressed Santo
Model Number :
XST-560A
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1 Set
Price :
Email for Price
Payment Terms :
L/C,T/T
Supply Ability :
300 Sets/ Month
Delivery Time :
7-14 Workdays
Packaging Details :
Wooden Case
Primary Function :
Precisely attaching a sleeve to the armhole (scye) of a garment.
Gathering/Easing Function :
Automatically and uniformly eases the sleeve cap to fit the larger armhole, creating a natural, rounded fit without puckers.
Seam Type :
Creates a high-quality, consistent overlook (overlock) or safety stitch seam simultaneously while sewing.
Operator Aids :
Laser guides or physical arms that help the operator follow the correct seam path for a perfect sleeve insertion.
Description


Product Overview:


The Sleeve Setting Machine is a specialized sewing equipment designed for the sleeve attachment process in garment production. It efficiently completes the precise seaming of the sleeve to the body while automatically imparting an even and natural gathering effect. This equipment not only enhances the fit and comfort of the armhole but also adds a three-dimensional shape and distinctive craftsmanship to the garment. It is widely suitable for a variety of apparel types including suits, overcoats, casual wear, and children's clothing, enabling a harmonious combination of consistency and artistry from high-end customization to mass production.


Key Features:

• Dual-Motor Top Feed System: Independent dual-power drive ensures strong and even feeding, effectively overcoming resistance from different fabrics to achieve smooth and flat arc stitching.

• LCD Touch Color Screen: Integrated smart touch control enables visual parameter setting. The user-friendly interface offers intuitive interaction and clear operational status visibility.

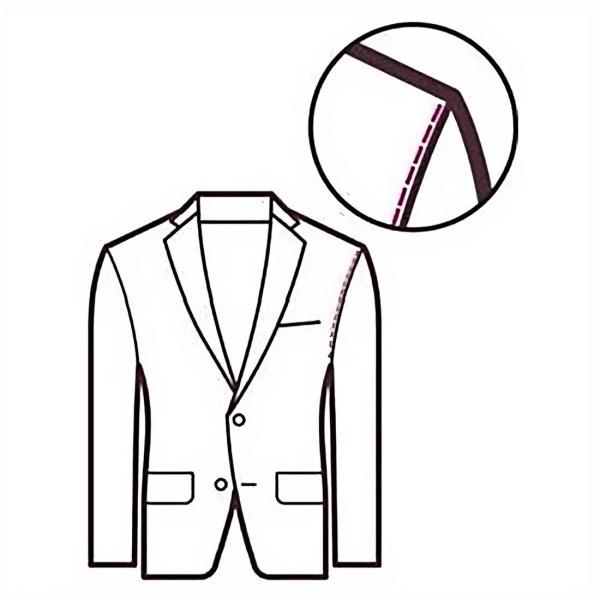

• Sleeve Cap Arc Guide Function: Specially designed for the sleeve cap curve, it provides precise guidance, reduces operational difficulty, and effortlessly creates perfect and smooth sleeve cap stitching.

• Gathering Value Section Setting: Allows pre-setting different gathering levels for specific sections according to process requirements, meeting diverse and complex styling needs.

• On-the-Fly Gathering Adjustment: Supports real-time quick adjustments, enabling fine-tuning of the gathering effect without interrupting the workflow for flexible adaptation to instant process changes.


Product Parameters:


Model

XST-HT-560A

Sewing speed

4000 stitches/min

Max lift of the presser foot

8mm

Thread number

2

Needle

134-35DPX35 9#-16#

Needle bar stroke

41mm

Lock stitch

1.5-5.5mm

Oi feeding

Spindle

Storage number of sewing patterns

100

Air pressure

0.5Mpa

Motor power

0.75KW

Voltage

AC 220V±10%；50/60Hz

Machine dimensions

Packing size

Net /Gross weight


Application:


Semi Automated Sleeve Setting Machine With Gathering Function
