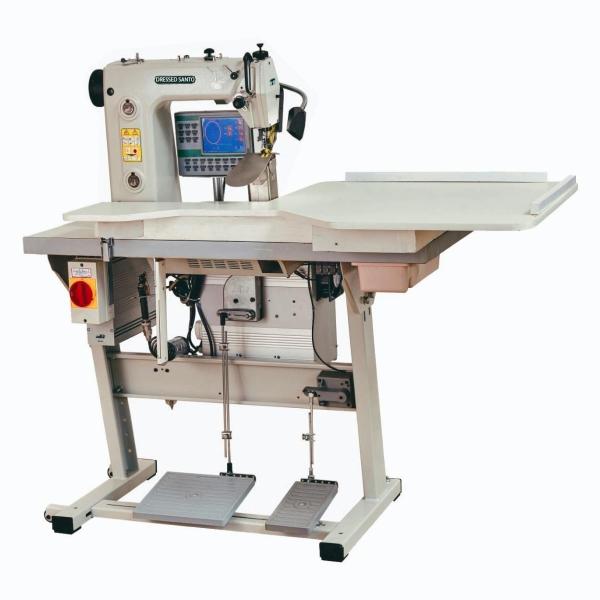

Single Motor Sleeve Sewing Machine With 4000 Stitches/Min
Single Motor Sleeve Sewing Machine With 4000 Stitches/Min
Specifications
Brand Name :
Dressed Santo
Model Number :
XST-550DD
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1 Set
Price :
Email for Price
Payment Terms :
L/C,T/T
Supply Ability :
300 Sets/ Month
Delivery Time :
7-14 Workdays
Packaging Details :
Wooden Case
Motor :
Single Motor
Motor Brand :
Made in China
Feed System :
Single Motor Feeding system
Control System :
Programmable computerized control for storing settings for different garments.
Gathering Ratio Adjustment :
Allows the operator to set the exact amount of easing (e.g., 2:1, 3:1) for different sleeve styles and fabrics.
Stitch Length Adjustment :
Controls the density of the stitches.
Presser Foot Pressure Adjustment :
Allows adaptation for everything from delicate silks to heavy coatings.
Thread Tension Control :
Independent controls for needle, looper, and spreader threads to achieve a perfectly balanced stitch.
Description
Product Overview

The Sleeve Setting Machine is a specialized sewing equipment designed for the sleeve attachment process in garment production. It efficiently completes the precise seaming of the sleeve to the body while automatically imparting an even and natural gathering effect. This equipment not only enhances the fit and comfort of the armhole but also adds a three-dimensional shape and distinctive craftsmanship to the garment. It is widely suitable for a variety of apparel types including suits, overcoats, casual wear, and children's clothing, enabling a harmonious combination of consistency and artistry from high-end customization to mass production.

Key Features

• Single Motor Feed: Provide exceptional feeding force and stability, easily handling a wide range of fabrics for more efficient sewing.


• Colorful Smart Display: Master everything at your fingertips. The graphical interface simplifies parameter settings at a glance, simplifying complex sewing processes and enhancing the sewing experience.


• Intelligent Curve Navigation: Built-in intelligent trajectory guidance allows for precise and smooth sewing of even complex armhole curves, significantly reducing the need for advanced skill.


• Personalized Wrinkle Settings: Program different wrinkle effects in sections and switch between them with one click, providing advanced customization for diverse designs such as suits and women's clothing.


• Real-time Wrinkle Adjustment: Quickly adjust wrinkles on the fly, bringing inspiration to life instantly. This frees you from the constraints of your device and allows you to create with greater freedom and control.

Product Parameters
Model XST-HT-550DD
Sewing speed 4000 stitches/min
Max lift of the presser foot 8mm
Thread number 2
Needle 134-35DPX35 9#-16#
Needle bar stroke 41mm
Lock stitch 1.5-5.5mm
Oi feeding Spindle
Storage number of sewing patterns 100
Air pressure 0.5Mpa
Motor power 0.75KW
Voltage AC 220V；50Hz
Application
Special sewing equipment used for sleeve sewing in garment production, widely applicable to various types of clothing such as suits, coats, casual wear, children's wear, etc.
