Specifications
Brand Name :
Hongruntong Marine
Model Number :
HM-FP30
Certification :
ISO, BV, ABS, DNV, LR, SGS, CCS, RMRS
Place of Origin :
China
MOQ :
1
Price :
USD85 to USD1050 Per Piece
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
5940 Pieces Per Month
Delivery Time :
5-6 Work Days
Packaging Details :
Wooden Pallet, Wooden Case
Productname :
Floating Pipeline
Applications :
mud,dredge,water suction and discharge etc
Feature :
Wear Resistance
Color :
Customized Color
Length :
Customized Length
Working temperature :
-40℃ (-40℉)to 100℃(212℉)
Size :
2inch~16inch
Pressure :
10-21Bar
Description
Dredging Floating Hose
High Abrasion Resistance • Long Service Life • Strong Tensile Strength
Product Overview

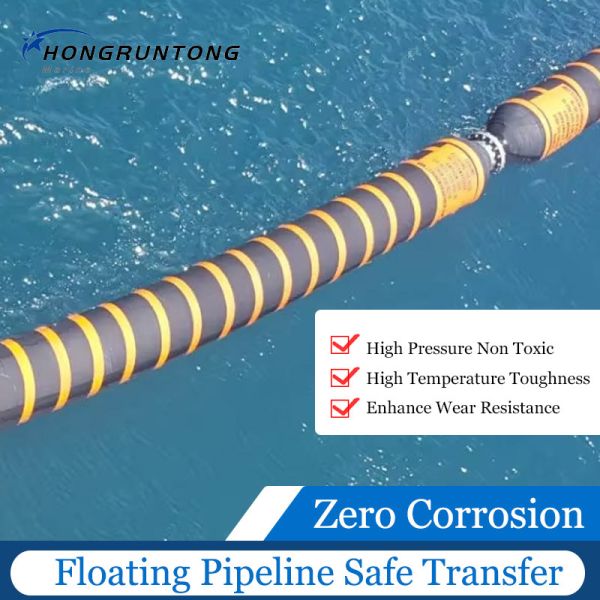

The Floating Pipeline is a high-performance offshore slurry transport system engineered for demanding dredging, reclamation, and marine construction projects. Constructed with multi-layer reinforced synthetic carcass materials combined with a high-abrasion resistant rubber inner lining, it ensures long-term durability under continuous hydraulic pressure.
The system integrates a precision-designed buoyancy structure that maintains stable floating alignment across tidal variations and wave impact zones. Unlike conventional rigid pipelines, this system flexes dynamically while maintaining structural integrity, making it ideal for offshore long-distance discharge operations.
Case Study: Qatar Offshore Reclamation Project
In a large-scale offshore reclamation project in Qatar, the engineering team faced severe challenges due to high salinity water, strong tidal currents, and long-distance discharge requirements exceeding 1.5 km. Traditional pipeline systems suffered from frequent misalignment and buoyancy instability.
After deploying the Hongruntong Marine Floating Pipeline system, the entire discharge line remained stable even under continuous wave impact and high-temperature conditions exceeding 40°C. The integrated buoyancy modules ensured uniform floatation along the full pipeline route.
Results included a 32% increase in dredging efficiency, 40% reduction in maintenance interventions, and significant fuel savings for dredging vessels due to improved discharge continuity.
2inch~16inch Dredging Floating Pipeline Abrasion Resistance Floating Discharge Pipes2inch~16inch Dredging Floating Pipeline Abrasion Resistance Floating Discharge Pipes
Technical Specifications
MaterialPTFE, Galvanized Steel Wire, PVC Coated Polyester Cloth
Product NameFloating Pipeline
Inner WireStainless Steel 316
LiningPolyamide
CarcassPolyamide fabrics, Polyester films
Outer WireStainless Steel 316
Working Pressure10 bar to 21 bar
Maximum Length40 meters
SampleAvailable
Delivery TimeNormally 3-5 days
Product Models
ModelDimensions (mm/in)Working Pressure (bar/psi)Safety FactorBending Radius (mm)Weight (kg)Length (m)
HM-FDH2020 / 3/4"16 / 2306:1800.840
HM-FDH2525 / 1"16 / 2306:1100140
HM-FDH3232 / 11/4"16 / 2306:11251.340
HM-FDH4040 / 11/2"16 / 2306:11401.540
HM-FDH5050 / 2"16 / 2306:11802.540
HM-FDH6565 / 21/2"16 / 2306:12003.340
HM-FDH8080 / 3"16 / 2306:1260440
HM-FDH100100 / 4"16 / 2306:13806.840
HM-FDH125125 / 5"16 / 2306:14409.240
HM-FDH150150 / 6"16 / 2306:150013.240
HM-FDH200200 / 8"16 / 2306:17501840
HM-FDH250250 / 10"16 / 2306:19002625
Note: Various sizes can be customized according to requirements.
Key Features
Integrated Engineering Buoyancy System
Fully engineered buoyancy configuration with evenly distributed flotation units ensures consistent hydrostatic balance, preventing uneven sinking and wave-induced instability.
High Performance Abrasion Resistant Inner Layer
Advanced wear-resistant rubber compounds provide exceptional resistance against continuous abrasion from sand, gravel, and high-density sediment mixtures.
Multi Layer Reinforced Structural Strength
Multiple layers of high-strength synthetic fiber reinforcement withstand internal hydraulic pressure and external mechanical forces, ensuring excellent tensile strength.
Marine Environmental Resistance and Stability
Engineered for long-term operation in harsh marine environments, including high salinity seawater, UV exposure, and extreme temperature variations.
Applications
  • Offshore Dredging and Reclamation Systems: Continuous transport of seabed materials for land reclamation and coastal expansion projects
  • Port Deepening and Maintenance Engineering: Sediment removal and stable discharge pipelines for navigation channel optimization
  • River and Estuary Sediment Transport Projects: Stable hydraulic transport of sediments over variable flow conditions
Why Choose Hongruntong Marine
  • Advanced Marine Pipeline Manufacturing Capability: Specialized production facilities with precision vulcanization technology and automated structural testing
  • Full Project Customization Engineering Support: Customized solutions including pipeline diameter selection, pressure rating, and buoyancy distribution design
  • Strict Multi Stage Quality Assurance System: Comprehensive testing including pressure endurance, flotation stability, and abrasion resistance simulation
  • Proven Global Application Experience: Successful applications in large-scale projects across Middle East, Southeast Asia, and Africa
Frequently Asked Questions
1. What is the maximum operating length of the Floating Pipeline system?
The system can be designed for both short and long-distance dredging operations, with configurations supporting multi-kilometer offshore discharge lines.
2. Can the system operate under strong wave and current conditions?
Yes, the pipeline is engineered with integrated buoyancy and flexible reinforcement to maintain stability under moderate to strong wave and tidal environments.
3. What type of materials can be transported through the pipeline?
Suitable for transporting sand slurry, sediment mixtures, and dredged seabed materials with high abrasion content.
4. How is maintenance managed during long-term operation?
Designed for low maintenance operation requiring only periodic inspection of joints, flotation stability, and surface condition.
5. Is customization available for different dredging projects?
Yes, we provide full customization including diameter, pressure rating, reinforcement structure, and buoyancy configuration.
