Diesel Engine Powered Sand Dredging Equipment For Inland Waterways
Diesel Engine Powered Sand Dredging Equipment For Inland Waterways
Diesel Engine Powered Sand Dredging Equipment For Inland Waterways
Diesel Engine Powered Sand Dredging Equipment For Inland Waterways
Specifications
Brand Name :
JIN MENG
Model Number :
JMD650
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
$800000-$1400000
Payment Terms :
,T/T
Supply Ability :
10sets/year
Delivery Time :
120days
Packaging Details :
Bulk
Name :
Cutter Head Sand Suction Dredge
Type :
Sand cutter suction dredger
Cutter head Diameter :
2.2m
Optional Equipment :
Spud Carriage, Anchor Booms, etc.
Cutter head Power :
650kW
Application :
Dredging and Excavation
Control System :
Hydraulic or Electric
Discharge Pipe Diameter :
650mm
Discharge Distance :
Up to 3000 meters
Dredging Depth :
Up to 18 meters
Description
650mm Pipe Diameter Diesel Engine Power Sand Dredging Equipment With Cutter Head
Product Specifications
Name Cutter Head Sand Suction Dredge
Type Sand cutter suction dredger
Cutter head Diameter 2.2m
Optional Equipment Spud Carriage, Anchor Booms, etc.
Cutter head Power 650kW
Application Dredging and Excavation
Control System Hydraulic or Electric
Discharge Pipe Diameter 650mm
Discharge Distance Up to 3000 meters
Dredging Depth Up to 18 meters
Product Overview
The 650mm Pipe Diameter Diesel Engine Power Cutter Head Sand Suction Dredge is designed for efficient dredging operations in various water conditions. Manufactured by Weifang Jin Meng Dredger Co., Ltd., this heavy-duty equipment is suitable for dredging fine sand, clay, silt, and coarse sand in inland waterways and coastal areas.
Technical Specifications
JMD650 Heavy Type Diesel Engine Power Cutter Head Sand Suction Dredge
Dredging Pump Dia. Discharge pipe: 650mm
Head 65m
Max. Working capacity 1100m³/h
Discharge distance 4000m
Dredging depth 18m
Diesel Engine 1885KW (Mitsubishi)
Hydraulic Auxiliary engine 522KW (Cummins)
Emergency Generator 30KW (WEICHAI)
Total power 2437KW
Oil Consumption 365L/H
Hull Dimension 50m × 8.8m × 2.5m (LOA × W × D)
Hydraulic system VICKERS America (Joint-venture)
Hydraulic Motor Italy SAI technology (Joint-venture)
Valves REXROTH Germany (Joint-venture)
Operating system SIEMENS PLC (Imported from Germany)
Ladder winch Tension: 200KN
Swing winch Tension: 160KN
Cutter Head Crown-like Φ2200mm, Power: 400KW
Key Features
  • Hydraulic controlled, assembling cutter head design
  • Suitable for river channel dredging, canal and water storage projects
  • Modular pontoon design for easy transportation and assembly
  • Dismountable operator cabin for bridge clearance
  • Can be transported by trucks or trains for long distances
  • Equipped with traversing device, cutter ladder lifting device, spuds and deck crane
Operation Process
The cutter head cuts underwater sand into slurry mixture, which is then pumped through pipelines to the discharge location. This equipment is ideal for river dredging, desilting, reclamation projects, and sand dredging in rivers, salty water or calm sea conditions.
Product Gallery
Diesel Engine Powered Sand Dredging Equipment For Inland Waterways

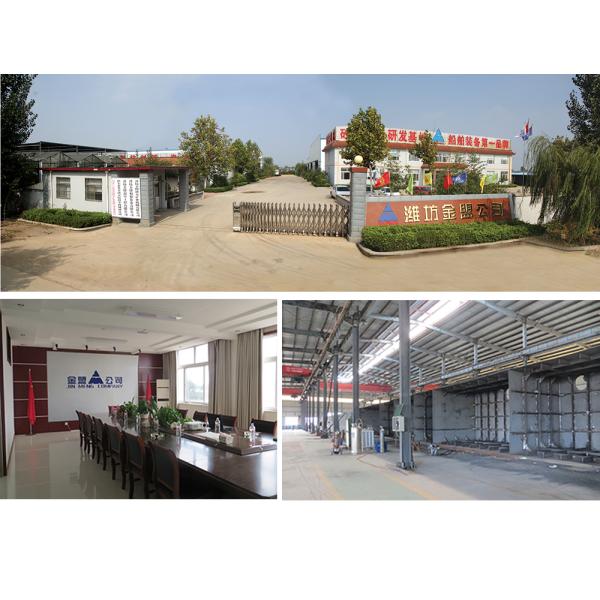

Factory Workshop
Diesel Engine Powered Sand Dredging Equipment For Inland Waterways

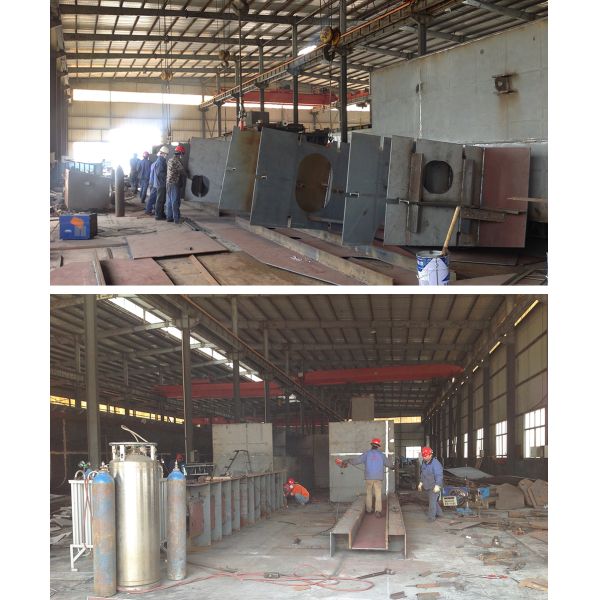

Manufacturing Process
Diesel Engine Powered Sand Dredging Equipment For Inland Waterways

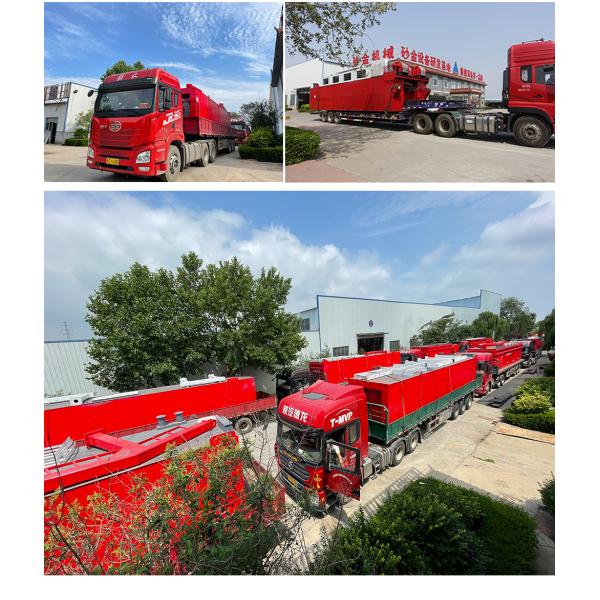

Road Transportation
Diesel Engine Powered Sand Dredging Equipment For Inland Waterways

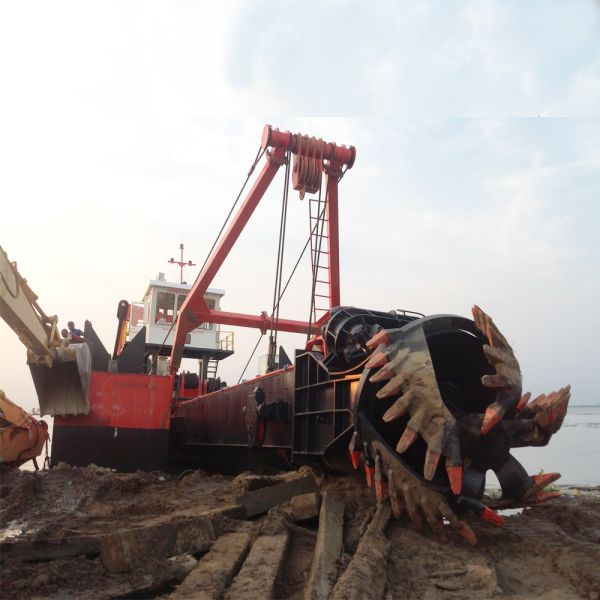

Working Site Operation
Diesel Engine Powered Sand Dredging Equipment For Inland Waterways

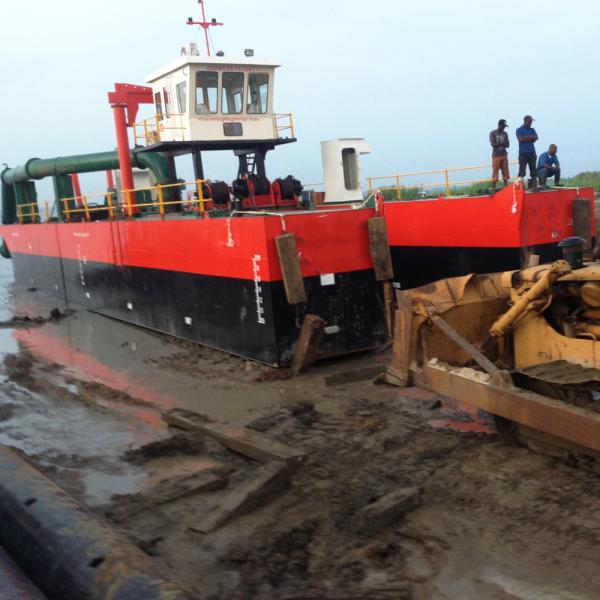

Dredging Operation
Diesel Engine Powered Sand Dredging Equipment For Inland Waterways
Installation Process

Welcome to visit our factory for more details about our Heavy Type Cutter Head Sand Suction Dredge equipment.

Please feel free to contact us for additional information or customized solutions.
