2500m3 Port River Sand Dredging Boat Cutter Head Dredger For Coastal Areas
2500m3 Port River Sand Dredging Boat Cutter Head Dredger For Coastal Areas
2500m3 Port River Sand Dredging Boat Cutter Head Dredger For Coastal Areas
2500m3 Port River Sand Dredging Boat Cutter Head Dredger For Coastal Areas
Specifications
Brand Name :
JIN MENG
Model Number :
JMD450
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
$500000-$800000
Payment Terms :
T/T
Supply Ability :
10sets/year
Delivery Time :
30days
Packaging Details :
Bulk
Name :
Port river dredging cutter head suction dredge
Type :
Cutter suction dredger
Spud Length :
20m
Application :
River port dredging
Power Type :
Diesel
Cutter Diameter :
1.3m
Total Installed Power :
762kW
Suction Pipe Diameter :
500mm
Cutter head Speed :
30rpm
Discharge Distance :
1200m
Description
2500m³ Port River Sand Dredging Boat Cutter Head Dredge
Product Specifications
Attribute Value
Name Port river dredging cutter head suction dredge
Type Cutter suction dredger
Spud Length 20m
Application River port dredging
Power Type Diesel
Cutter Diameter 1.3m
Total Installed Power 762kW
Suction Pipe Diameter 500mm
Cutter Head Speed 30rpm
Discharge Distance 1200m
Company Overview

Weifang Jin Meng Dredger Company is a professional manufacturer specializing in port river dredging equipment with:

  • 500+ employees including 5 senior engineers
  • 16 specialized designers
  • 8 quality control engineers
  • 10 after-sales service engineers
  • Strategic cooperation with leading dredger design institutes
  • Domestic and international service offices
Product Description

Our port river dredging cutter head suction dredge is designed as a dismantle-type non-self-propelled vessel suitable for dredging operations in inland waters and coastal areas. Capable of handling soil types II-IV including:

  • Fine sand
  • Clay
  • Silt
  • Coarse sand

The modular hull design allows for easy transportation by road, rail, or container. Power systems can be customized as electric or diesel according to customer requirements.

Technical Specifications
Component Specification
Dredging Pump Discharge pipe: 450mm
Head 55m
Max. Working Capacity 400m³/h
Discharge Distance 1500m
Dredging Depth 12m
Diesel Engine 746KW Cummins
Emergency Generator 16KW WEICHAI
Total Power 762KW
Oil Consumption 115L/H
Hull Dimensions (LOA×W×D) 37m × 6.9m × 1.8m
Hydraulic System VICKERS America (Joint-venture)
Operating System SIEMENS PLC (Imported from Germany)
Cutter Head Φ1500mm crown-like, 100KW power
Features & Applications

Key equipment includes:

  • Traversing device
  • Cutter ladder lifting device
  • Spuds
  • Deck crane

Operation process: The cutter head cuts underwater material into slurry, which is pumped through pipelines to the discharge location.

Primary applications:

  • River dredging and desilting
  • Channel maintenance
  • Land reclamation
  • Sand dredging in rivers and coastal areas

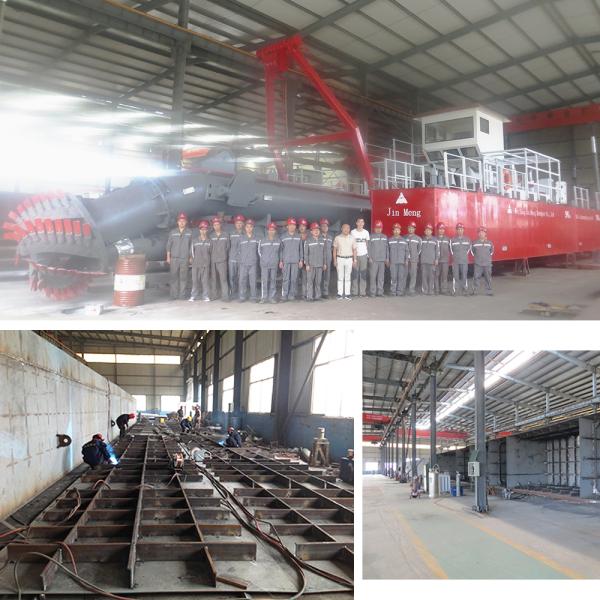

Factory & Product Images
2500m3 Port River Sand Dredging Boat Cutter Head Dredger For Coastal Areas 2500m3 Port River Sand Dredging Boat Cutter Head Dredger For Coastal Areas 2500m3 Port River Sand Dredging Boat Cutter Head Dredger For Coastal Areas 2500m3 Port River Sand Dredging Boat Cutter Head Dredger For Coastal Areas 2500m3 Port River Sand Dredging Boat Cutter Head Dredger For Coastal Areas 2500m3 Port River Sand Dredging Boat Cutter Head Dredger For Coastal Areas
Contact Us

Welcome to visit our factory for more details about our portable port river dredging cutter head suction dredges.

2500m3 Port River Sand Dredging Boat Cutter Head Dredger For Coastal Areas 2500m3 Port River Sand Dredging Boat Cutter Head Dredger For Coastal Areas
