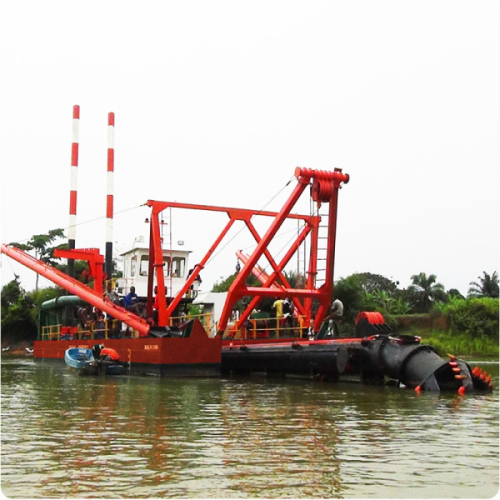

18 Inch Cutter Blades Suction Dredger Ship With Diesel Engine Or Electric Motor Pump Power
18 Inch Cutter Blades Suction Dredger Ship With Diesel Engine Or Electric Motor Pump Power
Specifications
Brand Name :
Jin Meng
Model Number :
JMD450
Place Of Origin :
China
Certification :
ISO
MOQ :
1
Price :
$200000-$500000
Payment Terms :
T/T,L/C
Supply Ability :
20sets/year
Delivery Time :
30days
Packaging Details :
Bulk
Name :
18inch Cutter blades suction dredger
Hydraulic Control System :
Rexroth
Cutter Blade Quantity :
5-6 Pieces
Pump Power :
Diesel Engine Or Electric Motor
Power :
Up To 900kw
Width :
2.0-8.8 Meter
Steel Plate Type :
Marine Steel
Hull Depth :
1.6 M
Description
18inch Cutter Blades Suction Dredger With Diesel Engine Or Electric Motor Pump Power
Product Specifications
Attribute Value
Name 18inch Cutter blades suction dredger
Hydraulic Control System Rexroth
Cutter Blade Quantity 5-6 Pieces
Pump Power Diesel Engine Or Electric Motor
Power Up To 900kw
Width 2.0-8.8 Meter
Steel Plate Type Marine Steel
Hull Depth 1.6 M
Product Overview

The Cutter Suction Dredger is a versatile vessel designed for efficient dredging operations in various water bodies. Equipped with advanced technology, it effectively removes sediment and debris from seabeds with high efficiency and reliability.

Key features include 5-6 durable cutter blades for cutting through compacted soil and rocks, a modular hull design for easy transport and assembly, and flexible power options (diesel or electric) to suit different operational requirements.

Technical Parameters
JMD450 Diesel engine cutter blades suction dredger
Dredging Pump Dia. Discharge pipe 450mm
Head 55m
Max. Working capacity 400m3/h
Discharge distance 1500m
Dredging depth 12m
Diesel Engine 746KW | Cummins
Emergency Generator 16KW | WEICHAI
Total power 762KW
Oil Consumption 115L/H
Hull Dimension LOA*W*D 37m×6.9m×1.8m
Applications

The JMD450 cutter suction dredger is suitable for various environments including rivers, lakes, and ports. It handles soil types II-IV (fine sand, clay, silt, coarse sand) in inland and coastal areas.

  • Channel deepening in ports and harbors
  • River maintenance and flood control
  • Mineral extraction in mining operations
  • Coastal area dredging projects
Customization Options

Our dredgers can be customized to meet specific project requirements:

  • Anchor booms or spud carriage installation
  • 5-anchor system for improved balance
  • Hydraulic spud flat down system
  • Additional underwater dredging pump (20-30m depth)
  • Booster station for extended discharge distance
Support Services

We provide comprehensive technical support including:

  • Operator training programs
  • Maintenance plans and spare parts supply
  • On-site installation and commissioning
  • Troubleshooting assistance
Shipping Information
  • Packaging: Secured in wooden crates
  • Shipping Method: Sea freight
  • Estimated Delivery Time: 4-6 weeks
Frequently Asked Questions
What is the brand name of this Cutter Suction Dredger?

Jin Meng

What is the model number?

JMD450

Where is it manufactured?

China

What is the capacity?

500m3/h
