110-220V 3-4 Watt Output CE Approved LED Emergency Conversion Kit with Self Test Function
110-220V 3-4 Watt Output CE Approved LED Emergency Conversion Kit with Self Test Function
110-220V 3-4 Watt Output CE Approved LED Emergency Conversion Kit with Self Test Function
110-220V 3-4 Watt Output CE Approved LED Emergency Conversion Kit with Self Test Function
Specifications
Brand Name :
Zhui Ming
Model Number :
L360
Certification :
CE
Place of Origin :
Zhejiang
MOQ :
300 sets
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
3000 sets per day
Delivery Time :
35 days on receipt of the deposit
Packaging Details :
1 set in 1 inner box,20sets in 1 master carton
Input Voltage :
110V-240V 50/60Hz
Battery :
Li-ion Battery 3.7V/4.4Ah
Duration Time :
More Than 3 Hours
Indicator :
Red LED - Charging,Green LED - Full Charging,Yellow LED - Battery Failure
Weight :
0.40 kg
Output Wattage :
3-4W
Description

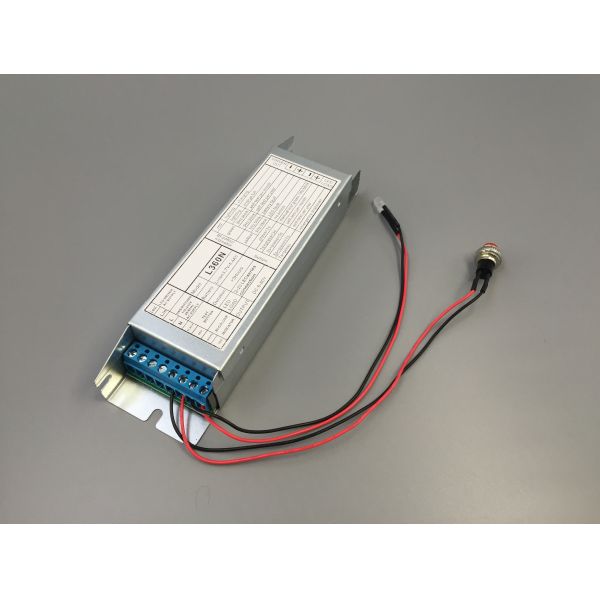

110-220V Self Test Emergency Conversion Kit
This CE-approved emergency conversion kit features 3-4 watt output wattage and operates on Li-ion battery technology, providing reliable emergency lighting solutions for various applications.
Key Specifications
Input Voltage: 110-240V 50/60Hz
Battery: Li-cad Battery 3.7V/4.4Ah
Emergency Time: More than 3 Hours
Product Advantages
  • Compact Design: Battery integrated with PCB board for space efficiency
  • LED Compatibility: Supports DC 6V to 80V LED lamp boards with power exceeding 5W
  • Universal Application: Compatible with all lamps featuring electronic drivers
Technical Specifications
Parameter Specification
Operation Completely Self-contained
Input Voltage 110V-240V 50/60Hz
Charging Current 200 mA (Nominal)
Lamp Type For All Lamps with Electronic Driver
Battery Li-cad Battery 3.7V/4.4Ah
Indicator Red LED - Charging, Green LED - Full Charging, Yellow LED - Battery Failure
Duration Time More than 3 hours
Construction Electro-Galvanized Steel Casing with High Reflectance Finished with Corrosion Resistant Epoxy Spray Coating
Weight 0.40kg
Working Temperature -10℃ to 55℃
Size 200mm×32mm×35mm (Body)
Customization Battery, Duration Time, Package
Indicator Status Guide
Red Green Yellow Light Off Status Description
Keep same condition Keep same condition Slow flash (1Hz) In flash (3Hz) Manual emergency test status
Keep same condition Keep same condition Flash (5Hz) Keep same condition Enter monthly auto-test status
Keep same condition Keep same condition Slow flash In flash Enter automatic detect status
Charging Battery fully charged, keep charging Battery aging, not reached Emergency time Battery open-circuit or short circuit LED Lighting connection problems or not applicable to power supply

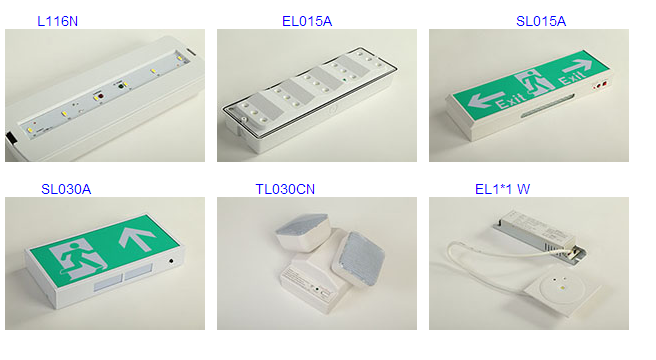

Product Gallery
110-220V 3-4 Watt Output CE Approved LED Emergency Conversion Kit with Self Test Function 110-220V 3-4 Watt Output CE Approved LED Emergency Conversion Kit with Self Test Function
