Specifications
Brand Name :
XINYI
Model Number :
YW-130G
Certification :
CE
Place of Origin :
China
MOQ :
1
Supply Ability :
1000pcs/month
Delivery Time :
5-8 work days
Packaging Details :
carton
Product name :
High Temperature Pressure Transmitter
Material :
SS
Output signal :
4~20mA
Measuring range :
-0.1MPa...0MPa~0.01MPa...160MPa
Pressure connector :
M20*1.5, G1/2, G1/4, NPT1/2, etc. (customized)
Ingress protection :
IP65-IP68(OEM)
Operating temp :
-30~80℃
Long term stability :
±0.2%FS/ year
Power supply :
10-30V 5V
Description

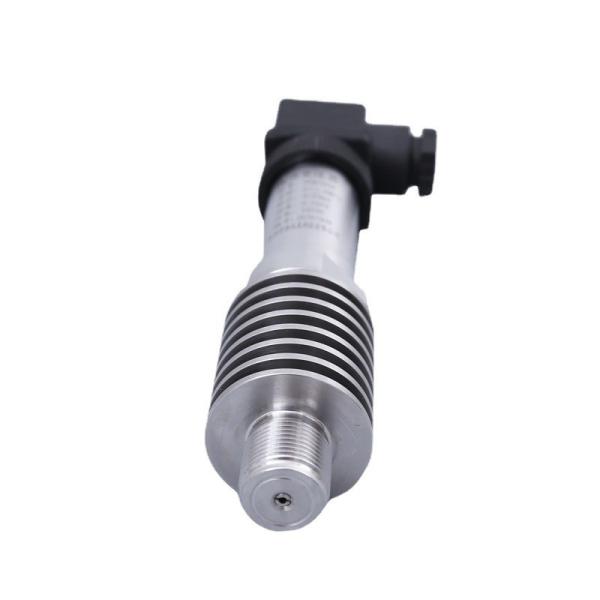

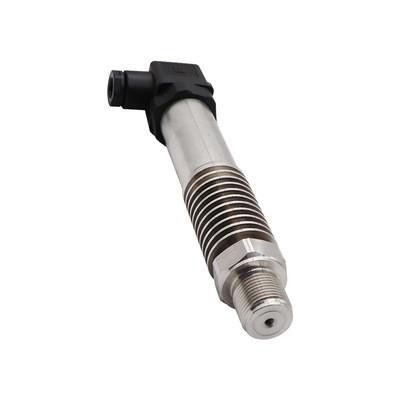

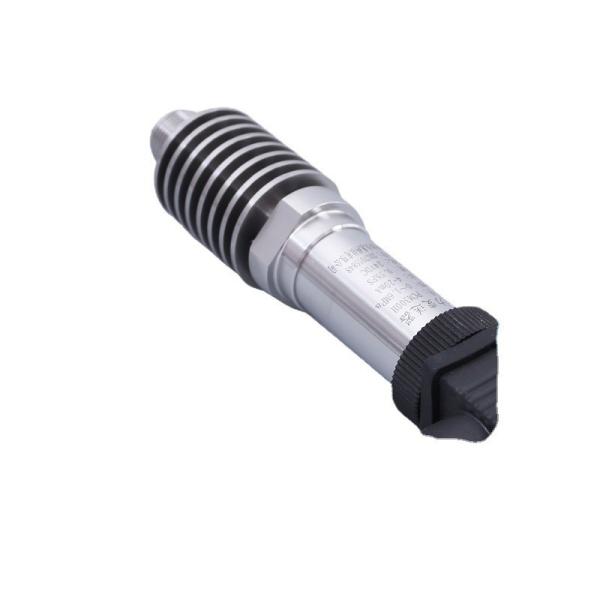

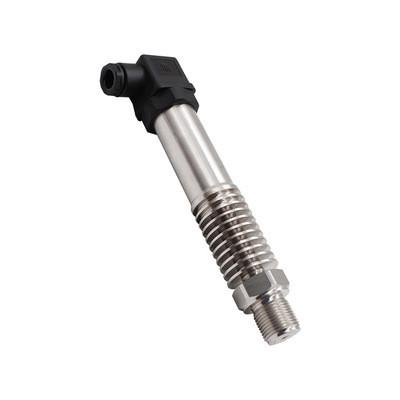

YW-130G Rod shaped High Temperature Pressure Transmitter With Heat Sink

The high-temperature pressure transmitter uses a high-temperature resistant pressure sensor as the signal measurement component. The pressure of the measured medium is transmitted to the sensor through the heat dissipation structure on the pressure transmitter. The high-precision signal processing circuit is located inside the stainless steel housing and converts the sensor output signal into a standard output signal.
The entire product has undergone strict testing and aging screening of components, semi-finished products, and finished products, with stable and reliable performance, enabling the product to work stably for a long time when used for high-temperature pressure measurement.
316L stainless steel isolation membrane；
Select imported high-temperature resistant chips；
Wide range of temperature medium used；
Strong anti-interference ability and good long-term stability；
Direct contact measurement of high-temperature media to increase pressure response frequency；
Provide multiple options for medium and high temperatures；
Anti vibration, anti impact, corrosion-resistant；
Product name High temperature resistant pressure transmitter
Range of measurement -100~20Kpa~100Mpa
Pressure type Gauge pressure, absolute pressure, sealing pressure
Output signal 4-20mA 0-5V 0-10V
Power supply 12-24VDC 9-12VDC
Accuracy 0.5% 0.2%
