Specifications
Brand Name :
XINYIYB
Model Number :
YWQ-1442
Place of Origin :
China
MOQ :
1PC
Payment Terms :
L/C,D/A,D/P,Western Union,T/T
Supply Ability :
100pcs/month
Delivery Time :
5-8 work days
Packaging Details :
Carton
Product Name :
Hydraulic Pressure Calibration Pump
Type :
Hydraulic
Minimum adjustable :
10Kpa
Pressure range :
0-60 Mpa (70Mpa)
Medium :
Water or Oil
Condition :
100% New
Material :
Stainless Steel
Application :
Process testing, Pressure Calibration
Description

Portable Hydraulic Pressure Calibration Pump 0-70Mpa Pressure Comparison Pump


Portable hydraulic pressure source is an important auxiliary equipment in the testing work of pressure instruments. It is used in conjunction with pressure standards to complete the calibration and testing of pressure instruments. It is easy to carry, not easy to leak, and requires less maintenance. It is mainly used for on-site or laboratory calibration of pressure (differential pressure) transmitters, precision pressure gauges, pressure sensors, pressure switches and other pressure instruments to provide stable pressure. The pressure pump uses a high-quality hydraulic pump as the pressure generating part, supplemented by an exquisitely designed fine-tuning, quick interface, and pressure-stabilizing valve. The advantages of simple operation, reasonable structure, good sealing performance, wide range pressure generating system, can be widely used in measurement, scientific research, industrial and mining enterprises and instrument manufacturing and other industries.


1. Measuring range: (0~70) MPa
2. Medium: purified water or 46 × hydraulic oil
3. Minimum controllable regulation: 10KPA

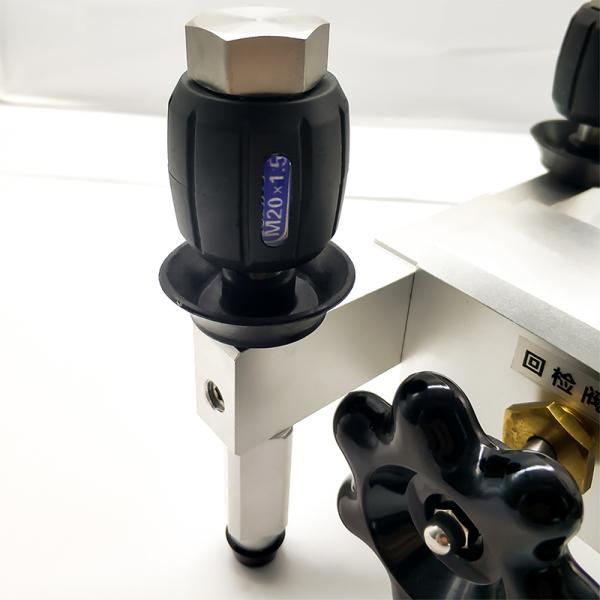

4. Interface size: 2 / M20 × 1.5 standard interfaces
5. Overall dimension: 45x29x28 CM
6. Weight: 7kg


Specification

Product Name

Portable Hydraulic Pressure Source

Model

YWQ-1442

Pressure Range

0-60 Mpa (70Mpa)

Material

Aluminum

Medium

Water or Oil

Structure

Manual

Dimension

450mm×290mm×280mm

Application

Calibration

Customized

OEM, ODM, OBM
