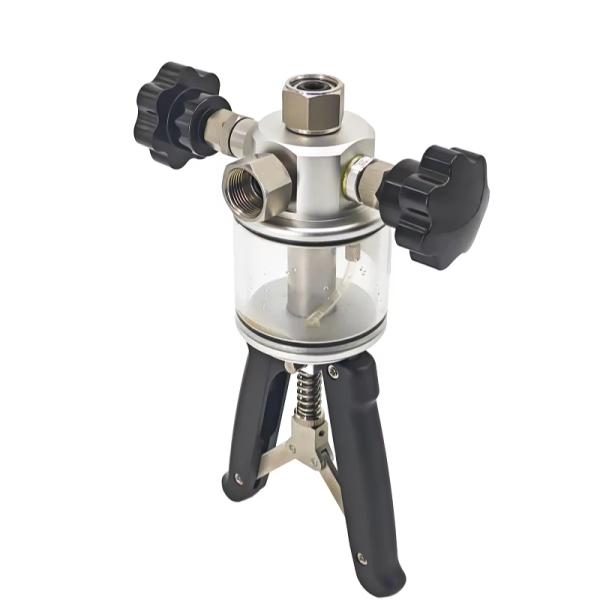

New 700bar High-Pressure Handheld High Pressure Pump Hydraulic Calibration Pump
New 700bar High-Pressure Handheld High Pressure Pump Hydraulic Calibration Pump
New 700bar High-Pressure Handheld High Pressure Pump Hydraulic Calibration Pump
New 700bar High-Pressure Handheld High Pressure Pump Hydraulic Calibration Pump
New 700bar High-Pressure Handheld High Pressure Pump Hydraulic Calibration Pump
New 700bar High-Pressure Handheld High Pressure Pump Hydraulic Calibration Pump
New 700bar High-Pressure Handheld High Pressure Pump Hydraulic Calibration Pump
New 700bar High-Pressure Handheld High Pressure Pump Hydraulic Calibration Pump
New 700bar High-Pressure Handheld High Pressure Pump Hydraulic Calibration Pump
New 700bar High-Pressure Handheld High Pressure Pump Hydraulic Calibration Pump
New 700bar High-Pressure Handheld High Pressure Pump Hydraulic Calibration Pump
New 700bar High-Pressure Handheld High Pressure Pump Hydraulic Calibration Pump
New 700bar High-Pressure Handheld High Pressure Pump Hydraulic Calibration Pump
New 700bar High-Pressure Handheld High Pressure Pump Hydraulic Calibration Pump
New 700bar High-Pressure Handheld High Pressure Pump Hydraulic Calibration Pump
New 700bar High-Pressure Handheld High Pressure Pump Hydraulic Calibration Pump
Specifications
Brand Name :
XINYIYB
Model Number :
YHP-70
Place of Origin :
China
MOQ :
1PC
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
100PCS/Month
Delivery Time :
5-8 work days
Packaging Details :
Carton
Product name :
Handheld High Pressure Pump
Type :
Hydraulic
Pressure Range :
0~700Bar
Feature :
Easy Operation
Temperature range :
0-40℃
Material :
SS
Medium :
Transformer Oil
Connector Thread :
M20* 1.5 thread
Application :
Pressure calibrator pump
Condition :
100% New
Description
New 700bar High-Pressure Handheld High Pressure Pump Hydraulic Calibration Pump
Hand pump pressure transmitter calibrator is a portable pressure pump. This pressure transmitter calibrator is for field installation of instrument calibration in the industrial process and control of indoor use all kinds of pressure gauges.This hand pump pressure calibrator also provide pressure source correction table for pressure measuring instrument manufacturer. The handheld pressure calibrator for all kinds of pressure transmitter within every 70 Mpa,Pressure sensor and all kinds of pressure gauges.

Structure and working principle
Ianual pressure pump has handle and piston rod It is composed ofbreathable bodypump cover, oil drain handle, fine-tuning handle, meter connector, etc Turn the oildrain handle to close the oil drain valve, and operate the pressure pump handle withhand shaking. Grip it with force and loosen it repeatedly, so as to drive the piston rodto move back and forth. The output pressure of0-70lvpa can be generated by thereciprocating motion of the piston rod for several times.

Specification
item
value
Place of Origin
China

Shaanxi
Type
Pressure calibrator pump
Warranty
1 Year
Customized support
OEM, ODM, OBM
Brand Name
XINYI
Model Number
YHP-70
Product name
Handheld High Pressure Pump
Type
Hydraulic
Pressure Range
0~700Bar
Feature
Easy Operation
Temperature range
0-40℃
Medium
Transformer Oil
Connector Thread
M20* 1.5 thread

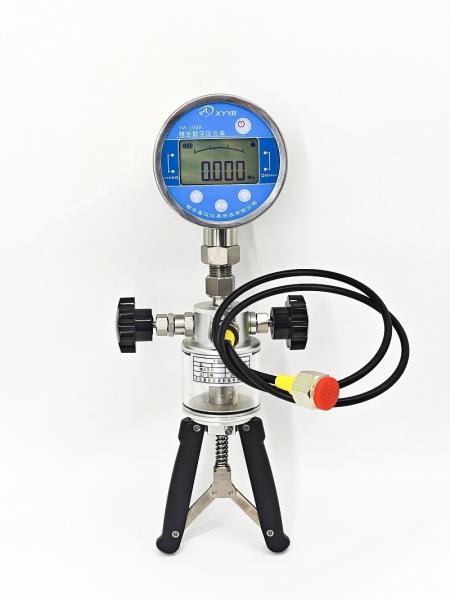

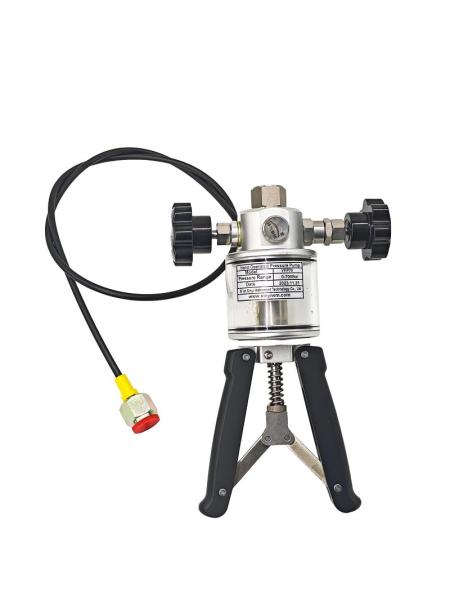

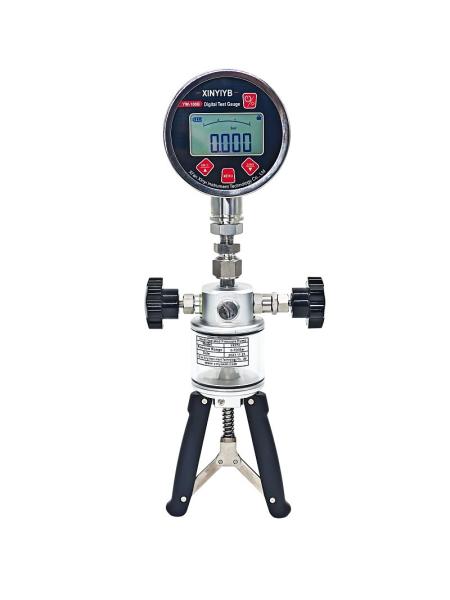

Detail images
New 700bar High-Pressure Handheld High Pressure Pump Hydraulic Calibration Pump
New 700bar High-Pressure Handheld High Pressure Pump Hydraulic Calibration Pump
