Red Colour Rig Floor Handling Tools API Sucker Rod Elevators GX Series
Red Colour Rig Floor Handling Tools API Sucker Rod Elevators GX Series
Red Colour Rig Floor Handling Tools API Sucker Rod Elevators GX Series
Red Colour Rig Floor Handling Tools API Sucker Rod Elevators GX Series
Red Colour Rig Floor Handling Tools API Sucker Rod Elevators GX Series
Red Colour Rig Floor Handling Tools API Sucker Rod Elevators GX Series
Red Colour Rig Floor Handling Tools API Sucker Rod Elevators GX Series
Red Colour Rig Floor Handling Tools API Sucker Rod Elevators GX Series
Specifications
Brand Name :
TIPTOP
Model Number :
GX series
Certification :
API
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
500 set per month
Delivery Time :
5~30 days
Packaging Details :
Seaworthy wooden box
Product Name :
Sucker Rod Elevators
Standard :
API
Model :
GX series
Material :
Carbon Steel
Elevator hole diameter :
30~38mm
Colour :
Red
Description

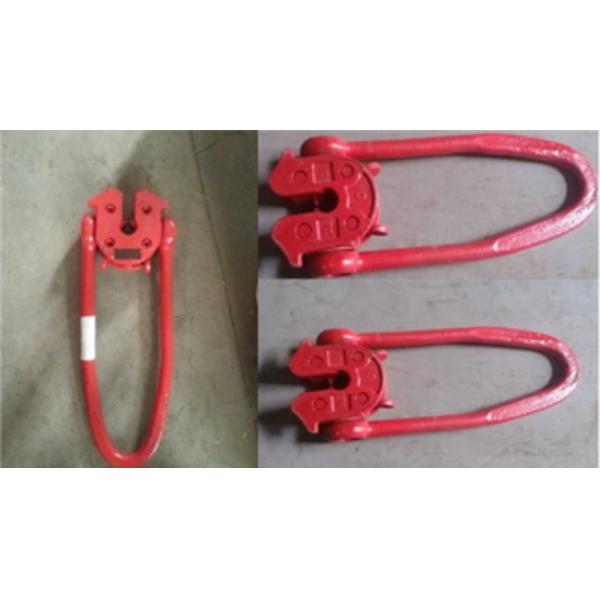

Rig Floor Handling Tools - API Sucker Rod Elevators GX series

Uses:

Sucker Rod Elevators Reed-style elevator to the main card and put the parts and so on, is suspended an important tool for rod holders. Tongue before and after pressure mounted on card body and can rotate around the round pin, before the tongue of a torsion spring mounted within, as long as tight at the same time by two after the tongue, the tongue can be a light before the card body to rotate, sucker freely through the openings holes into the card body, the tongue after the release at this time, before the resumption of the tongue will be back in situ,˨סsucker, sucker to prevent prolapse.

Technical Parameters

Specification Elevator hole diameter (mm) Rated load(KN) Applicable sucker rod
GX-23/147 36 147 3/8’’~3/4’’h
GX-26/147 36 147 3/4’’~7/8’’h
GX-30/147 30 147 7/8’’~1’’h
GX-36/200 36 200 34mm
GX-38/200 38 200 36mm
GX-33/147 33 147 1’’~1 1/8’’h

Red Colour Rig Floor Handling Tools API Sucker Rod Elevators GX Series
