2 3 /8 '' To 30 '' OD Casing Bushing , Solid Split Insert Bowls For Rotary Table
2 3 /8 '' To 30 '' OD Casing Bushing , Solid Split Insert Bowls For Rotary Table
2 3 /8 '' To 30 '' OD Casing Bushing , Solid Split Insert Bowls For Rotary Table
2 3 /8 '' To 30 '' OD Casing Bushing , Solid Split Insert Bowls For Rotary Table
2 3 /8 '' To 30 '' OD Casing Bushing , Solid Split Insert Bowls For Rotary Table
2 3 /8 '' To 30 '' OD Casing Bushing , Solid Split Insert Bowls For Rotary Table
2 3 /8 '' To 30 '' OD Casing Bushing , Solid Split Insert Bowls For Rotary Table
2 3 /8 '' To 30 '' OD Casing Bushing , Solid Split Insert Bowls For Rotary Table
Specifications
Brand Name :
TIPTOP
Model Number :
Casing Bushing
Certification :
Inspection Certificate
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
500 pc per month
Delivery Time :
5~30 days
Packaging Details :
seaworthy wooden box
Product Name :
Casing Bushing and Insert Bowl
Standard :
API 7K
Type :
Solid Split
Apply for :
Rotary Table
Material :
Alloy Steel
Model :
CU, CUL, CB
Description

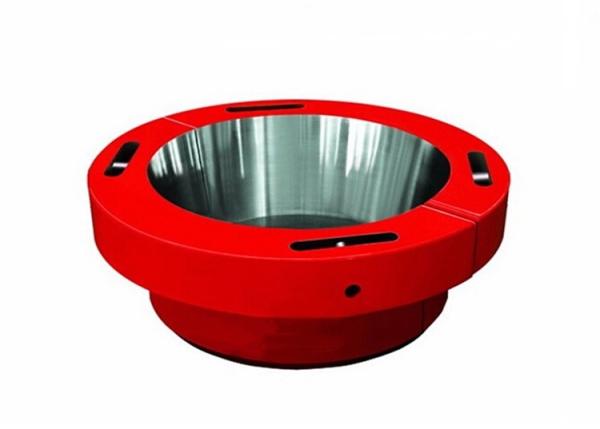

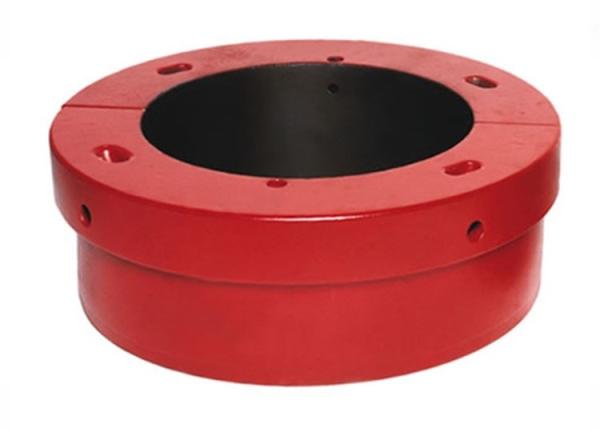

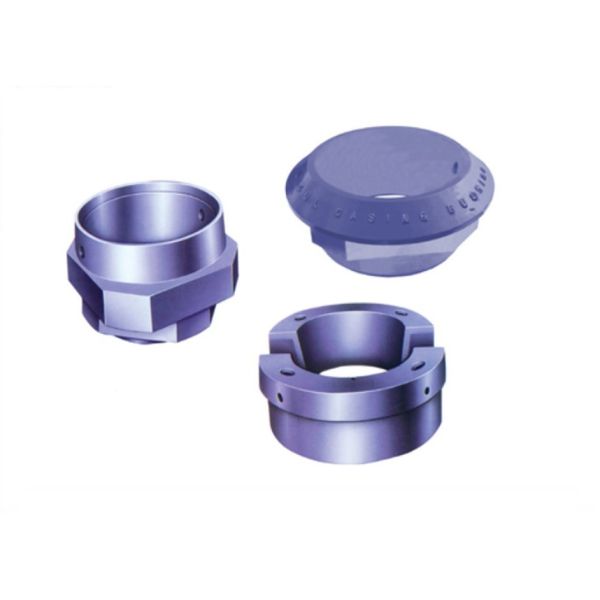

API 7K Casing Bushing for Handling Casings from 2 3/8'' to 30'' OD

Casing Bushings are designed to fit into the rotary table for perfect alignment with the well bore. All bushings are designed to be fitted with insert bowls to accommodate all pipe and casing sizes.

Our CU, CUL, CB casing bushings can handle casings from 2 3/8’’ to 30’’ OD. Type CU & CUL are solid bushings and type CB are split bushings. They are designed and manufactured according to API Spec 7K specification for drilling and well servicing equipment.

Rotary Table Size Model Tubular OD (in)
2 3/8-8 5/8 9 5/8-10 3/4 11 3/4-13 3/8 16 18 5/8-20 24 26 30
17 1/2-20 1/2 CU Bushing 3102 Bushing 3102 Bushing3102 / / / / /
Insert Bowl 1809 Insert Bowl 1902
27 1/2 CUL Bushing 3103 Bushing 3103 Bushing 3103 Bushing3103 Bushing 3103 / / /
Insert Bowl 3105+1809 Insert Bowl 3105+1902 Insert Bowl 3105 Insert Bowl 3104
27 1/2 CB Bushing 6695 Bushing 6695 Bushing6695 Bushing6695 Bushing 6695 / / /
Insert Bowl 6126+6115 Insert Bowl 6126+6114 Insert Bowl 6126 Insert Bowl 6127
37 1/2 Bushing 10187 Bushing 10187 Bushing10187 Bushing10187 Bushing 10187 Bushing 11253 Bushing 16454 Bushing 11763
Insert Bowl 6126+6115 Insert Bowl 6126+6114 Insert Bowl 6126A Insert Bowl 6127

2 3 /8 '' To 30 '' OD Casing Bushing , Solid Split Insert Bowls For Rotary Table
