Specifications
Brand Name :
TIPTOP
Model Number :
Mud Cleaner
Certification :
Inspection Certificate
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
500 sets per month
Delivery Time :
15~30 days
Packaging Details :
wooden pallet
Product :
Drilling Fluid Mud Cleaner
Apply for :
Solid Control System
Type :
Linear Motion
Vibrating Strength :
7.5G
Capacity :
396·1320GPM
Feature :
Large Handling Capacity
Description

Second and Third Phase Solid Control Equipment Drilling Fluid Mud Cleaner

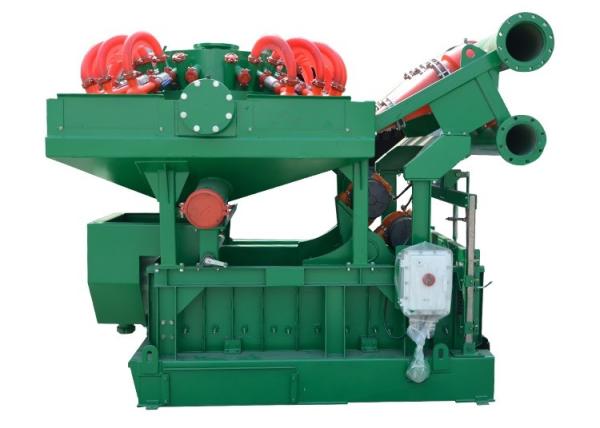

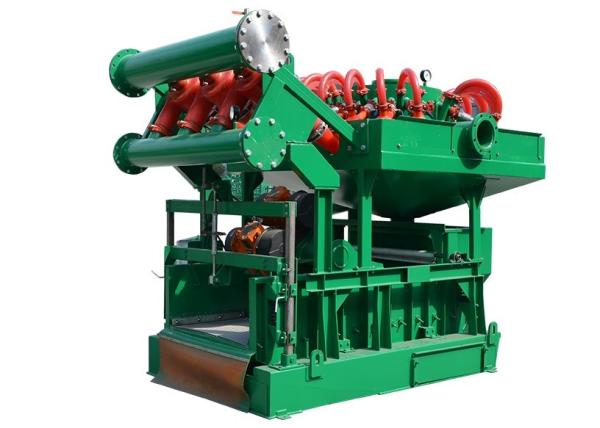

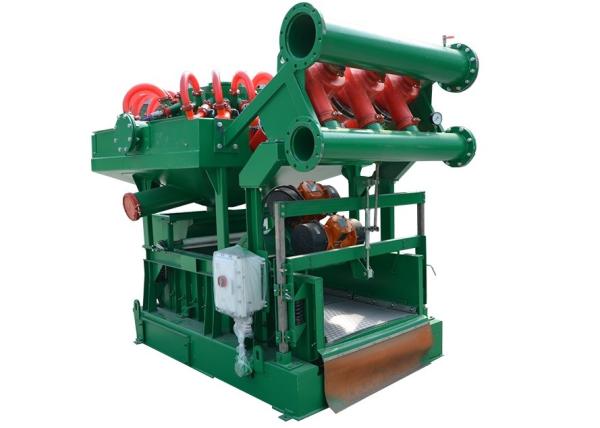

Mud Cleaner is the second class and the third class solid control equipment which are combined from desander , desilter and underflow screen to treat the drilling fluid . It occupies small space and the function is powerful. Mud cleaner is the ideal device of the second class and the third class solid control to treat the drilling mud.

Multi-functional mud cleaners are designed to be combined with desander, desilter , pressure pump, the bottom slot, an Underflow shale shake, a bracket and a base .

Our mud cleaners use the most advanced mud cleaner production process, to ensure the production of powerful, compact structure, convenient operation, easy maintenance of drilling fluid mud cleaner.

The integrated cleaner can integrate a group of desander and desilter on one shale shaker, the drilling fluid firstly pass the desander or desilter for separation, with overflow returning to the circulatory system and the bottom flow screened and treated by the shale shaker, if necessary, the shale shaker of the integrated cleaner could be used as the forestage shale shaker.

1. The mud cleaner main body structure used on the two block layout, cyclone desander, desilter arrangement on the upper base is provided with a chute, chute arranged on shale shaker, which has the advantage of compact structure, occupies small space area.
2. The desander and desilter main inlet pipe and outlet pipe are arranged between the control valve, can adjust the desander and desilter work quantity, simple operation, easy maintenance.
3. The cyclone mixer is made of wear-resistant special polyurethane material, which has good performance in fluid erosion resistance.
4. The feeding port tangential feeding and smooth transition, beneficial for improved separation efficiency. Inside surface smooth and rational flow channel.
5. Cyclone desander, cyclone desilter are equipped with automatic sand plugging device and bottom outlet adjusting device.
6. According to user needs to configure different number of cyclone for desander and desilter.

Mud Cleaner Parameters

Model QJ250×1/100×6 QJ250×1/100×8 QJ250×2/100×12 QJ300×2/100×16
Treating Capacity 90m3/h 120m3/h 240m3/h 300m3/h
396GPM 528GPM 1056GPM 1320GPM
Separation Size 15-75μm
Desander Cones 10"(250)×1 10"(250)×1 10"(250)×2 12"(300)×2
Desilter Cones 4"(100)×6 4"(100)×8 4"(100)×12 4"(100)×16
Inlet Diameter DN150
Outlet Diameter DN200
Pressure 0.25～0.40MPa
Matching Pump SB5×4-12 DCSB6×5-12 SB8×6-13 SB8×6-13
-22kW -30kW -55kW -55kW
Matching Shaker Model ZS850-2K ZS700-3G ZS630-3K
Vibrating Model Linear Motion
Motor Power 2×1.5kW 2×1.5kW 2×1.5kW
Screen Qty 2 panel 3 panel 3 panel
Screen Specification 850×1250mm×2 panel, 120～300mesh 700×1050mm×3 panel, 120～300mesh 630×1250mm×3 panel, 120～300mesh
Screen Area 2.12m2 2.2 m2 2.36 m2
Screen Type Steel Frame Hookstrip Steel Frame
Electric Specs 380V/50HZ or 460V/60HZ or Customized
EX Standard Ex dⅡBT4
Dimension 2530×1750×2210 mm 2530×1750×2210 mm 2530×1750×2210 mm 2530×1750×2210 mm
Weight 1780kg 2080kg 2200kg 2350kg
Remark 1. 4" Cones =10～20m3/h, 10" Cones =90~120m3/h, 12" Cones＞120m3/h
2. The motor power of centrifugal pump chosen is according to drilling mud specific gravity 1.2g/cm3
