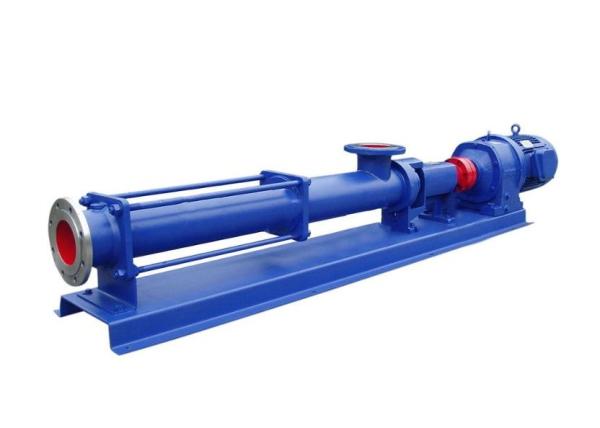

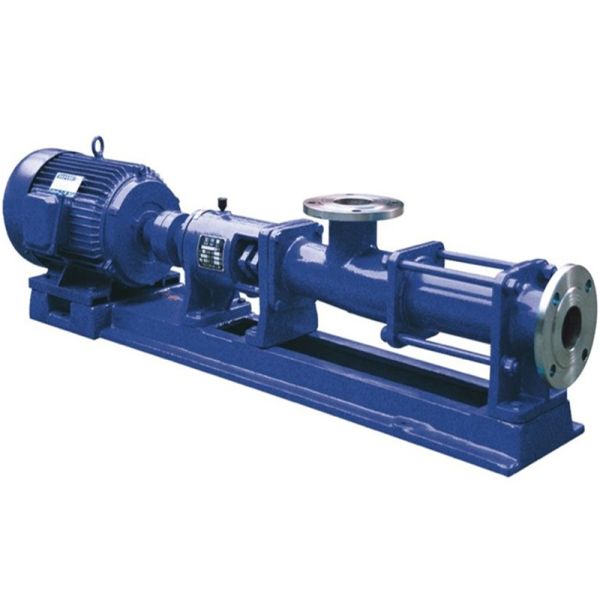

Petroleum Drilling Oil Rig Equipment Slurry Feeding Screw Pump High Suction Capacity
Petroleum Drilling Oil Rig Equipment Slurry Feeding Screw Pump High Suction Capacity
Petroleum Drilling Oil Rig Equipment Slurry Feeding Screw Pump High Suction Capacity
Petroleum Drilling Oil Rig Equipment Slurry Feeding Screw Pump High Suction Capacity
Petroleum Drilling Oil Rig Equipment Slurry Feeding Screw Pump High Suction Capacity
Petroleum Drilling Oil Rig Equipment Slurry Feeding Screw Pump High Suction Capacity
Petroleum Drilling Oil Rig Equipment Slurry Feeding Screw Pump High Suction Capacity
Petroleum Drilling Oil Rig Equipment Slurry Feeding Screw Pump High Suction Capacity
Petroleum Drilling Oil Rig Equipment Slurry Feeding Screw Pump High Suction Capacity
Petroleum Drilling Oil Rig Equipment Slurry Feeding Screw Pump High Suction Capacity
Petroleum Drilling Oil Rig Equipment Slurry Feeding Screw Pump High Suction Capacity
Petroleum Drilling Oil Rig Equipment Slurry Feeding Screw Pump High Suction Capacity
Specifications
Brand Name :
TIPTOP
Model Number :
Screw Pump
Certification :
Inspection Certificate
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
500 sets per month
Delivery Time :
15~30 days
Packaging Details :
wooden pallet
Product :
Screw Pump
Apply for :
Solid Control System
Speed :
420~960rpm
Feature :
Strong Adaptability
Pressure :
0.6MPa
Flow :
12~70m3/h
Description

Screw pump is an ideal equipment used for feeding slurry for decanter centrifuge in solids control system.

Features

  1. This pump has a strong adaptability to medium, smooth flow, small pressure fluctuation and high suction capacity.
  2. With unique design of rotor and stator, low rate of pump internal flow and more stable pressure.
  3. Screw and machine body are made of stainless steel material which is corrosion resistant and has a long service life .
  4. With few spare parts, simple maintenance, easy to be replaced and maintained , compact structure and small footprint.

Screw Pump Parameters

Model Flow Pressure Speed Power Motor pole logarithmic Inlet flange Outlet flange Dimension weight
m3/h (Mpa) (rpm) (kw) (DN) (DN) (mm) (kg)
DCG40-1 12 0.6 960 4 6 80 65 1500×320×550 250
DCG50-1 20 0.6 960 5.5 6 100 80 1550×340×562 280
DCG60-1 30 0.6 960 11 6 125 100 1810×370×600 360
DCG70-1 40 0.6 720 11 8 150 125 2210×420×700 420
DCG85-1 50 0.6 585 15 4 150 125 2100×420×700 590
DCG105-1 60 0.6 360 18.5 4 200 150 2530×420×700 650
DCG105-1 70 0.6 420 18.5 4 200 150 2530×420×700 650
Remark 1.The motor power of centrifugal pump choosed is according to drilling mud specific gravity 1.2g/cm3.
2.Certificate: Ex dⅡ BT4.

Petroleum Drilling Oil Rig Equipment Slurry Feeding Screw Pump High Suction Capacity
