Hydraulic Drilling Jar Intensifier , Drilling Accelerator Downhole Fishing Tool
Hydraulic Drilling Jar Intensifier , Drilling Accelerator Downhole Fishing Tool
Hydraulic Drilling Jar Intensifier , Drilling Accelerator Downhole Fishing Tool
Hydraulic Drilling Jar Intensifier , Drilling Accelerator Downhole Fishing Tool
Hydraulic Drilling Jar Intensifier , Drilling Accelerator Downhole Fishing Tool
Hydraulic Drilling Jar Intensifier , Drilling Accelerator Downhole Fishing Tool
Hydraulic Drilling Jar Intensifier , Drilling Accelerator Downhole Fishing Tool
Hydraulic Drilling Jar Intensifier , Drilling Accelerator Downhole Fishing Tool
Specifications
Brand Name :
TIPTOP
Model Number :
Drilling Accelerator
Certification :
Inspection Certificate
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
200 pcs per month
Delivery Time :
15-60 days
Packaging Details :
seaworthy wooden box
Size :
4 3/4''~8''
Max. Temperature :
120°C
Connection :
API
Sealing Pressure :
20 MPa
Product Name :
Hydraulic Jar Intensifier
Functuion :
Downhole Fishing Jar Tool
Description

Hydraulic Jar Intensifier, Drilling Accelerator Downhole Fishing Tool,downhole oil tools

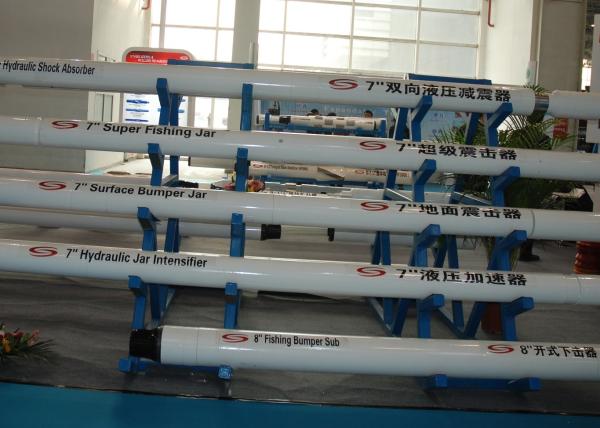

Hydraulic jar intensifier, drilling accelerator is a kind of down hole fishing jar tool designed to increase jarring function for up jar. So it must be used together with super fishing jar. It could accelerate for the top end of jar and the drill collar connecting with its bottom end when working, so to get larger jarring force on stuck point, and reduce quake of drill stem spring back after jarring at the same time.

We also produce H2S resistance Jars, which adopt high quality import sulfur-resistance material.

Please contact us for your drililng accelerator inquiries.

Specification

OD
mm(inch)		 ID
mm(inch)		 Stroke
mm(inch)		 Max. tensile load in down hole (KN) Sealing pressure
(MPa)		 Max. working temperature (°C) Connection
API		 Overall length
mm(inch)
121(4 3/4) 38 (1 1/2) 224 (8 3/4) 0.9 20 120 NC38 3275(129)
159(6 1/4) 57.2 (2 1/4) 329 (13) 1.5 20 120 NC50 4380(172)
165(6 1/2) 57.2 (2 1/4) 329 (13) 1.5 20 120 NC50 4380(172)
178(7) 60 (2 5/16) 336 (13 1/4) 1.8 20 120 5 1/2FH 3740(147)
197 (7 3/4) 76.2(3) 333 (13 1/8) 2.1 20 120 6 5/8REG 4238(167)
203(8) 76.2(3) 333 (13 1/8) 2.2 20 120 6 5/8REG 4238(167)
