Specifications
Brand Name :
TIPTOP
Model Number :
Integral Blade
Certification :
Inspection Certificate
Place of Origin :
China
MOQ :
1pc
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Delivery Time :
10-60 days
Packaging Details :
steel rack
Hardfacing :
HF1000, HF2000, HF3000, HF4000
Material :
Non-magnetic material
Crown OD :
up to 26''
Type :
Drill String; Near Bit
Product Name :
Non-Magnetic Stabilizer
Apply For :
Drilling Tools Stabilize
Description

Downhole Drilling Integral Blade Non Magnetic Stabilizer, Up to 26'' Crown OD

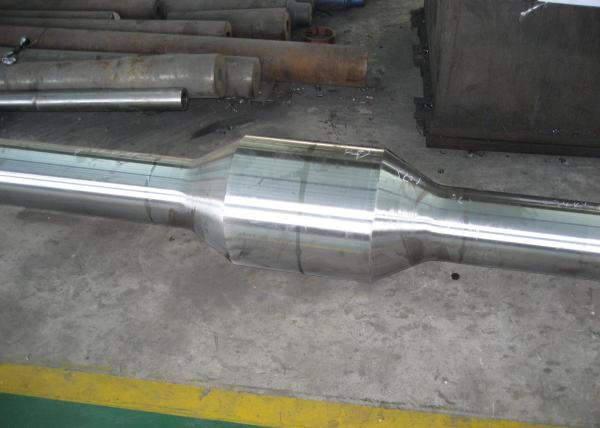

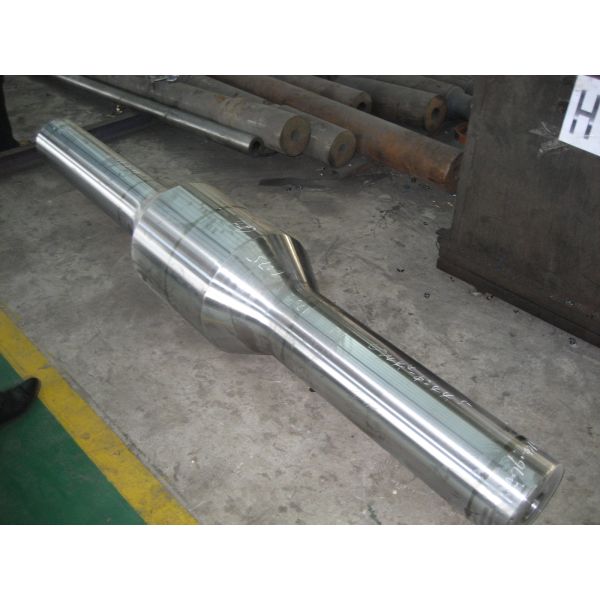

Tiptop integral non magnetic stabilizer is made from one solid forging of non magnetic steel. The material is high purity Chromium Manganese Austenitic stainless steel.

Ultrasonic inspection and MPI inspections are performed on each forging over its full length and section, after rough machining according to API Spec 7-1. Mill test certificates including mechanical properties, chemical analysis, magnetic properties and inspections are supplied with all stabilizers.

We have the capacity to produce Non Magnetic Stabilizer up to Crown OD 26’’.

Mechanical Properties:

Tensile Strength Yield Strength Hardness Magnetic Permeability
min. min. min. Max. Average
120KSI 100KSI 285HB 1.01 1.005

When ordering, please specify:

1. Type of Stabilizer (String or Near Bit)

2. Crown OD / Hole Size

3. Fishing Neck OD and Length

4. Wall Contact Length

5. Blade Width

6. Tong Length

7. Angle from Crown to Neck

8. Overall Length

9. Hardfacing Type

10. Material

Specification

Crown OD Neck OD ID Neck Length Crown Length Overall Length Blade Width Angle (°) Radius
8 1/2 6 1/2 2 13/16 30 18 100 2 3/8 30 30 4
12 1/4 8 1/4 2 13/16 30 18 100 3 1/2 30 30 4
14 3/4 8 1/2 2 13/16 30 20 100 3 1/2 30 30 4
14 3/4 9 1/2 3 30 20 100 3 1/2 30 30 4
16 9 1/2 3 30 20 100 3 1/2 30 30 4
17 1/2 9 1/2 3 30 20 100 3 1/2 30 30 4
22 9 1/2 3 30 24 116 4 45 30 4
26 9 1/2 3 30 24 116 4 45 30 4
