Vertical Well Downhole Drilling Tools Mechanical Drilling Jar H2S Resistance
Vertical Well Downhole Drilling Tools Mechanical Drilling Jar H2S Resistance
Vertical Well Downhole Drilling Tools Mechanical Drilling Jar H2S Resistance
Vertical Well Downhole Drilling Tools Mechanical Drilling Jar H2S Resistance
Specifications
Brand Name :
TIPTOP
Model Number :
BZ
Certification :
Inspection Certificate
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
500 pcs per month
Delivery Time :
15-60 days
Packaging Details :
Seaworthy Wooden Box
Size :
4 3/4''~8''
Connection :
NC38, NC50
Special Jar :
H2S resistance
Working Torque :
20 KN.m
Product Name :
Mechanical Drilling Jar
Usage :
Releasing Stuck Tool
Application :
Vertical Well, Deep Well, Directional Well
Description

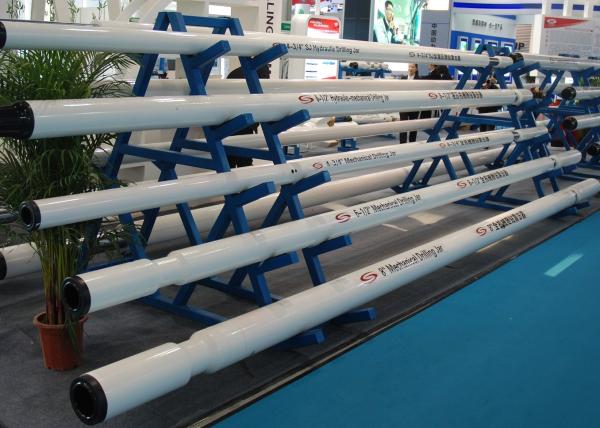

Vertical Well Downhole Drilling Tools, Mechanical Drilling Jar

Mechanical drilling jar is a full mechanical type drilling jar and releasing stuck tool. It integrates upward jarring with downward jarring releases the tight pull or the sticking or other drilling troubles during drilling. It is a part of drill stem when it needn't jarring and it can work at anytime when need jarring. Thus increasing the work efficiency.

It has wide load ( jarring force) scope of the upward jarring and the downward jarring, so it can be adjusted at the maintenance stations or on the well sites according to the requirements. The special flexible joint can reduce the flexural stress of the drilling jar body efficiently. So it is the first selected drilling jar for vertical well, deep well, directional well and complicated well operations.

We also produce H2S resistance jars, which adopt high quality imported sulfur-resistance material.

Welcome to contact us for your mechanical drilling jar inquiries.

Specification

OD mm (inch) 121 (4 3/4) 165 (6 1/2)/159 (6 1/4) 203 (8)/197 (7 3/4)
ID mm (inch) 50.8 (2) 57.2 (2 1/4) 71.4 (2 13/16)
OAL mm (inch) (Locking place) 6370 (251) 7015 (276) 7310 (288)
Upper stroke mm (inch) 210 (8 1/4) 142 (5 9/16) 145 (5 1/16)
Lower stroke mm (inch) 197 (7 3/4) 172 (6 3/4) 178 (7)
Connection API NC38 NC50 6 5/8REG
Max. tensile load (MN) 1.4 2.2 2.5
Max. working torque (KN.m) 13 15 20
Upward jarring force (KN) 450 630 820
Downward jarring force (KN) 230 360 460
Pumping area (cm2) 62 100 174
