High Rigidity Oil Well Drilling Tools Downhole Jarring Tool Two Way Shock Sub
High Rigidity Oil Well Drilling Tools Downhole Jarring Tool Two Way Shock Sub
High Rigidity Oil Well Drilling Tools Downhole Jarring Tool Two Way Shock Sub
High Rigidity Oil Well Drilling Tools Downhole Jarring Tool Two Way Shock Sub
Specifications
Brand Name :
TIPTOP
Model Number :
SJ
Certification :
Inspection Certificate
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
500pcs per month
Delivery Time :
5-60 days
Packaging Details :
seaworthy wooden box
Size :
4 3/4''~11''
Connection :
API
Rigidity :
3.0~5.0 kN/cm
Tool Name :
Two Way Shock Sub
Mounting Position :
Near Bit Drill String
Function :
Prolong Drill String Life
Description

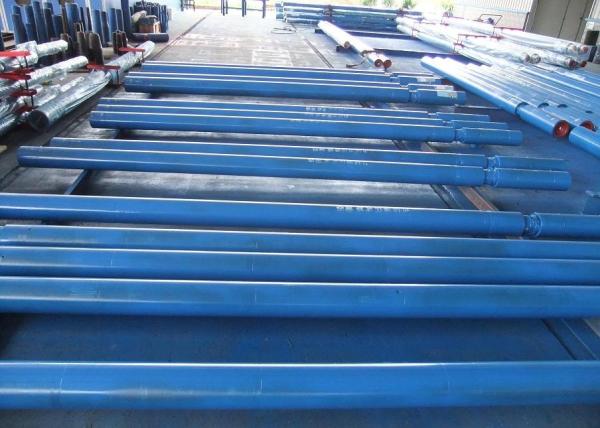

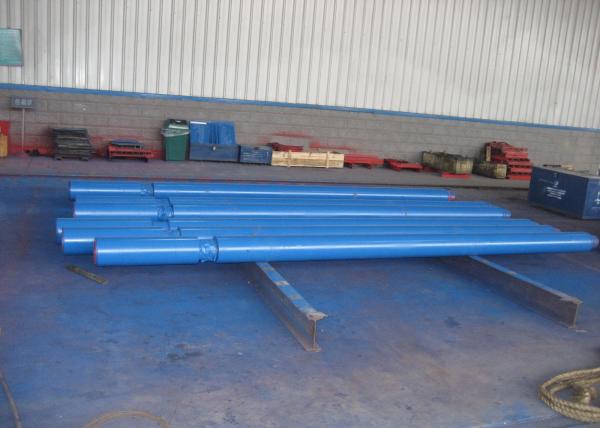

Downhole Jarring Tool Two Way Shock Sub, Shock Absorber 4 3/4''~11''

Two-Way Shock Sub should be mounted on drill string which is near the bit. It can slow or sorbs the longitudinal bounce and peripheral torque impact of drill bit (drill string) simultaneously. It should realize the best fitting of drill pressure and rotation rate as to reduce the drill cost and improve the drilling efficiency. It can be used for the drill-in or coring of hard layer, gravel layer and soft-hard interlayer. It is an effective shock absorbing device, so that it helps to reduce drill string connection fatigue and prolong drill string life. It can be used to reduce or eliminate both transversal and longitudinal vibration of drill string, thus it helps maintain normal weight-on-bit (WOB) and torque.

Welcome to contact us for your two way shock sub inquiries.

OD
mm (in)		 ID
mm (in)		 Connection
API		 Max. Working Load
kN(lbf)		 Max. Working Torque
kN·m(lbf·ft)		 Max. Drill Pressure kN(lbf) Working Stroke
mm (in)		 Rigidity
kN/cm		 Length
mm (in)
121
(4 3/4)		 38.1
(1 1 /2)		 NC38 1000
(224800)		 10
(7300)		 300
(67000)		 100
(3 15/16)		 3.0～5.0 4208
(165 5/8)
159
(6 1/ 4)		 48
(1 7/8)		 NC46 1500
(337200)		 15
(11000)		 350
(78600)		 120
(4 3 /4)		 5494
(216 1/4)
165
(6 1/2)		 48
(1 7/8)		 NC46 1500
(337200)		 15
(11000)		 350
(78600)		 120
(4 3 /4)		 5494
(216 1/4)
178
(7)		 57.2
(2 1/4)		 NC50 1500
(337200)		 15
(11000)		 350
(78600)		 120
(4 3 /4)		 5735
(225 3/4)
203
(8)		 65
(2 1/2)		 6 5/8REG 2000
(449000)		 20
(14000)		 450
(101000)		 120
(4 3 /4)		 6080
(239 3/8)
229
(9)		 71.4
(2 3/4)		 7 5/8REG 2000
(449000)		 20
(14000)		 540
(121000)		 140
(5 1/4)		 6080
(239 3/8)
254
(10)		 71.4
(2 3/4)		 8 5/8REG 2500
(562000)		 25
(18000)		 600
(134000)		 120
(4 3 /4)		 6400
(251 15/16)
279
(11)		 76.2
(3)		 8 5/8REG 3000
(674000)		 30
(22000)		 600
(134000)		 160
'(6 1/4)		 5580
(219 11/16)
