Specifications
Brand Name :
TIPTOP
Model Number :
Elevator Link
Certification :
Inspection Certificate
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
1000 pc per month
Delivery Time :
5~30 days
Packaging Details :
seaworthy wooden box
Product Name :
Welded Link
Capacity :
40~750 tons
Standard :
API 8A/8C
Key Word :
Double Armed Elevator
Model :
DH, SH
Material :
Alloy Steel
Description

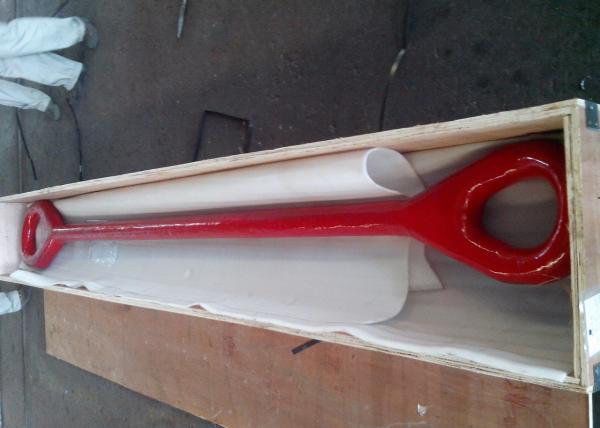

Rig Floor Handling Tool Elevator Link, Weldless One Arm & Double Arm Links

Weldless elevator links are forged with high quality alloy steel. Elevator links can work in pairs. The elevator link upper eye is used for the hook link ear, and the elevator link lower eye is used for the elevator

They are designed and manufactured according to API Spec 8A/8C specification for drilling and production hoisting equipment.

· Adopted high-quality alloy steel and throughout swaged forging process.

· Designed factor is 2.25-3

· WORKING LOAD LIMIT: 75~500 USton.

· Both the ends are shape by swaged forging process, the pole is pulled by open forging

· Special Heated Treated.

· Every link be NDE checking.

· Every link test by 1.5 rate work load before deliver.

· There are signs such as WORKING LOAD LIMIT in the link.

· It is applicable for drilling operation for deep well and super-deep well.

· Couple use

Weldless Elevator Link Rig Floor Handling Tools Weldless One Arm & Double Arm Links

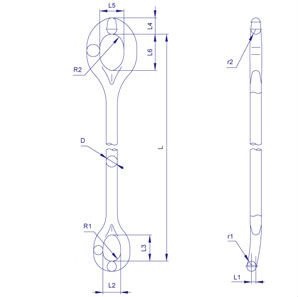

Type Model Connecting Sizes between elevator link lower ears and elevators (mm) Connecting Sizes between elevator link upper ears and drilling hooks (mm) L (mm) Rated Capcity (ton)
r1≤ R1≥ l1≥ l2≥ l3≥ r≤ R2≥ l4≤ l5≥ l6≥

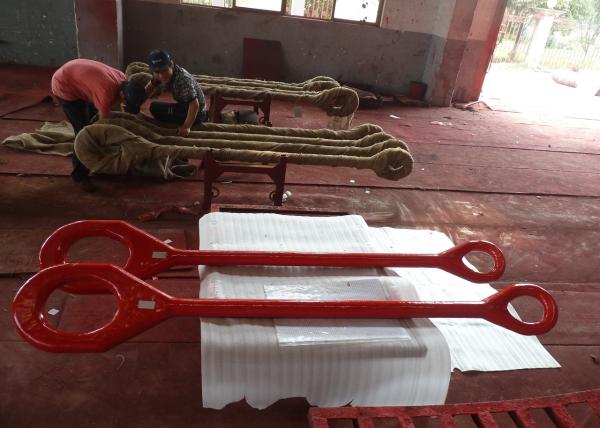

One-Armed Weldless Links DH40 20 51 20 100 150 22 38 60 120 180 1200 40
DH65 22 51 20 100 150 22 64 70 120 180 1100 65
DH100 22 51 20 100 150 29 64 80 140 190 1500 100
DH150 24 51 25 100 150 29 64 100 140 210 1800 150
DH250 31 70 30 140 200 35 102 140 200 250 2700 250
DH350 37 70 35 140 200 35 102 140 200 250 3300 350
DH500 48 83 50 170 250 48 121 160 240 300 3600 500
DH750 57 127 50 190 318 63 127 190 262 305 3660 750
Type Model Connecting Sizes between elevator link lower ears and elevators (mm) Connecting Sizes between elevator link upper ears and drilling hooks (mm) L (mm) Rated Capcity (ton)
r1≤ R1≥ l1≥ l2≥ - r≤ R2≥ l3≤ l4≥ -

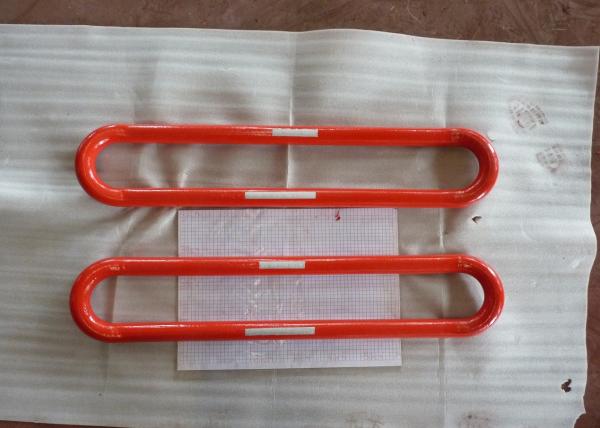

Two Armed Perfection Links SH25 15 29 20 58 - 22 38 35 90 - 600 25
SH40 20 51 20 100 - 22 38 45 100 - 1100 40
SH65 22 51 20 100 - 22 64 65 120 - 1100 65
SH75 22 51 20 100 - 29 64 75 160 - 1500 75
SH100 22 51 25 100 - 29 64 80 160 - 1500 100
SH150 24 51 25 100 - 29 64 100 160 - 1700 150
